Ground distribution

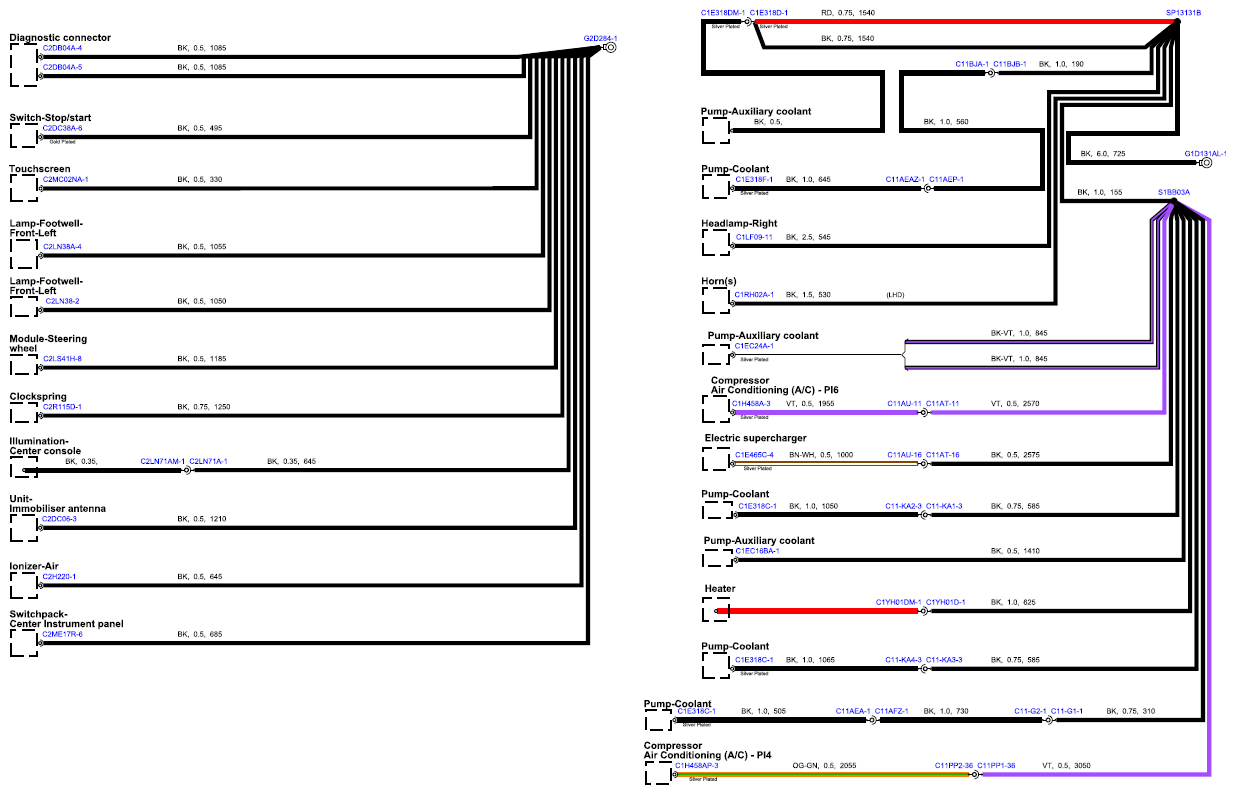

Fig 1: Ground Distribution Circuit Diagram (Sheet 1)

G15554415

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

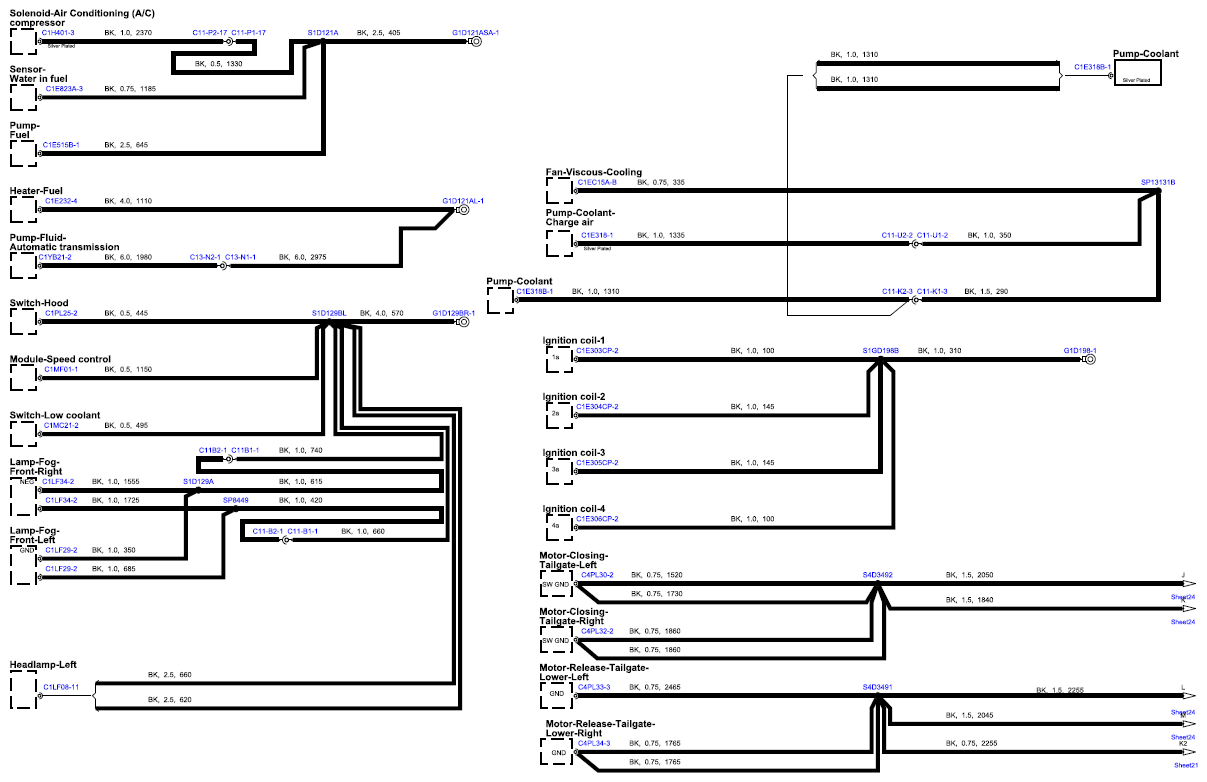

Fig 2: Ground Distribution Circuit Diagram (Sheet 2)

G15554416

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

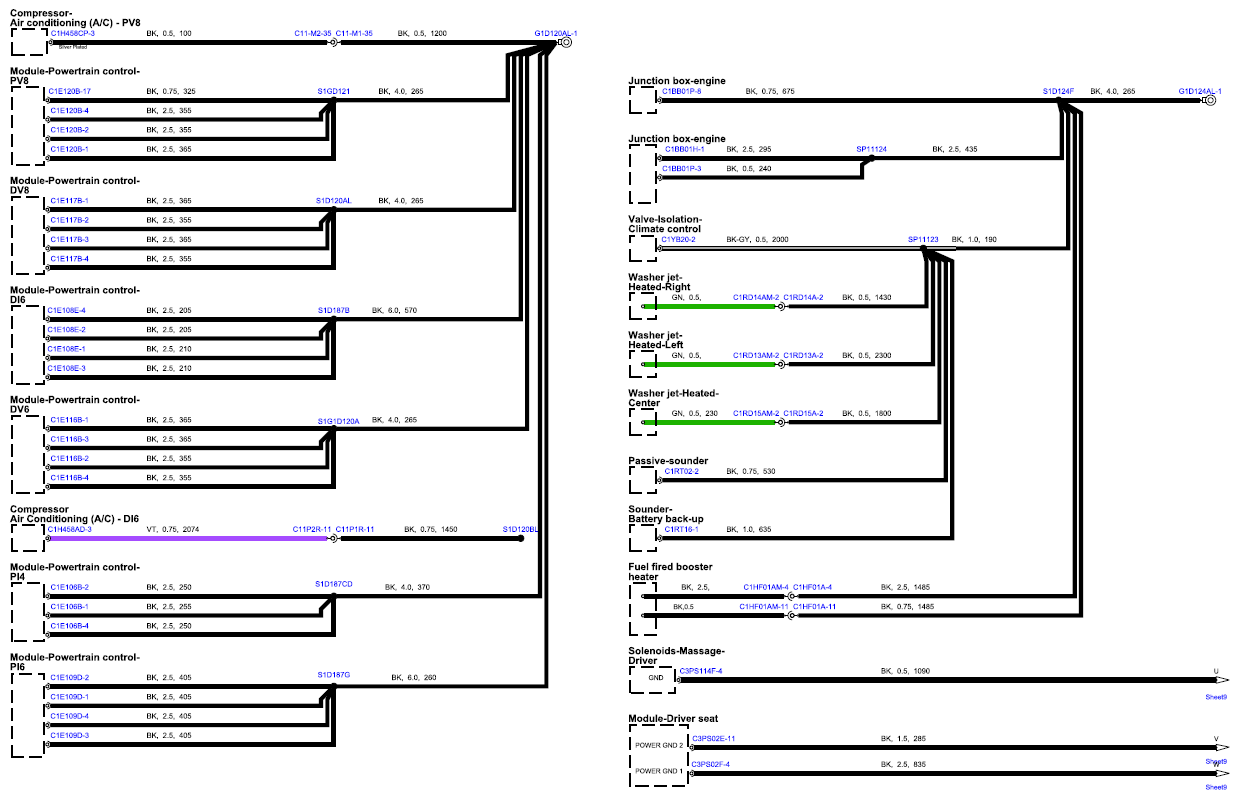

Fig 3: Ground Distribution Circuit Diagram (Sheet 3)

G15554417

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

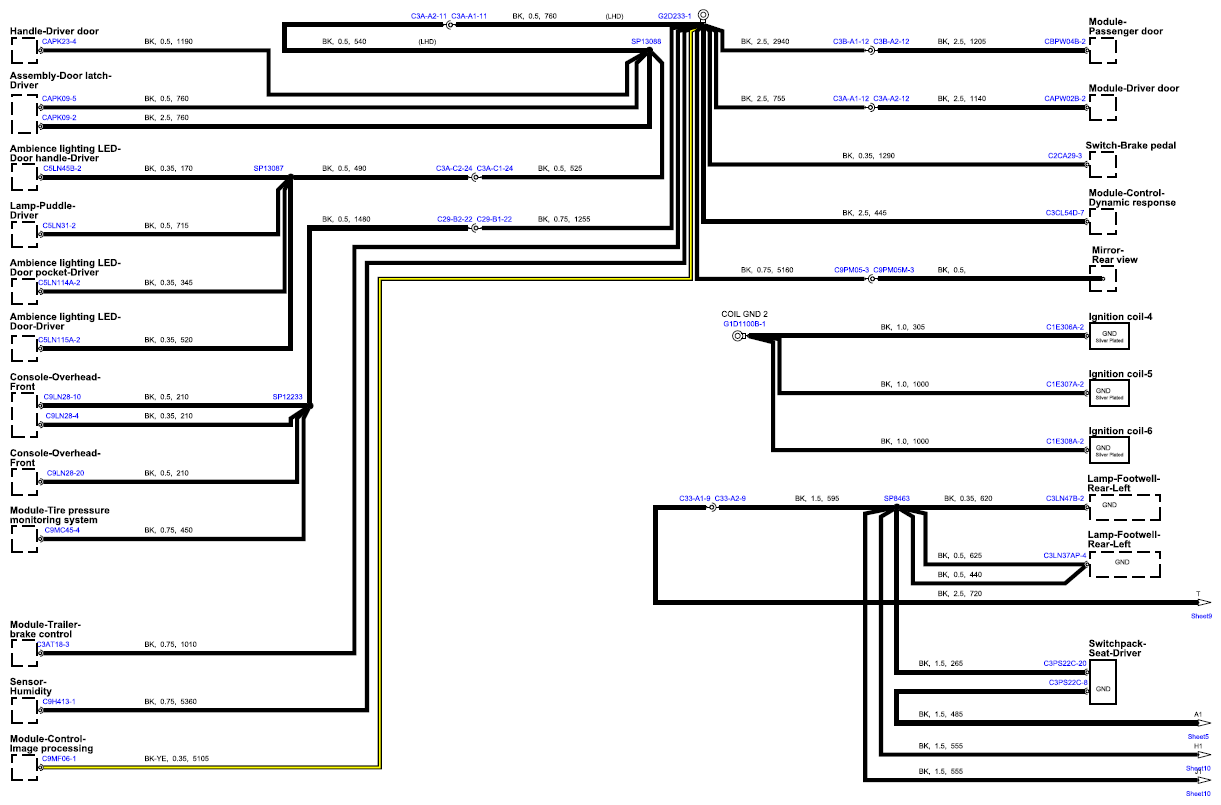

Fig 4: Ground Distribution Circuit Diagram (Sheet 4)

G15554418

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

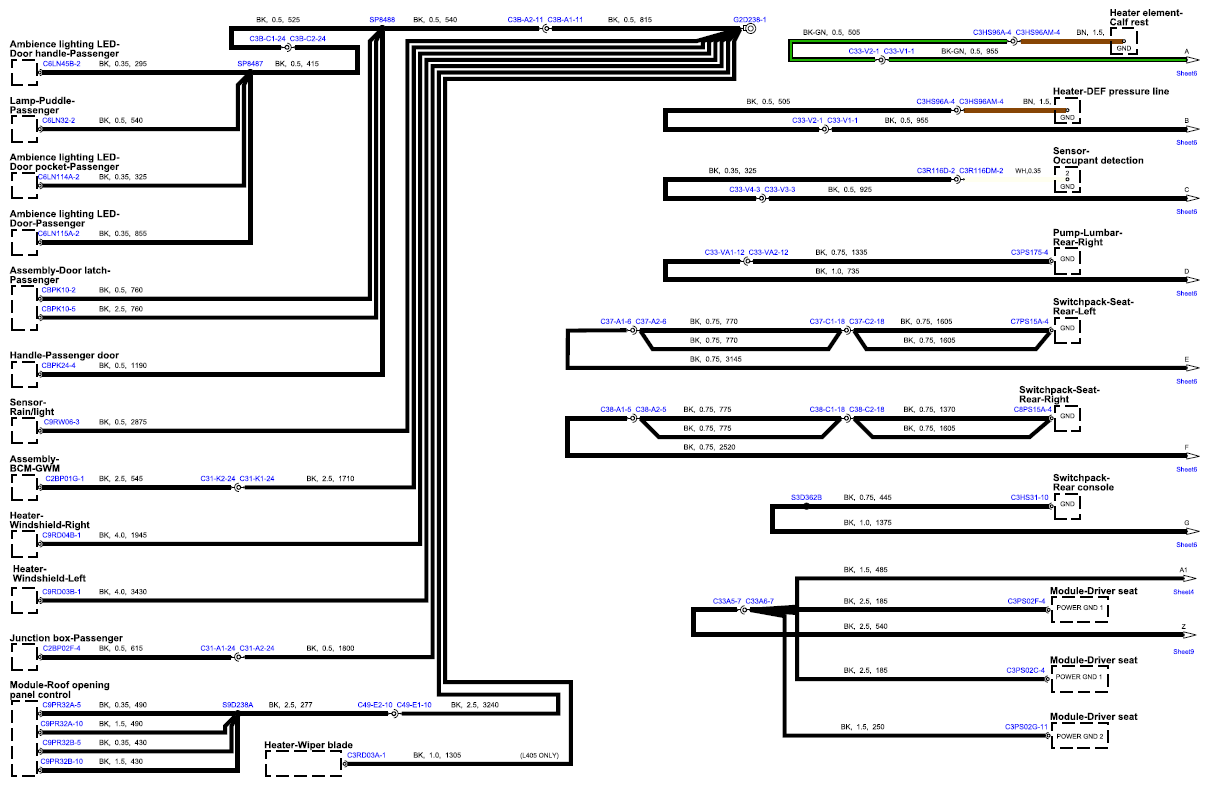

Fig 5: Ground Distribution Circuit Diagram (Sheet 5)

G15554419

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

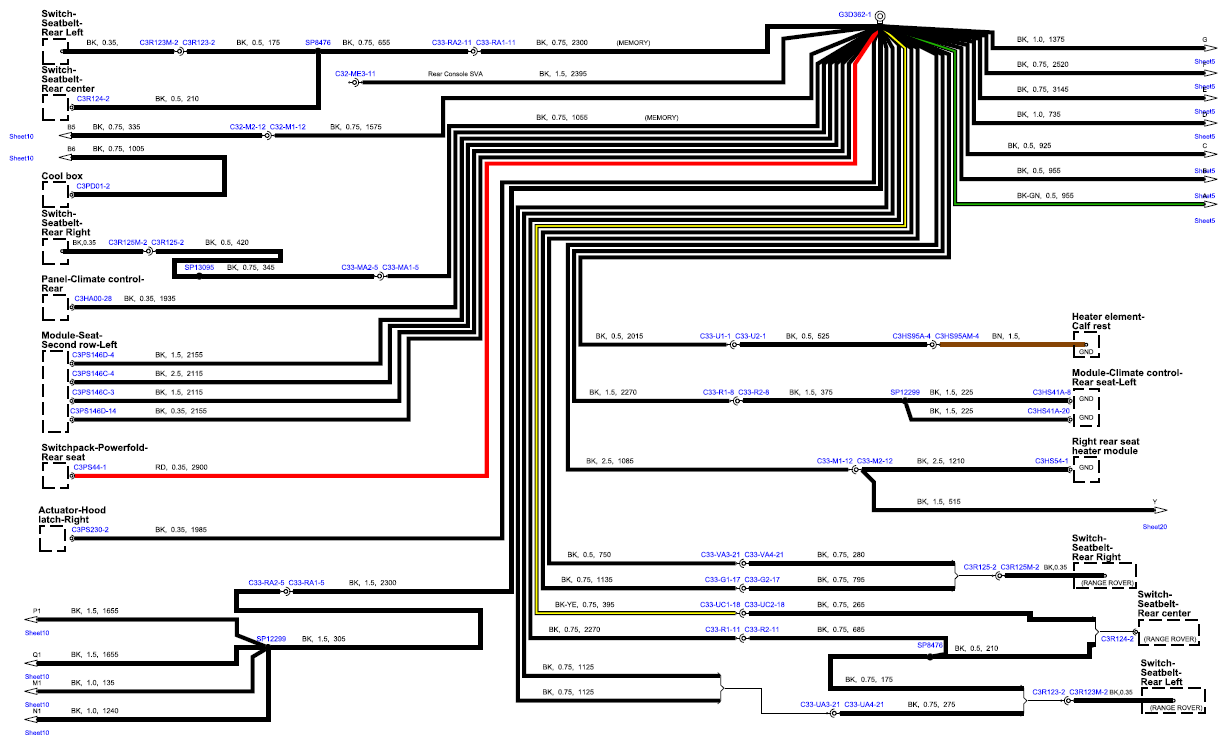

Fig 6: Ground Distribution Circuit Diagram (Sheet 6)

G15554420

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

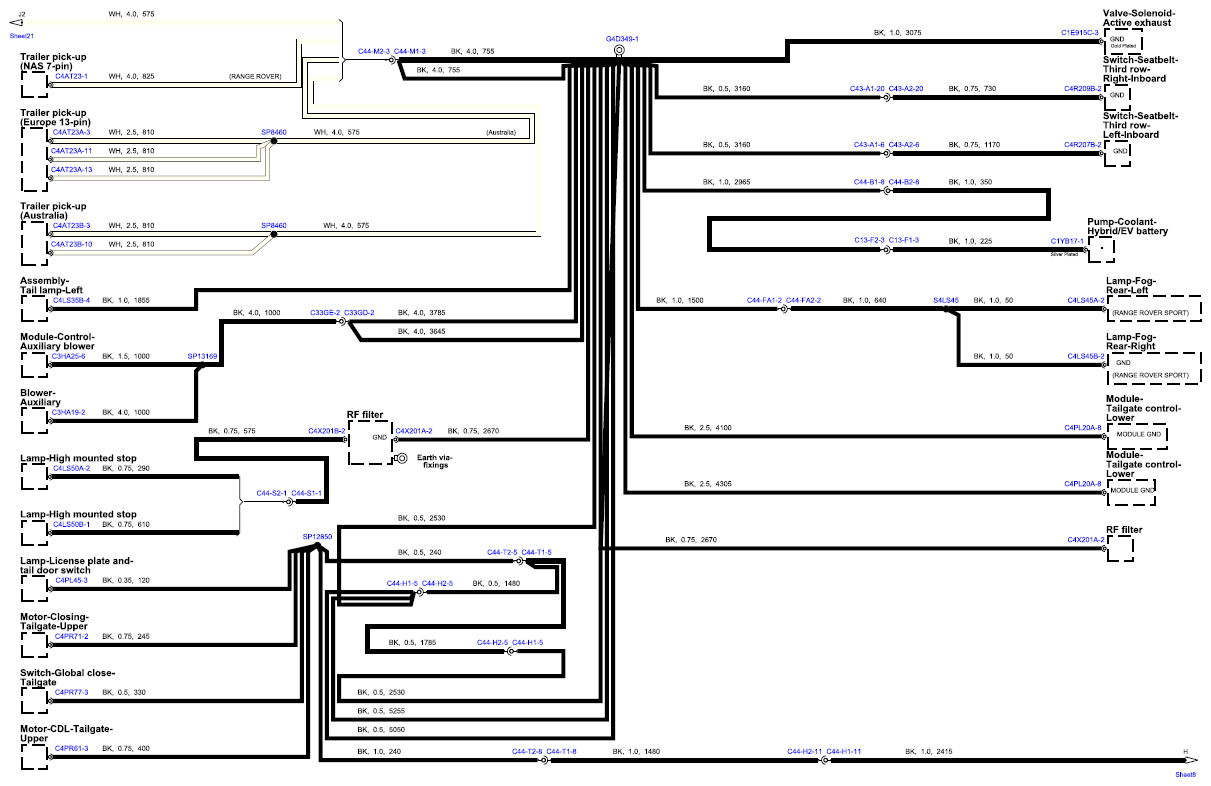

Fig 7: Ground Distribution Circuit Diagram (Sheet 7)

G15554421

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

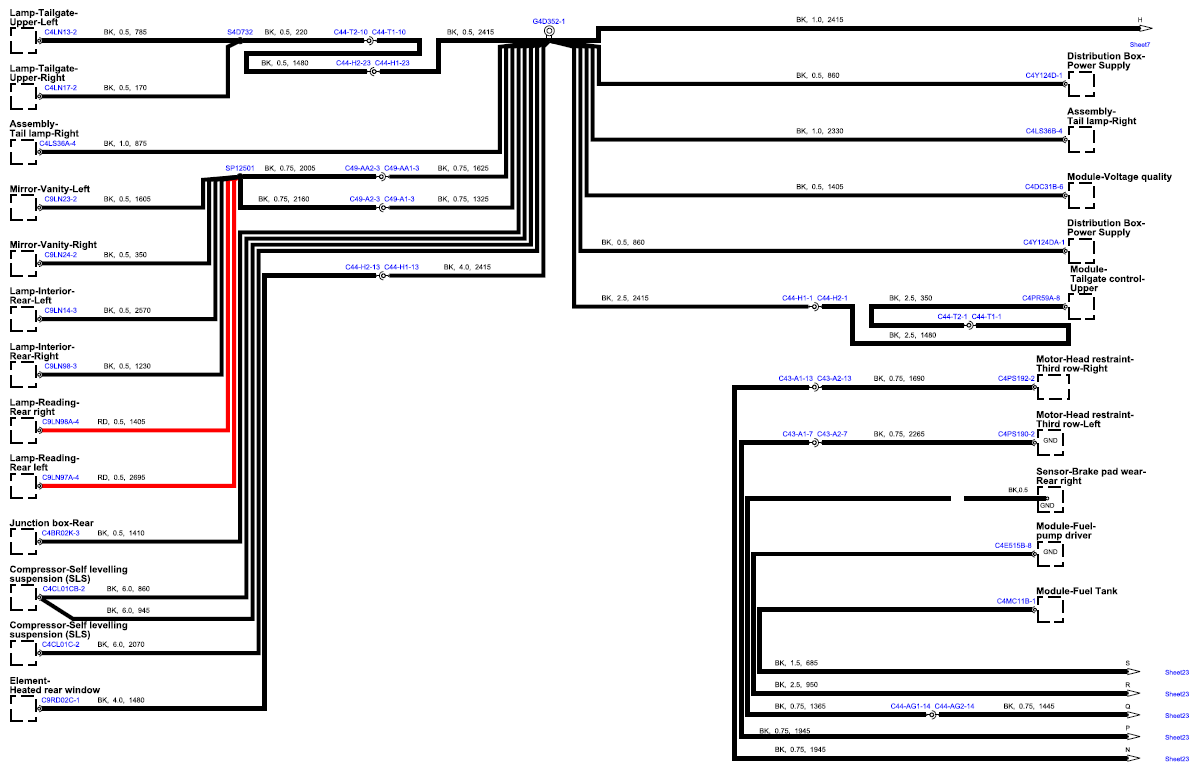

Fig 8: Ground Distribution Circuit Diagram (Sheet 8)

G15554422

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

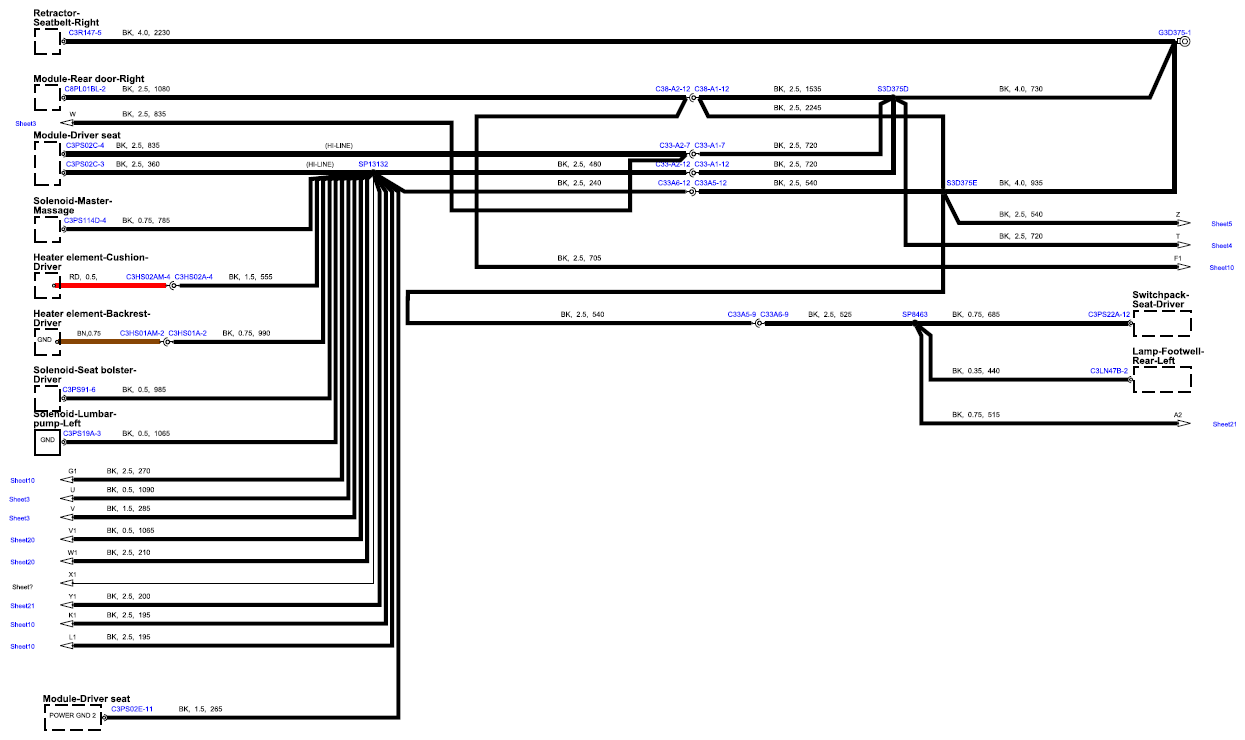

Fig 9: Ground Distribution Circuit Diagram (Sheet 9)

G15554423

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

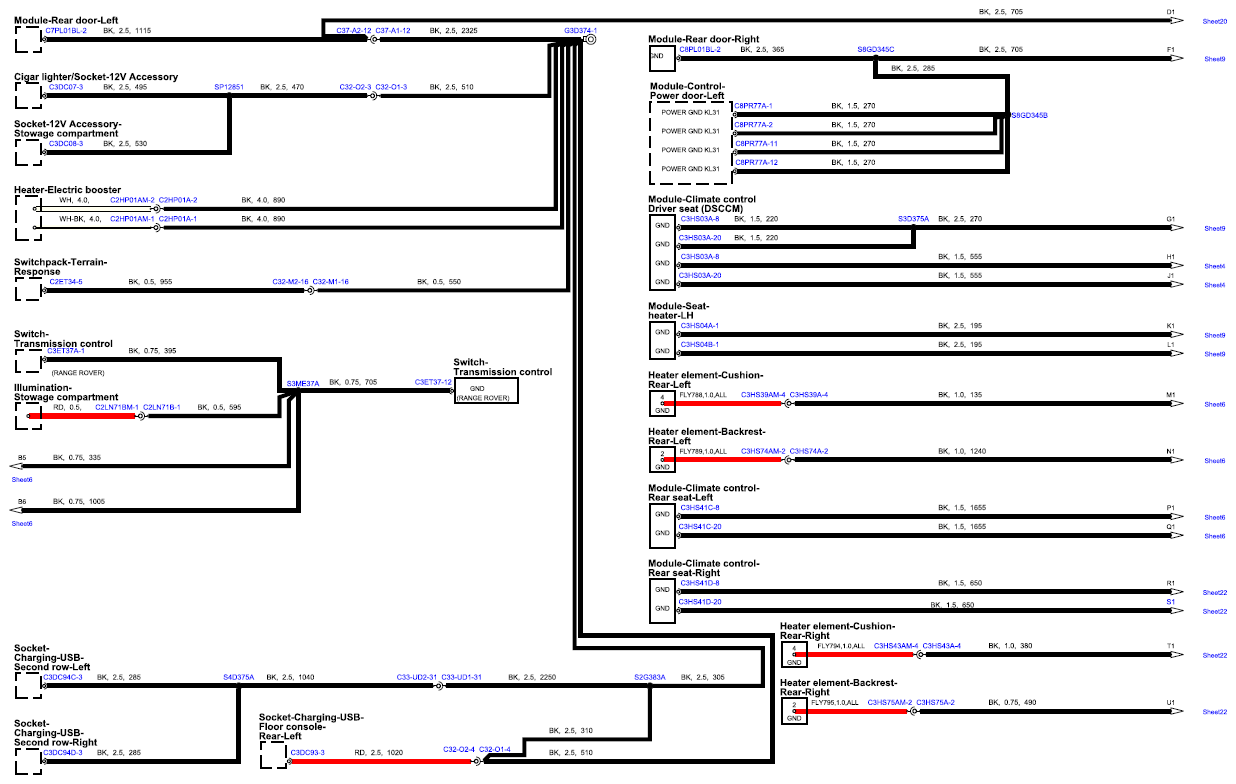

Fig 10: Ground Distribution Circuit Diagram (Sheet 10)

G15554424

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

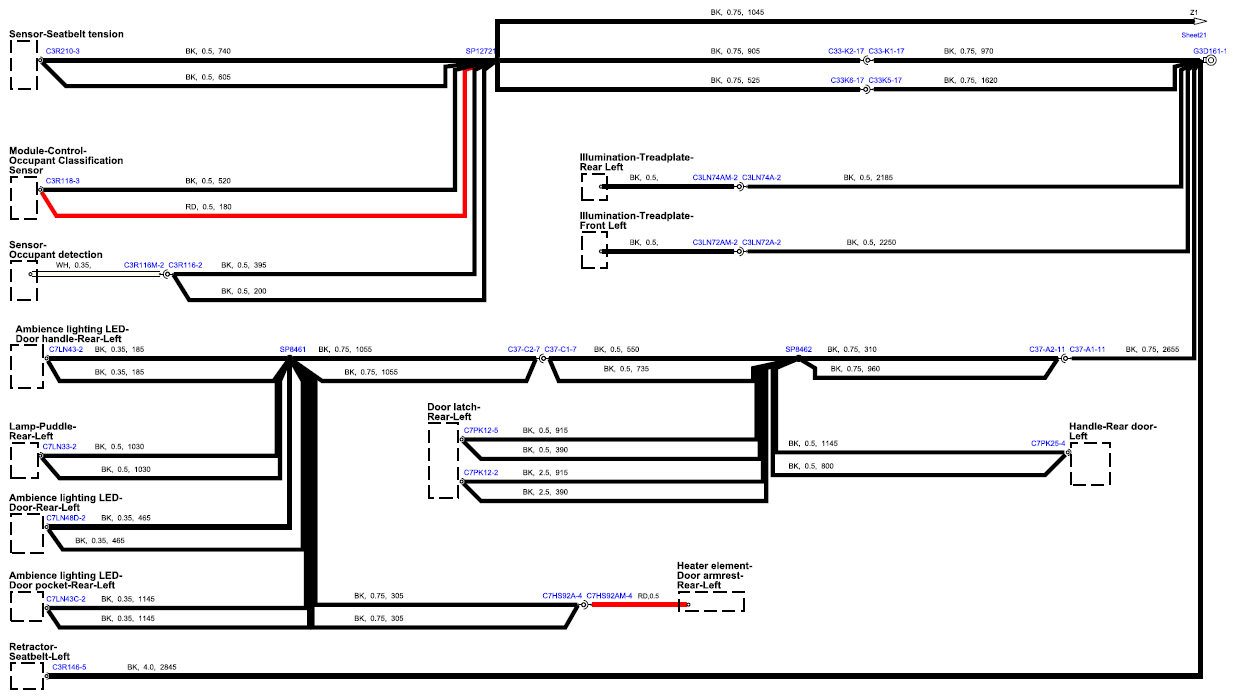

Fig 11: Ground Distribution Circuit Diagram (Sheet 11)

G15554425

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

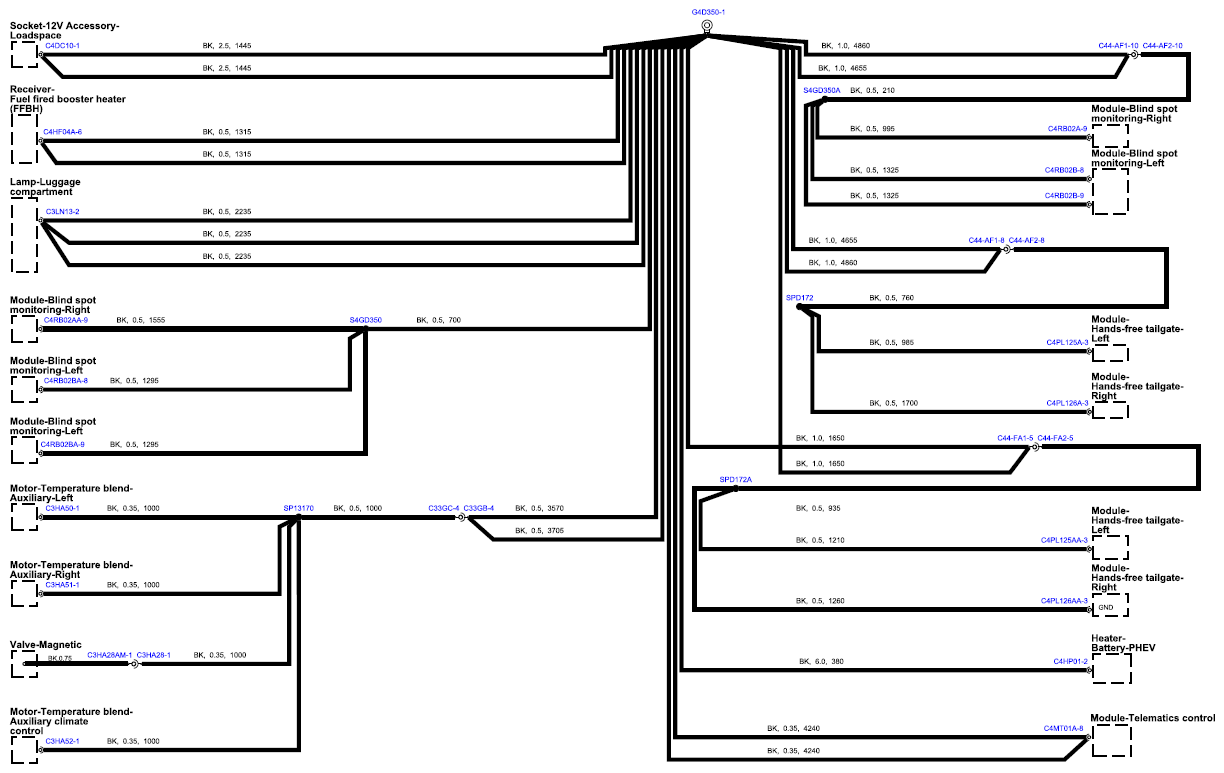

Fig 12: Ground Distribution Circuit Diagram (Sheet 12)

G15554426

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

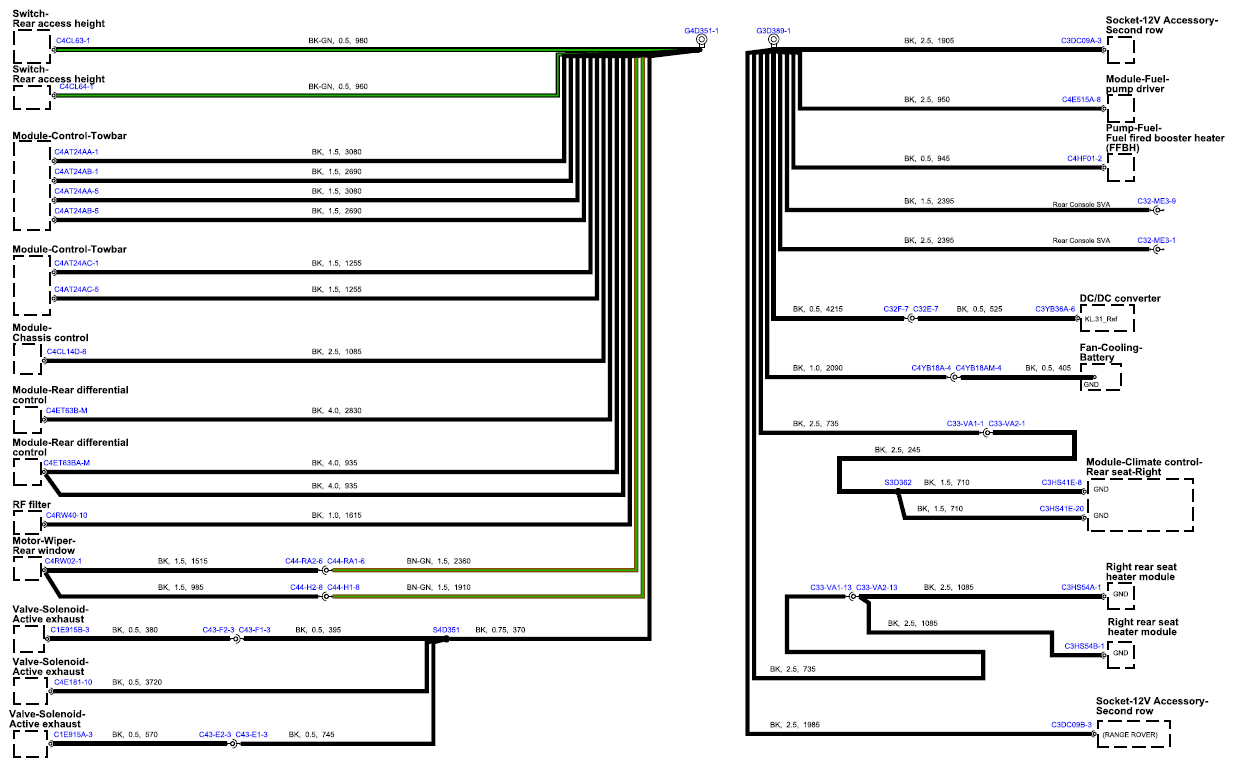

Fig 13: Ground Distribution Circuit Diagram (Sheet 13)

G15554427

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

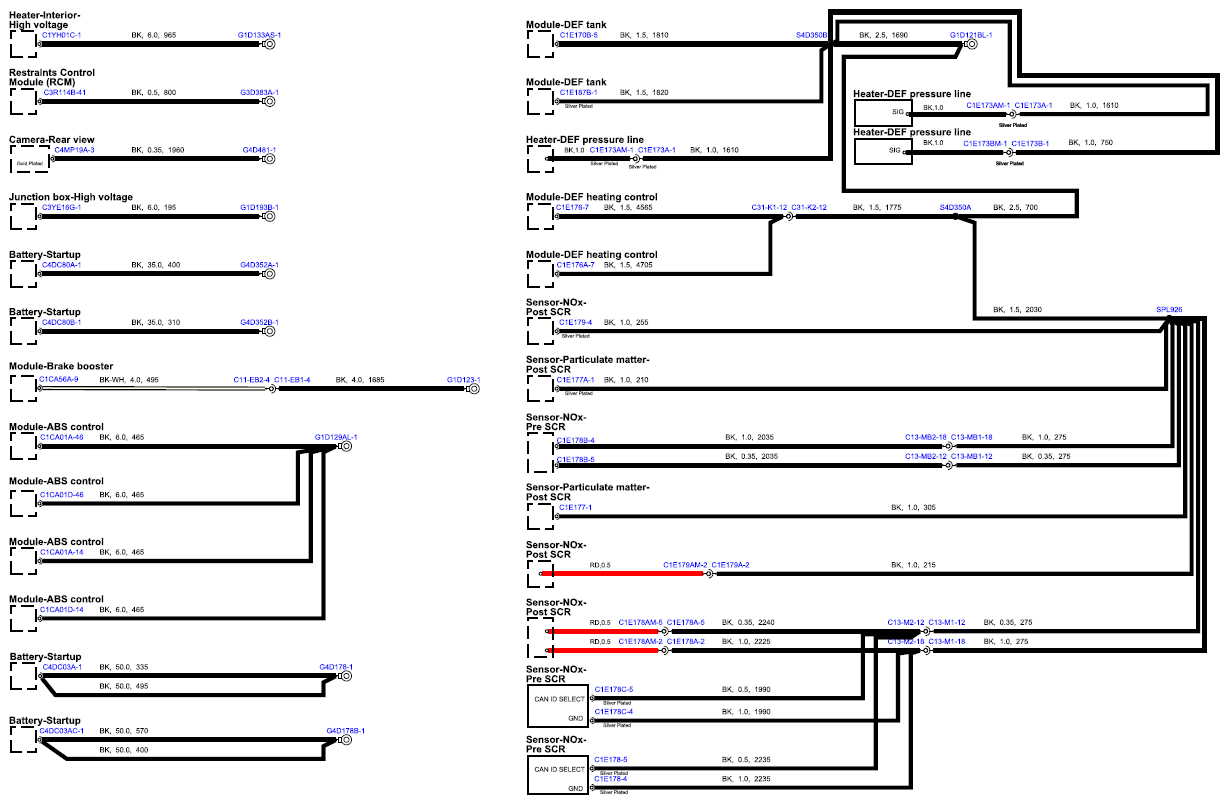

Fig 14: Ground Distribution Circuit Diagram (Sheet 14)

G15554428

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

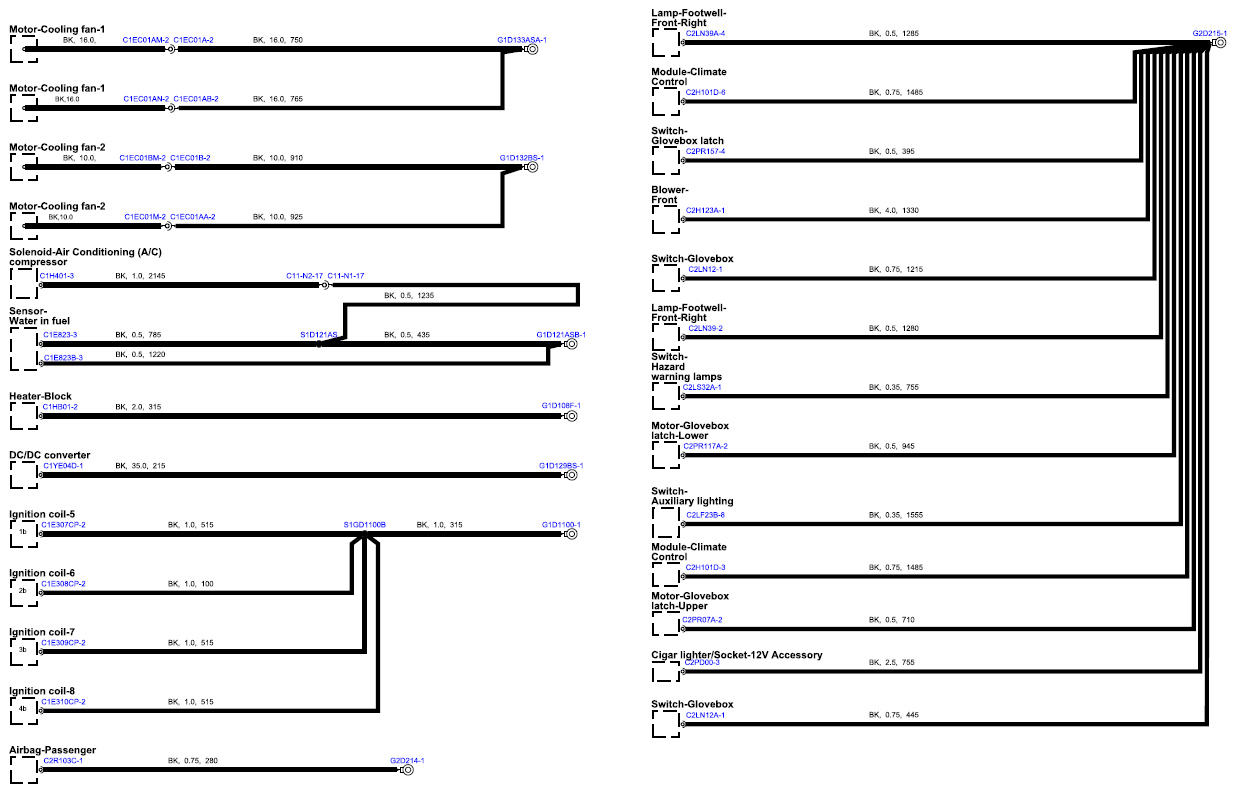

Fig 15: Ground Distribution Circuit Diagram (Sheet 15)

G15554429

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

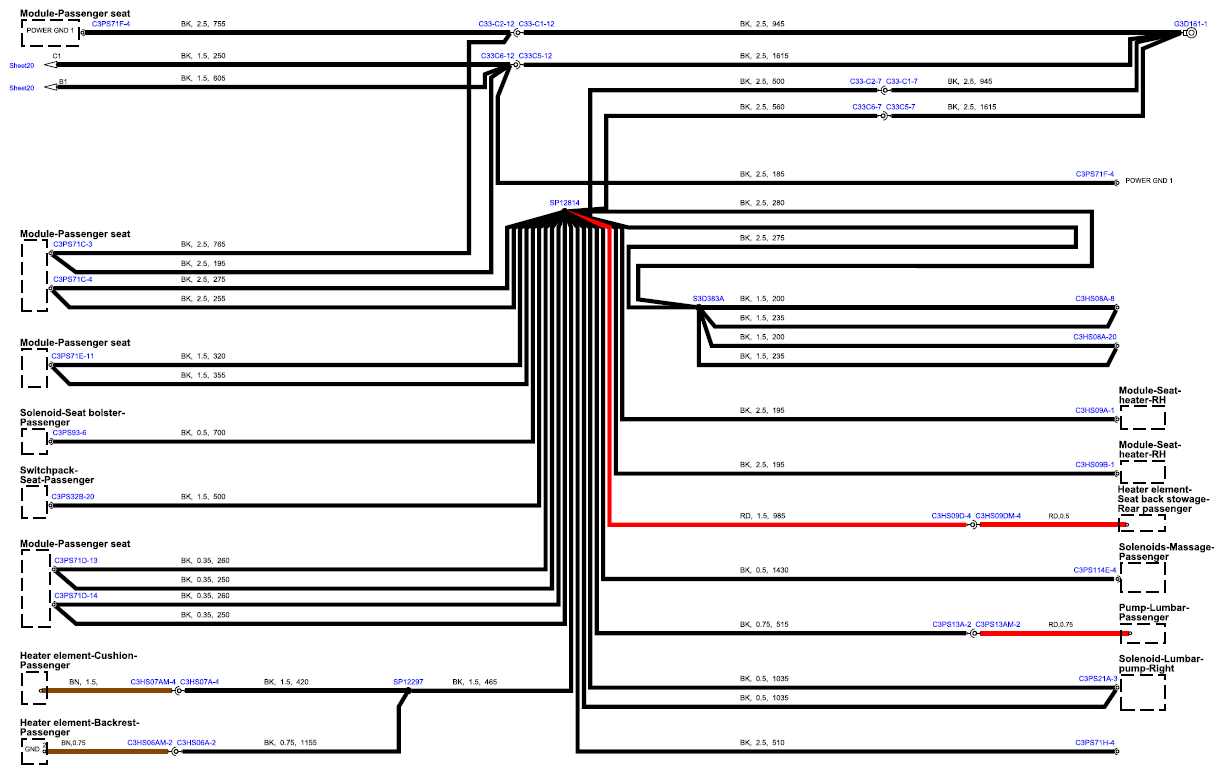

Fig 16: Ground Distribution Circuit Diagram (Sheet 16)

G15554430

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

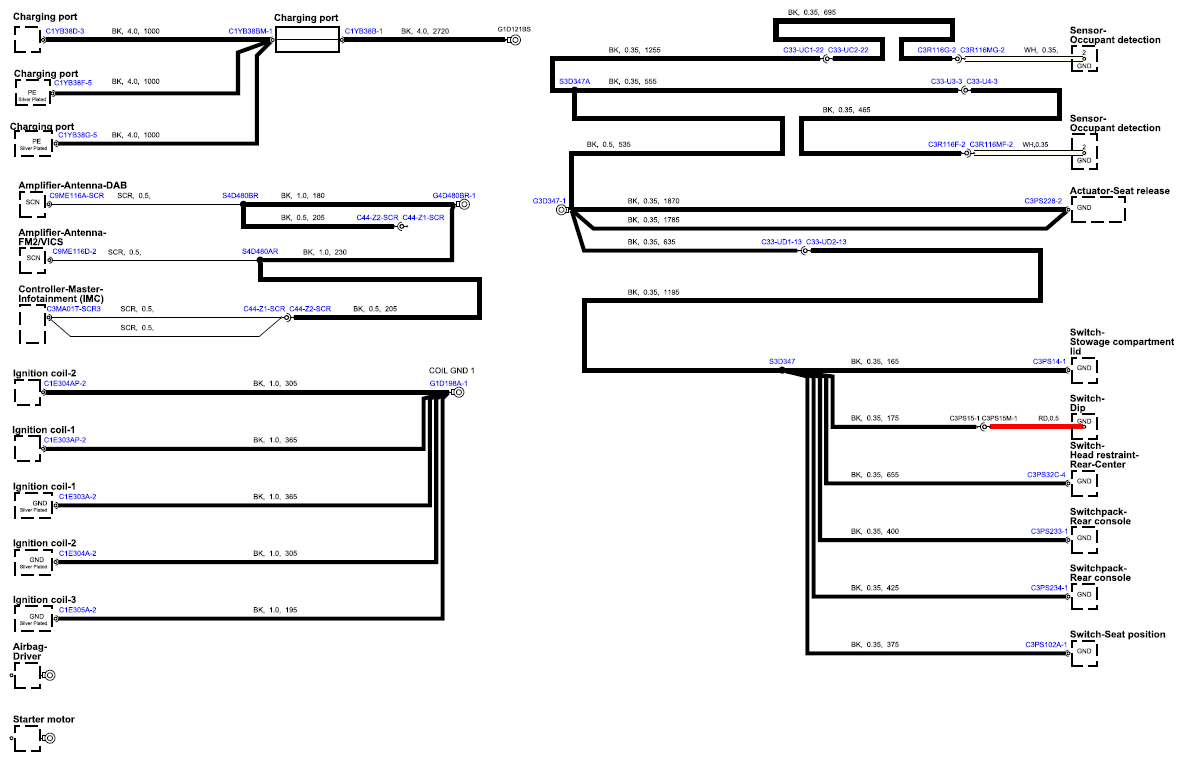

Fig 17: Ground Distribution Circuit Diagram (Sheet 17)

G15554431

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

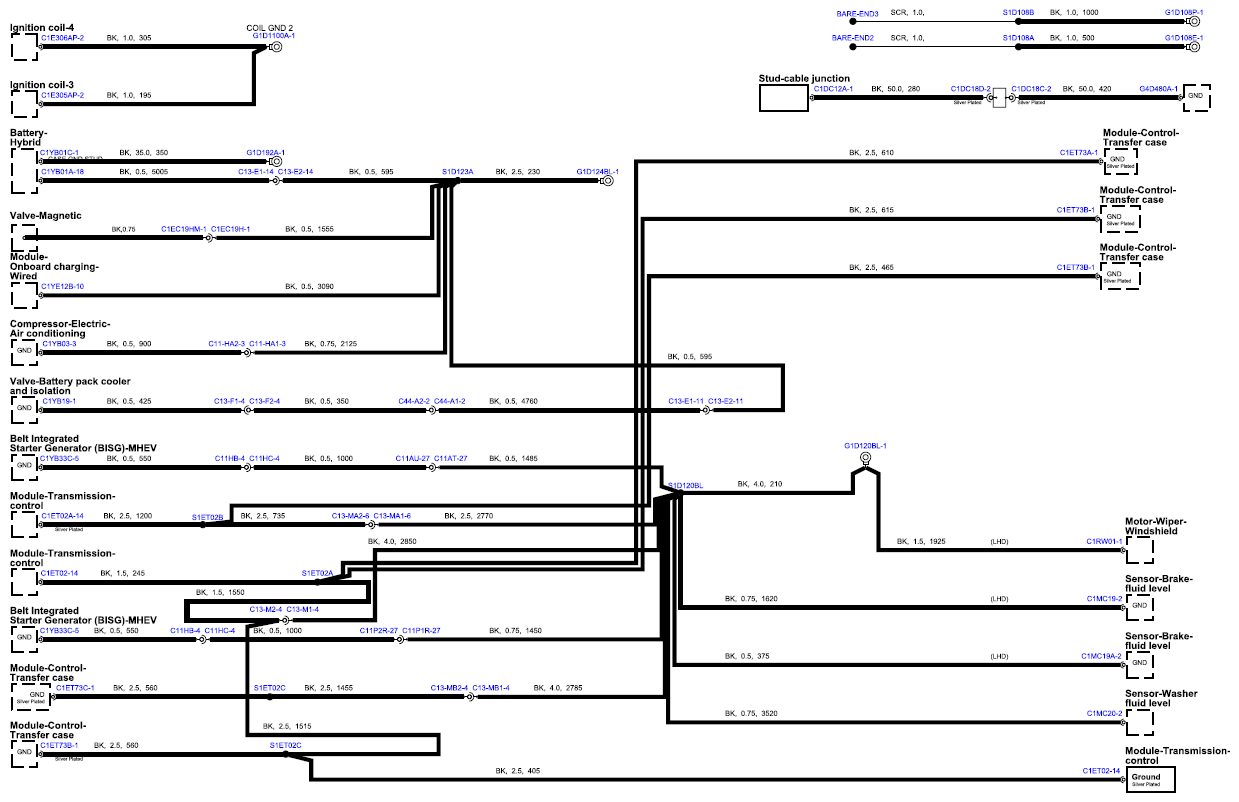

Fig 18: Ground Distribution Circuit Diagram (Sheet 18)

G15554432

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

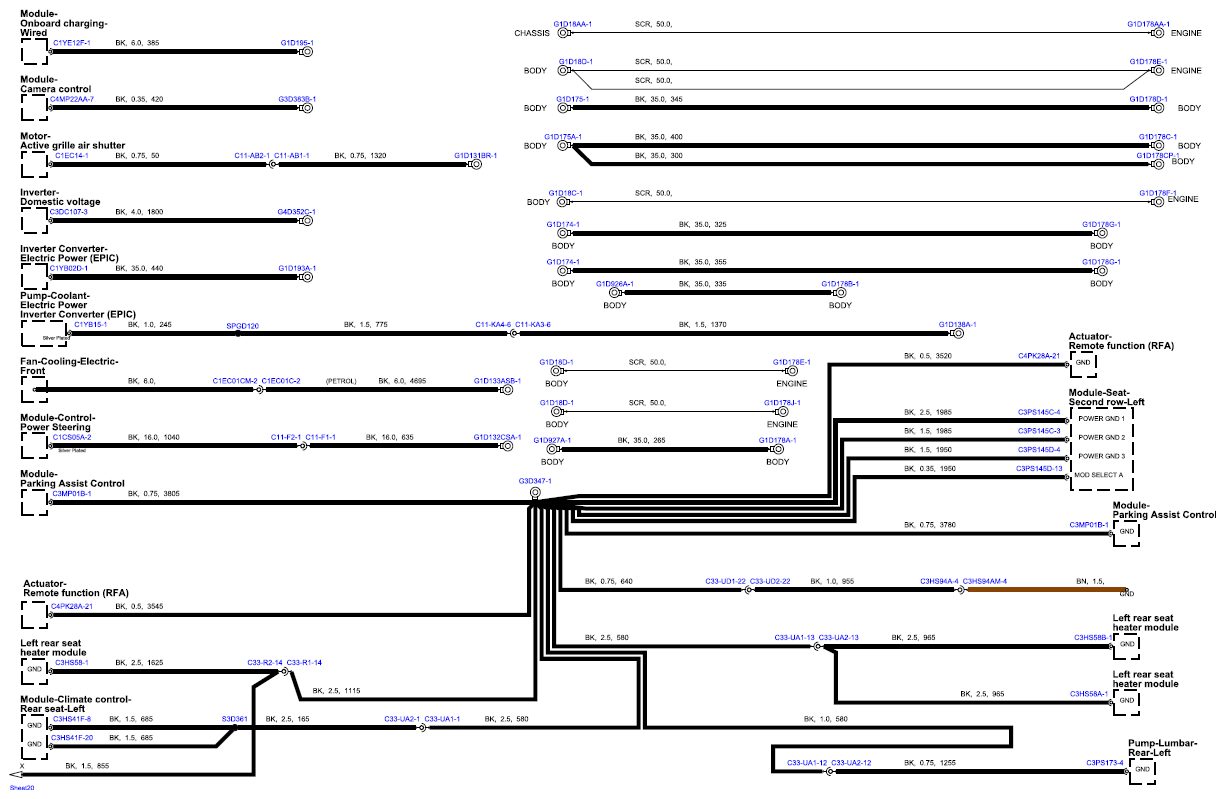

Fig 19: Ground Distribution Circuit Diagram (Sheet 19)

G15554433

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

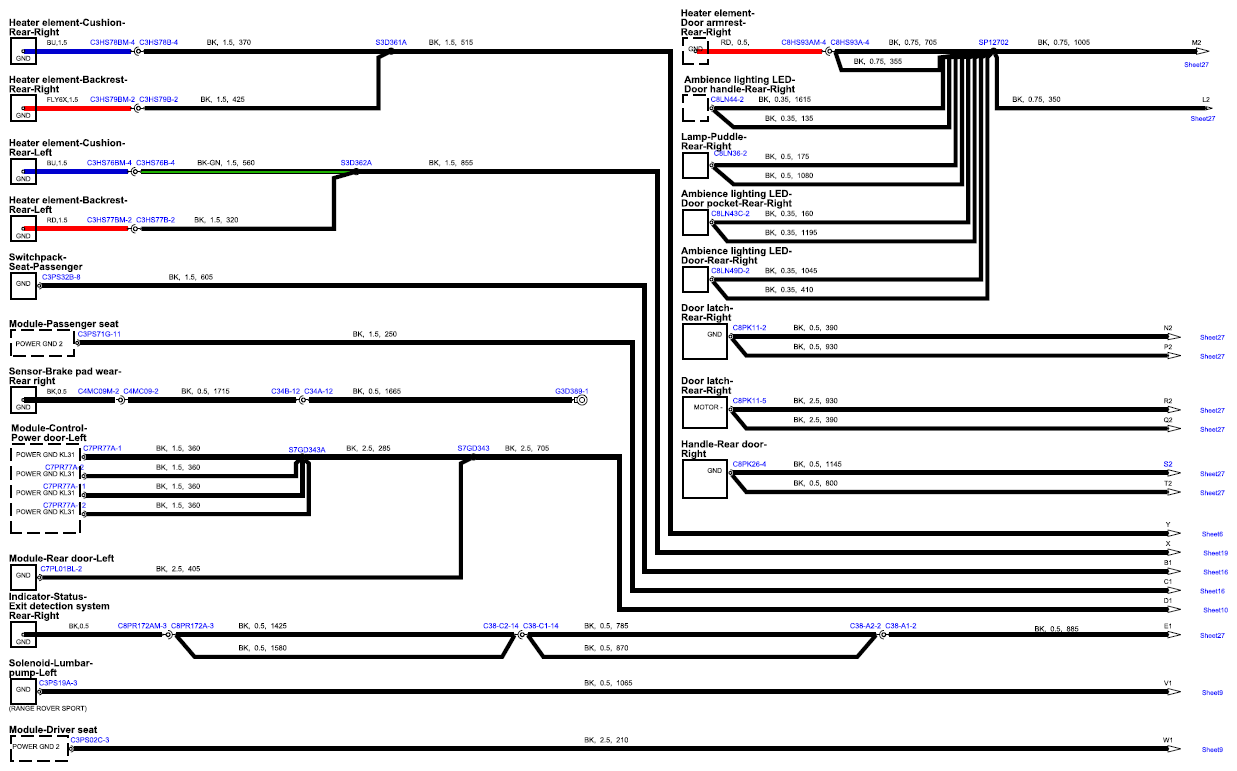

Fig 20: Ground Distribution Circuit Diagram (Sheet 20)

G15554434

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

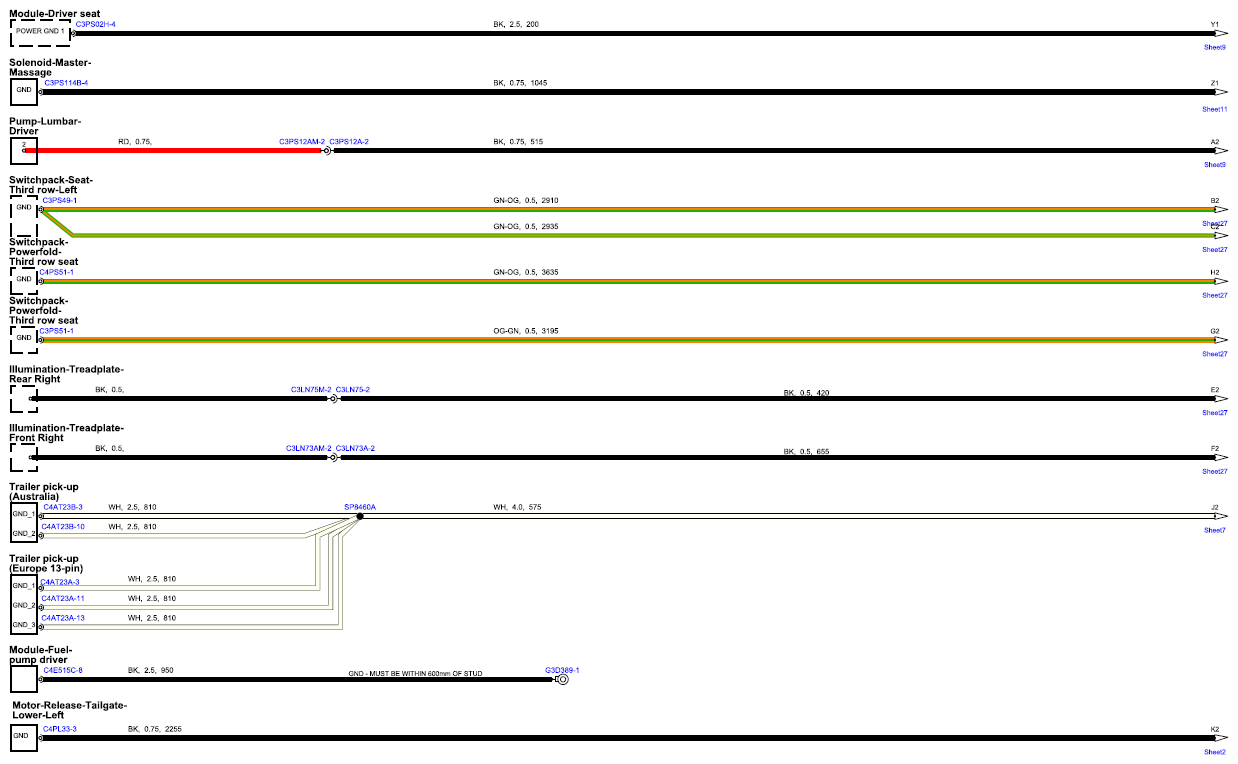

Fig 21: Ground Distribution Circuit Diagram (Sheet 21)

G15554435

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

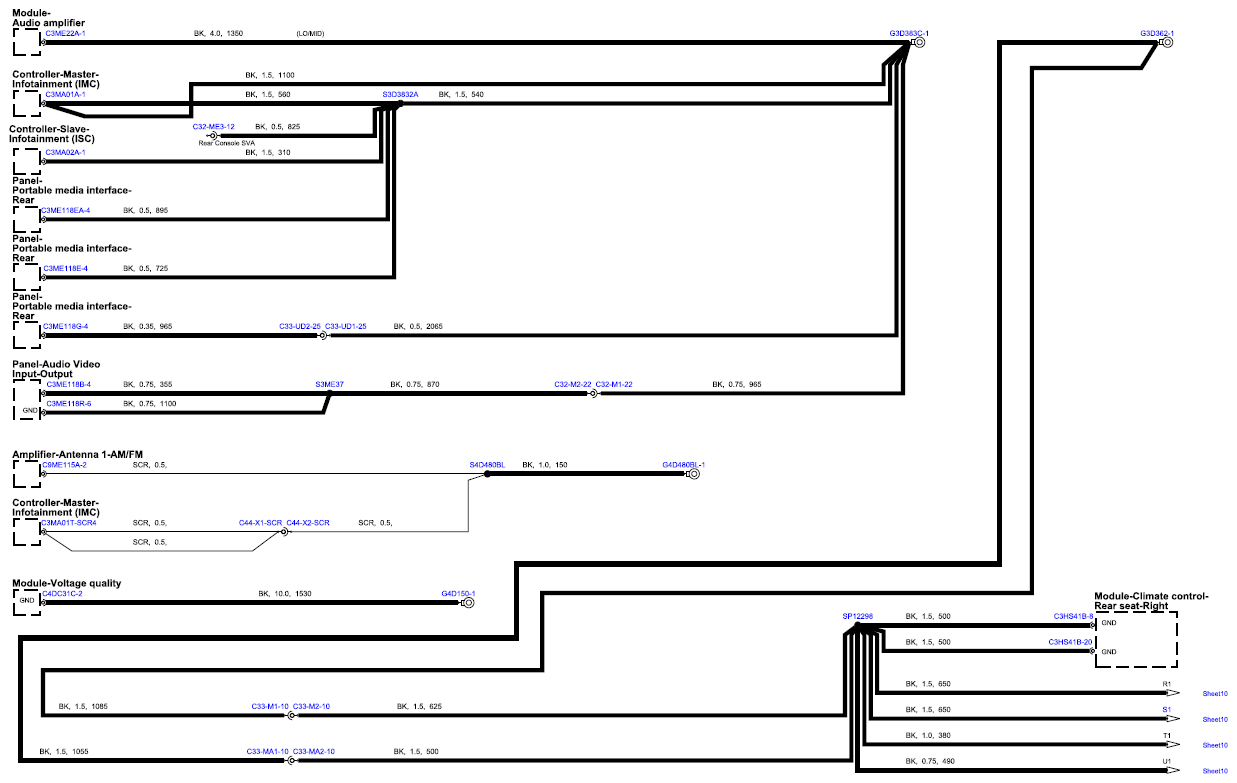

Fig 22: Ground Distribution Circuit Diagram (Sheet 22)

G15554436

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

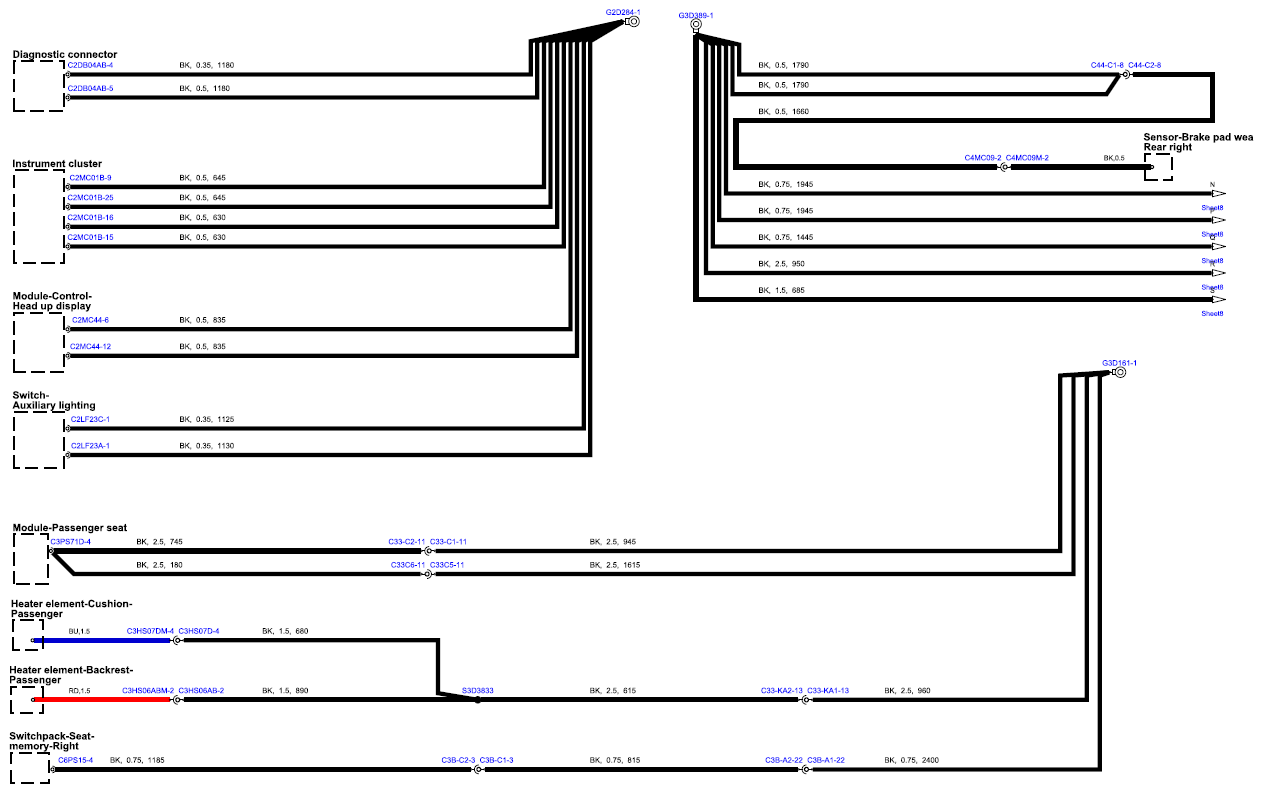

Fig 23: Ground Distribution Circuit Diagram (Sheet 23)

G15554437

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

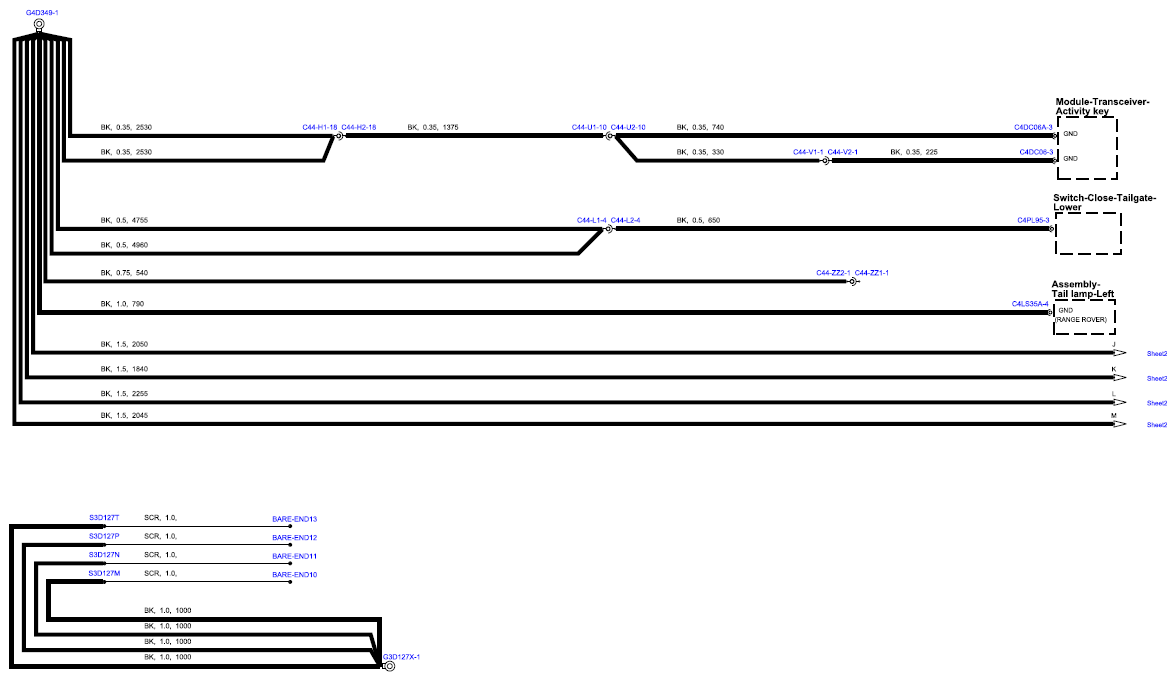

Fig 24: Ground Distribution Circuit Diagram (Sheet 24)

G15554438

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

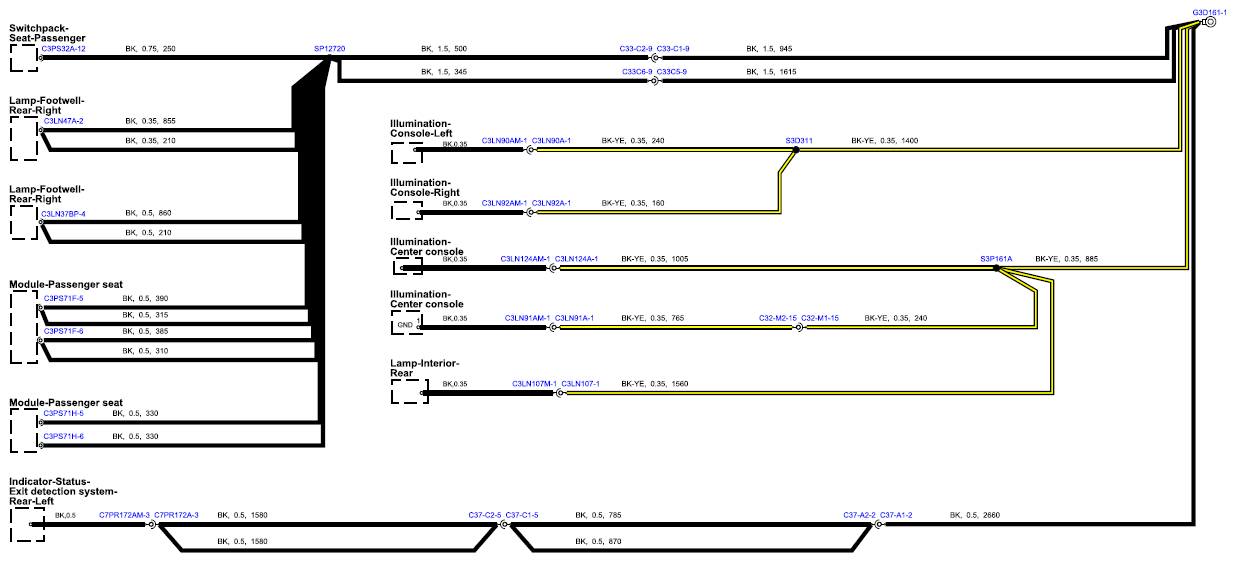

Fig 25: Ground Distribution Circuit Diagram (Sheet 25)

G15554439

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

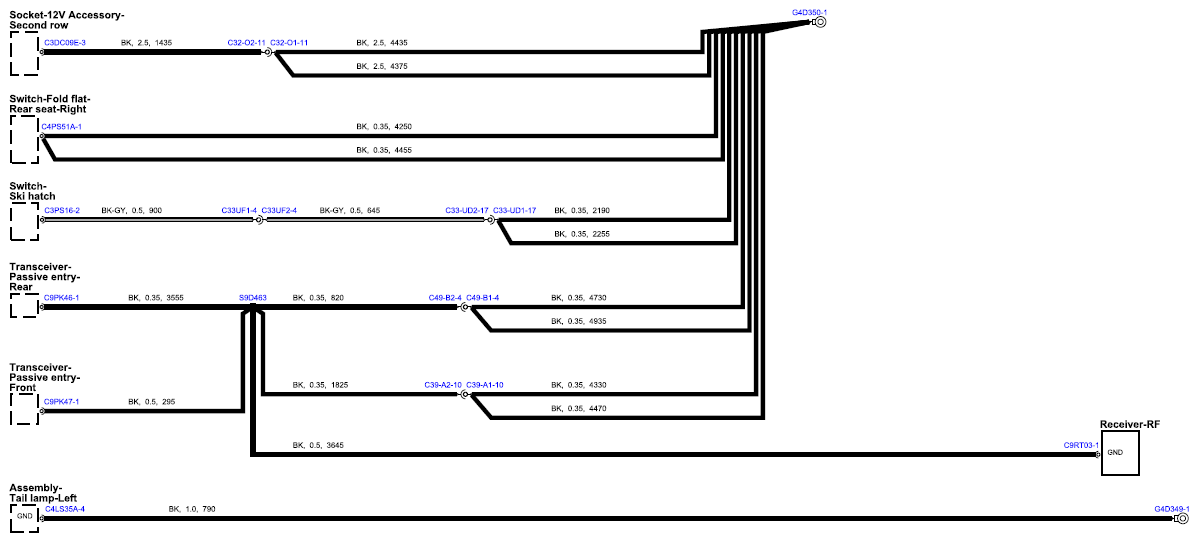

Fig 26: Ground Distribution Circuit Diagram (Sheet 26)

G15554440

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

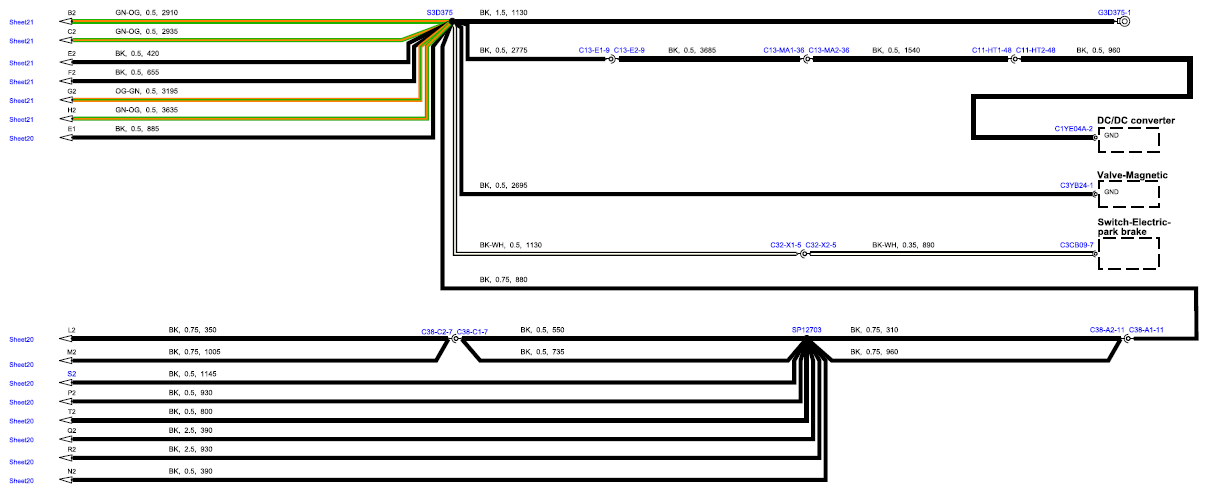

Fig 27: Ground Distribution Circuit Diagram (Sheet 27)

G15554441

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

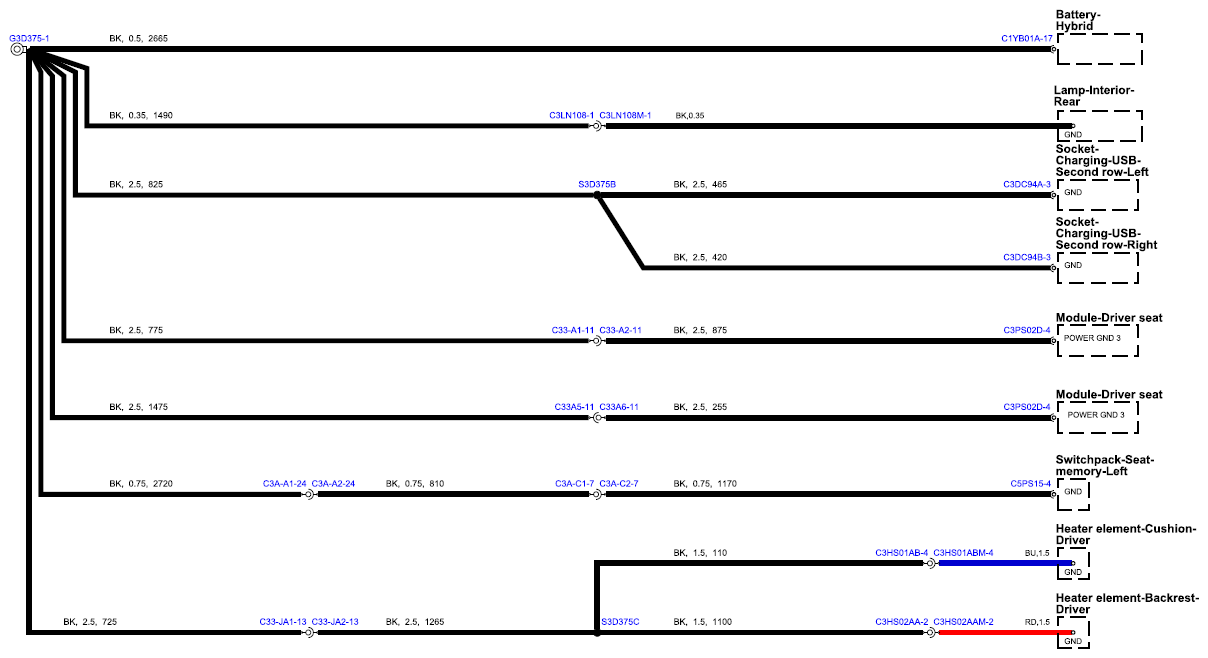

Fig 28: Ground Distribution Circuit Diagram (Sheet 28)

G15554442

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
