Engine junction box - Petrol

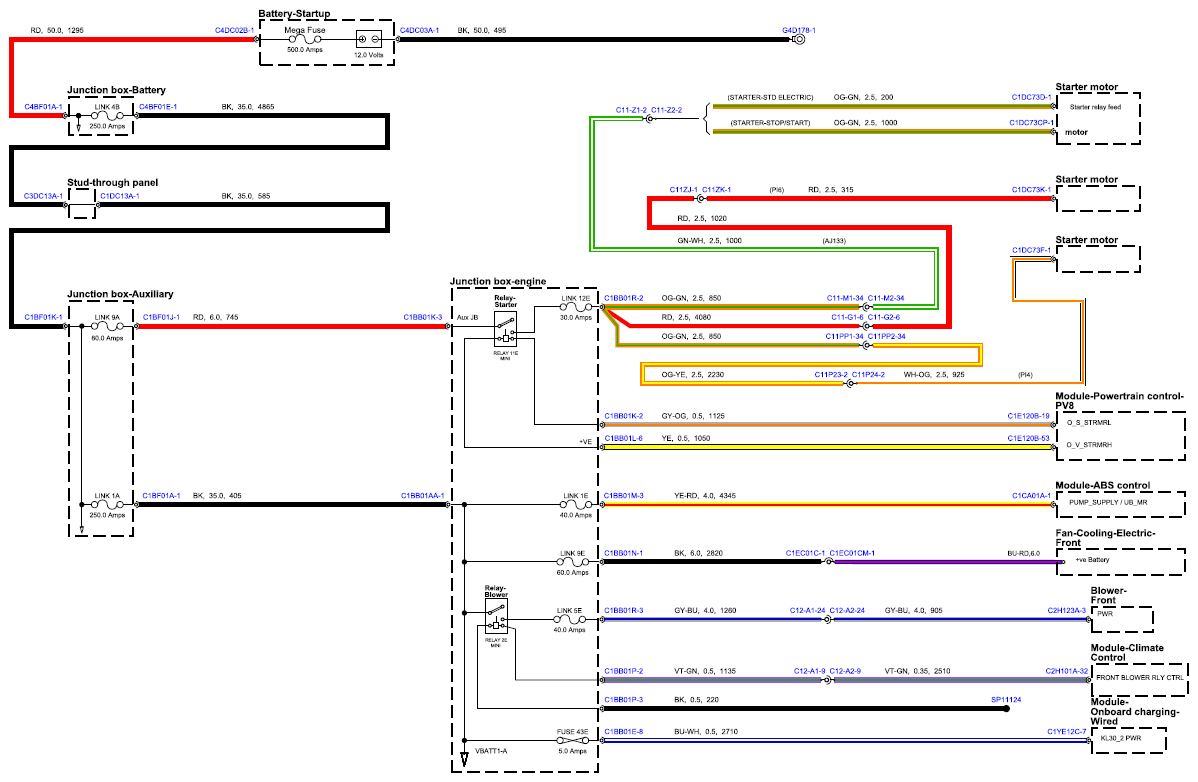

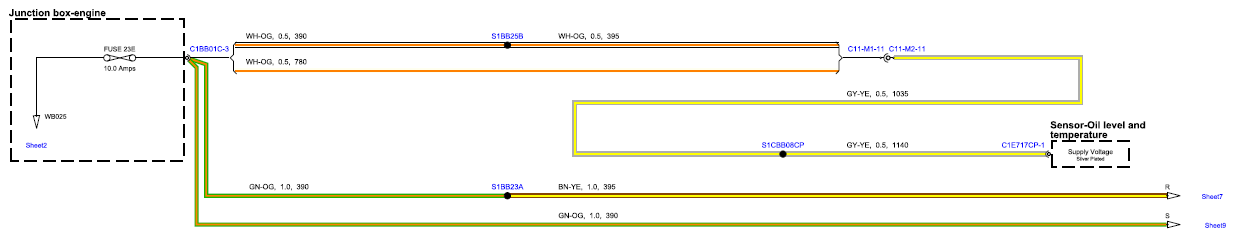

Fig 1: Engine Junction Box - Petrol Circuit Diagram (Sheet 1)

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

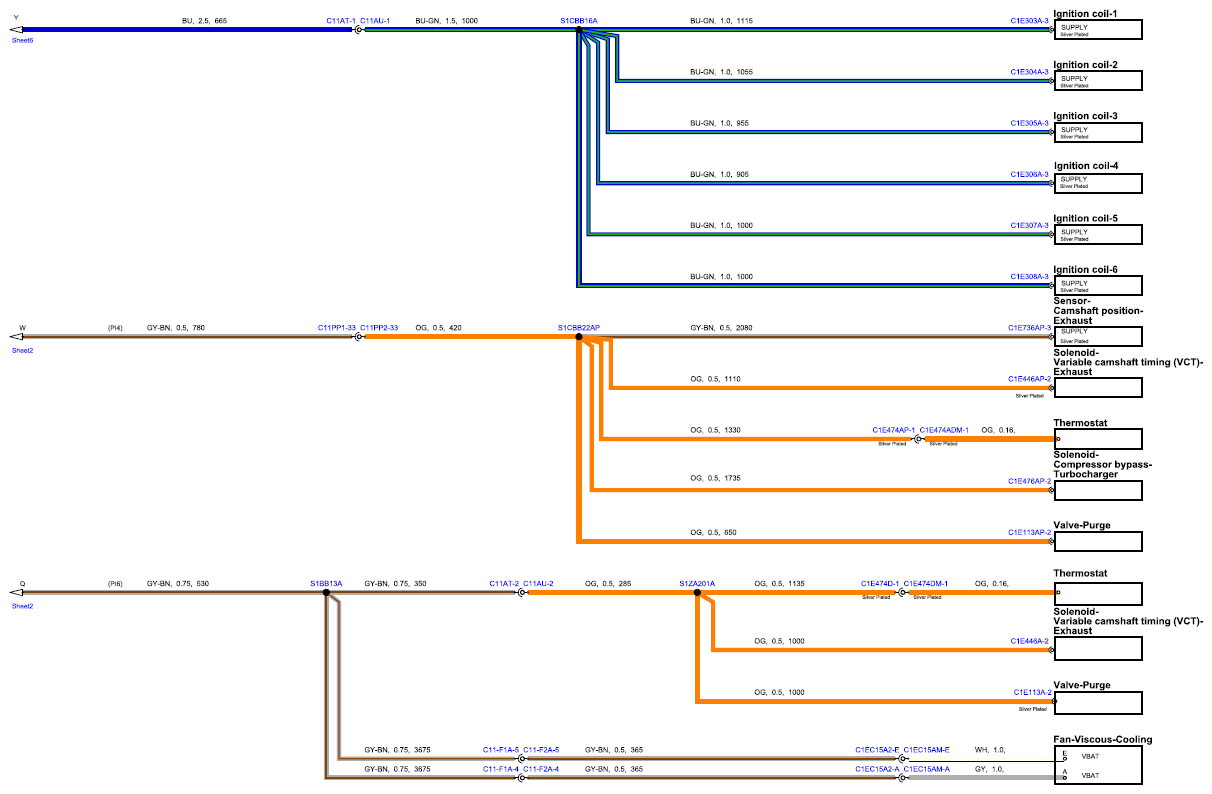

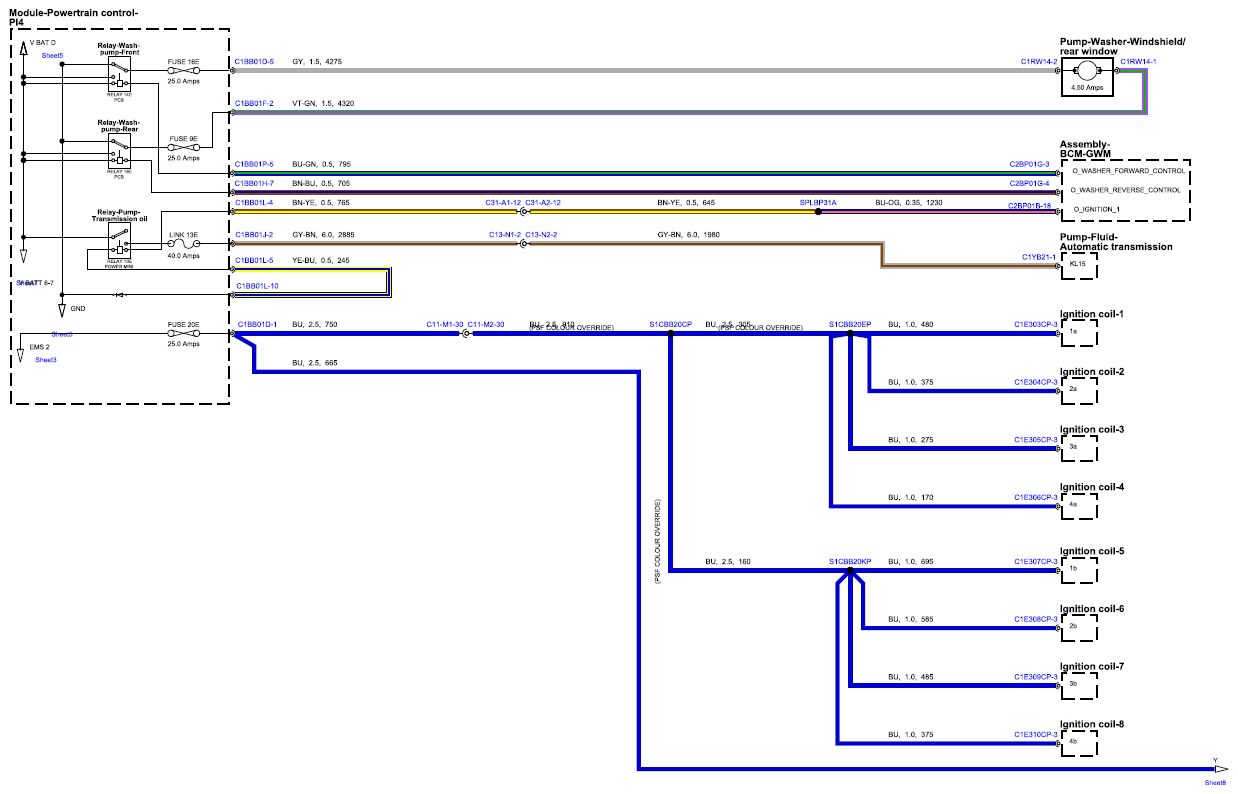

Fig 2: Engine Junction Box - Petrol Circuit Diagram (Sheet 2)

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

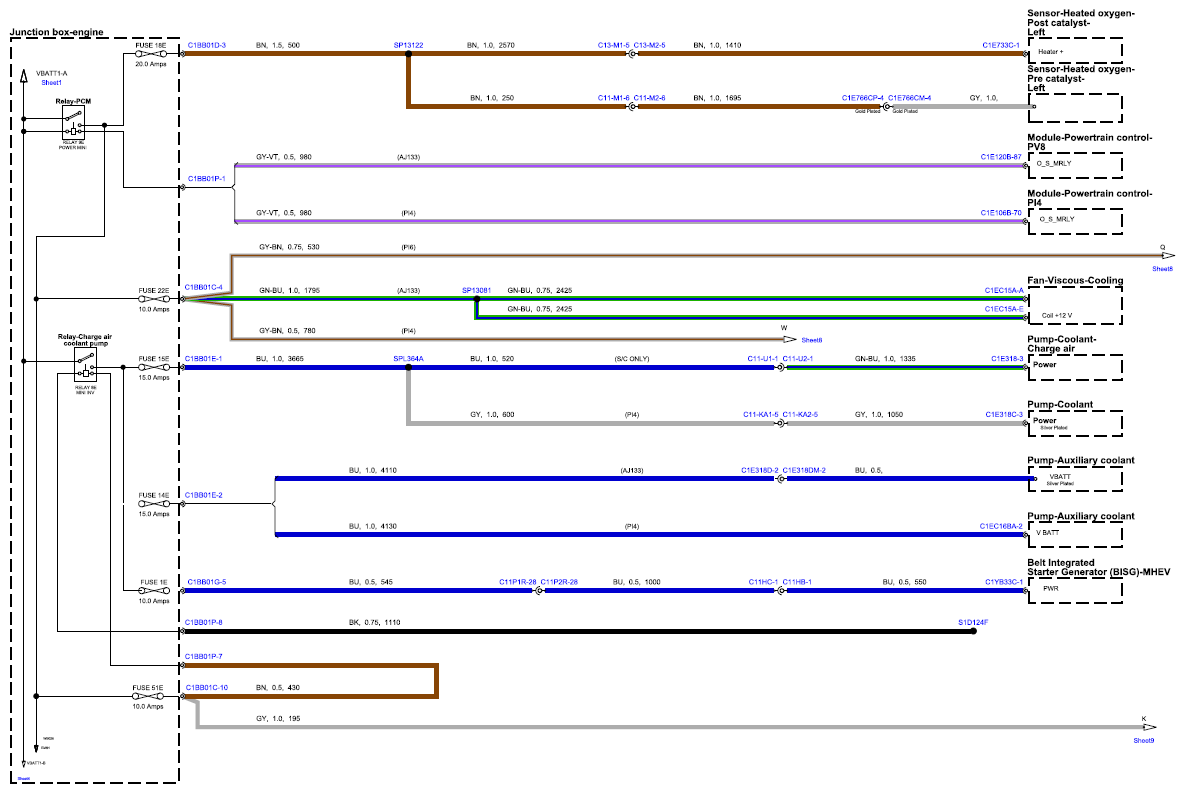

Fig 3: Engine Junction Box - Petrol Circuit Diagram (Sheet 3)

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

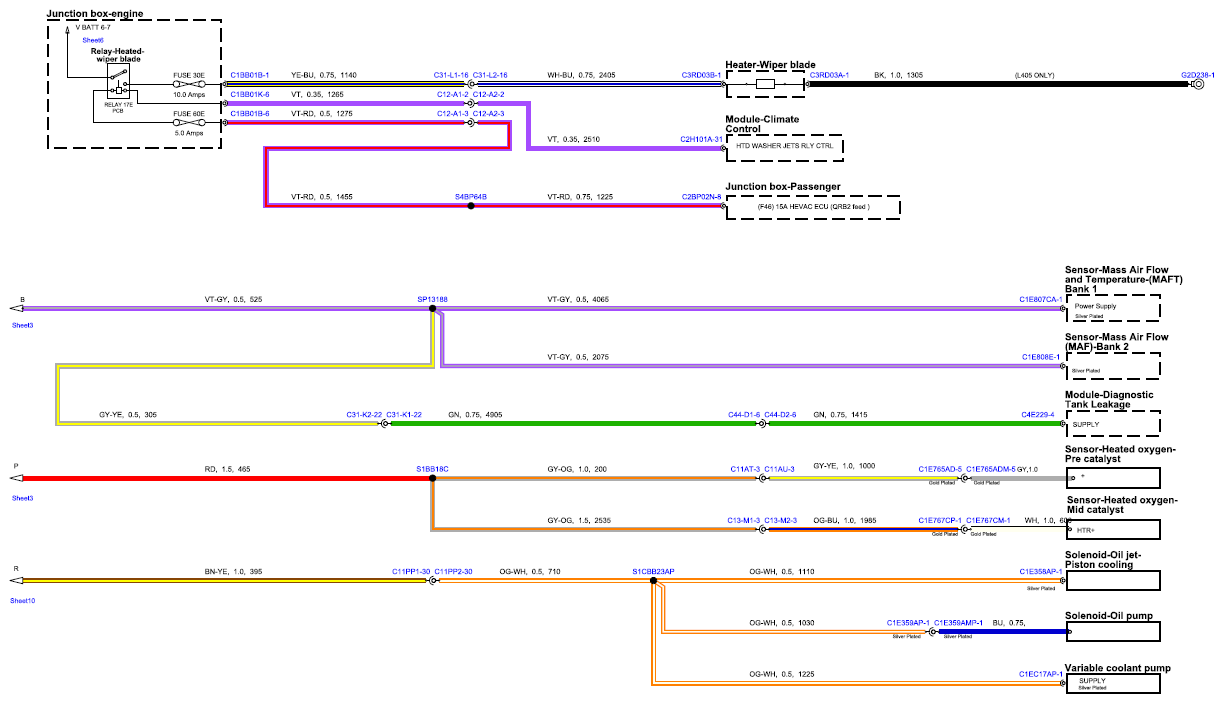

Fig 4: Engine Junction Box - Petrol Circuit Diagram (Sheet 4)

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

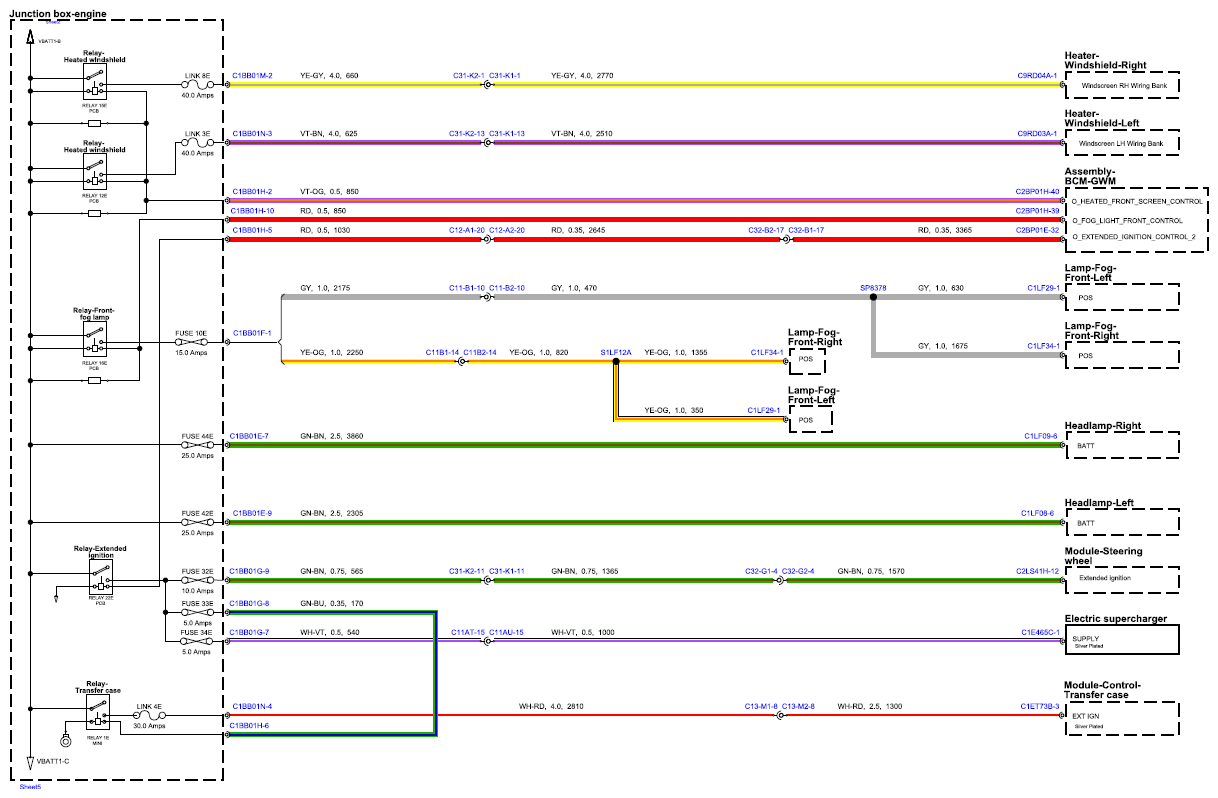

Fig 5: Engine Junction Box - Petrol Circuit Diagram (Sheet 5)

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

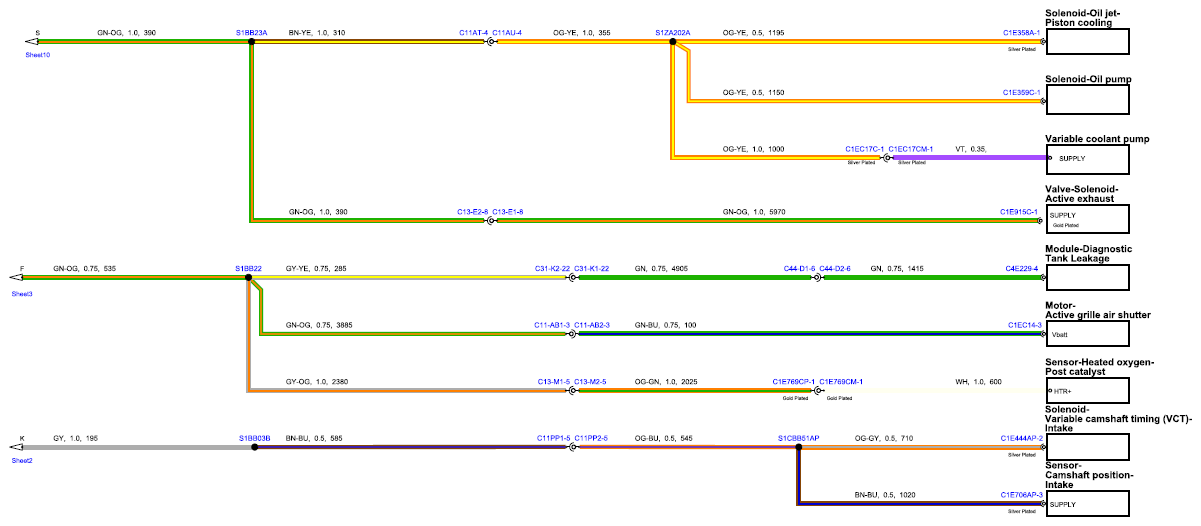

Fig 6: Engine Junction Box - Petrol Circuit Diagram (Sheet 6)

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

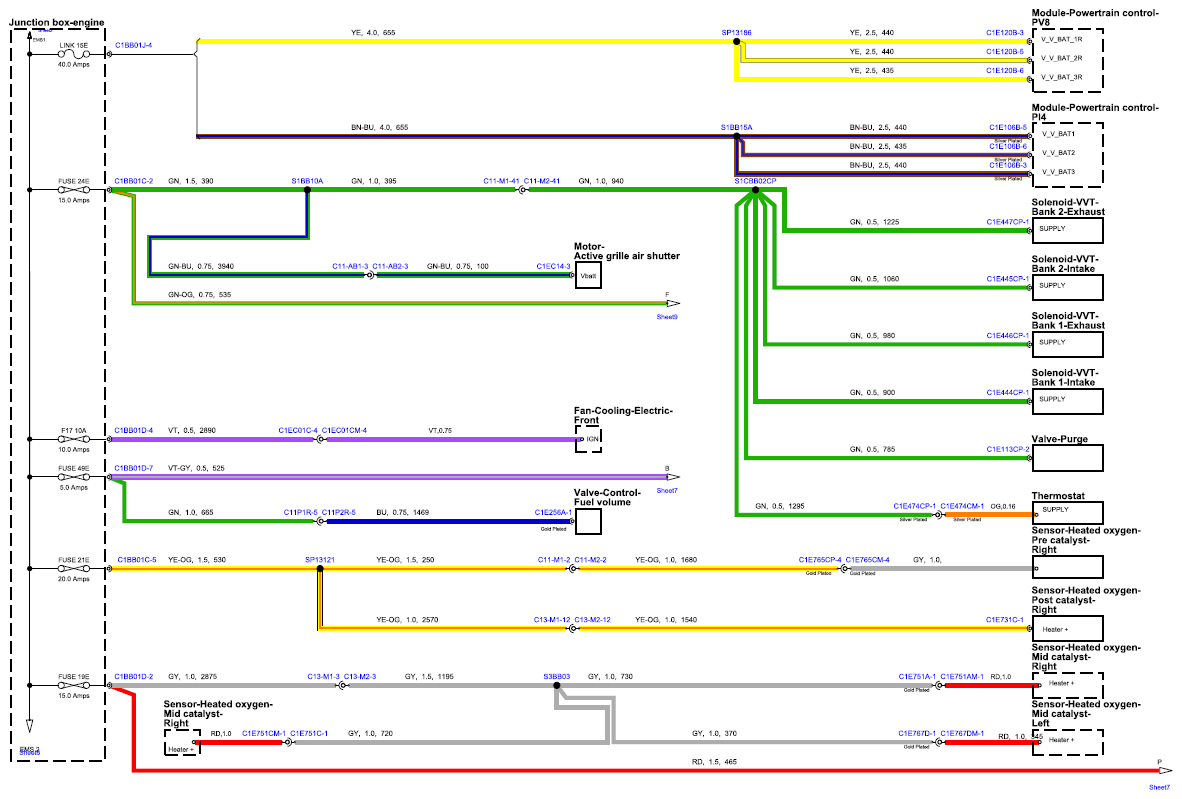

Fig 7: Engine Junction Box - Petrol Circuit Diagram (Sheet 7)

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

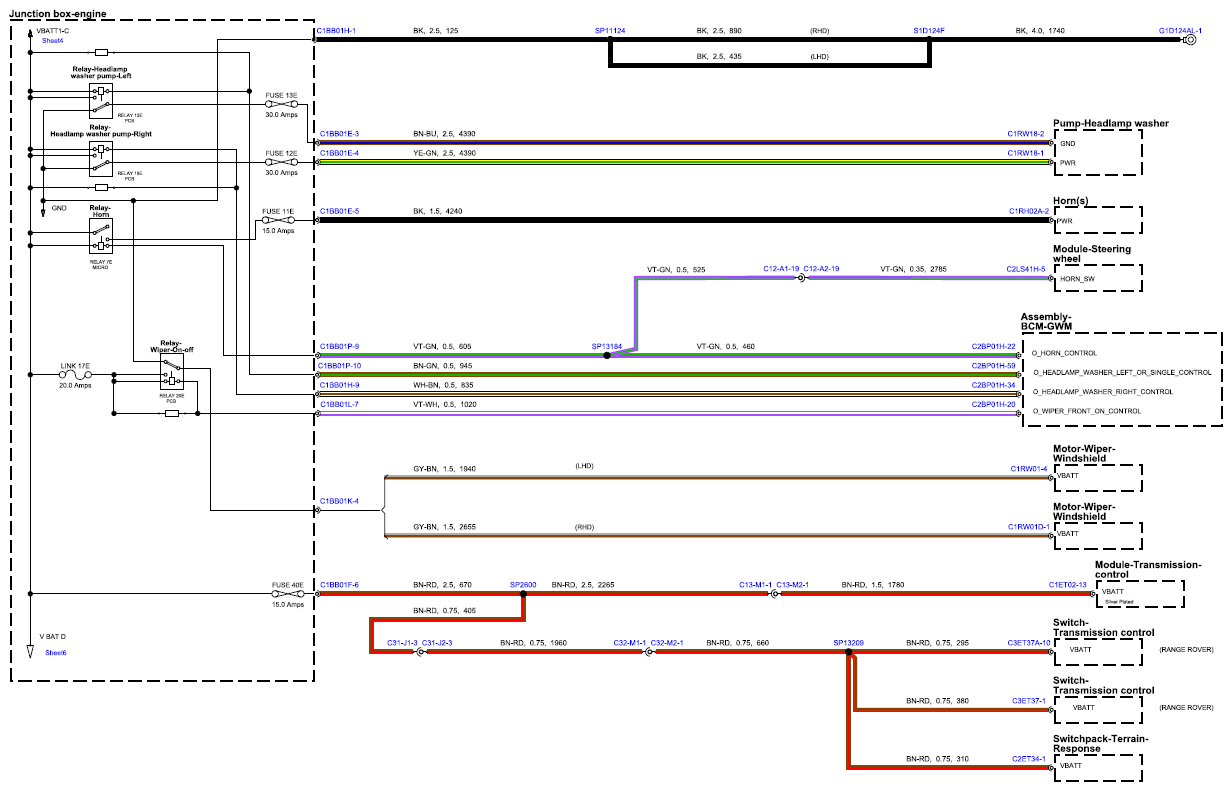

Fig 8: Engine Junction Box - Petrol Circuit Diagram (Sheet 8)

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Fig 9: Engine Junction Box - Petrol Circuit Diagram (Sheet 9)

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Fig 10: Engine Junction Box - Petrol Circuit Diagram (Sheet 10)

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
