Battery junction box

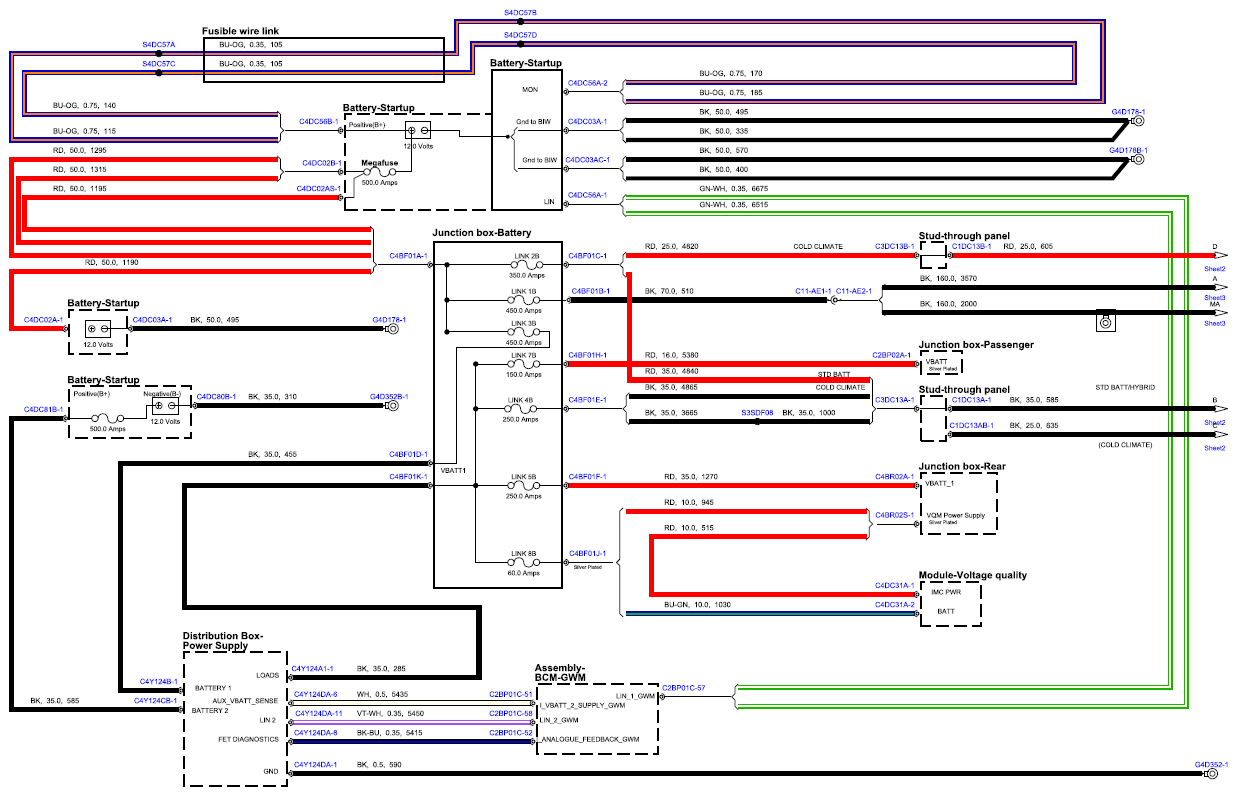

Fig 1: Battery Junction Box Circuit Diagram (Sheet 1)
G15554351Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

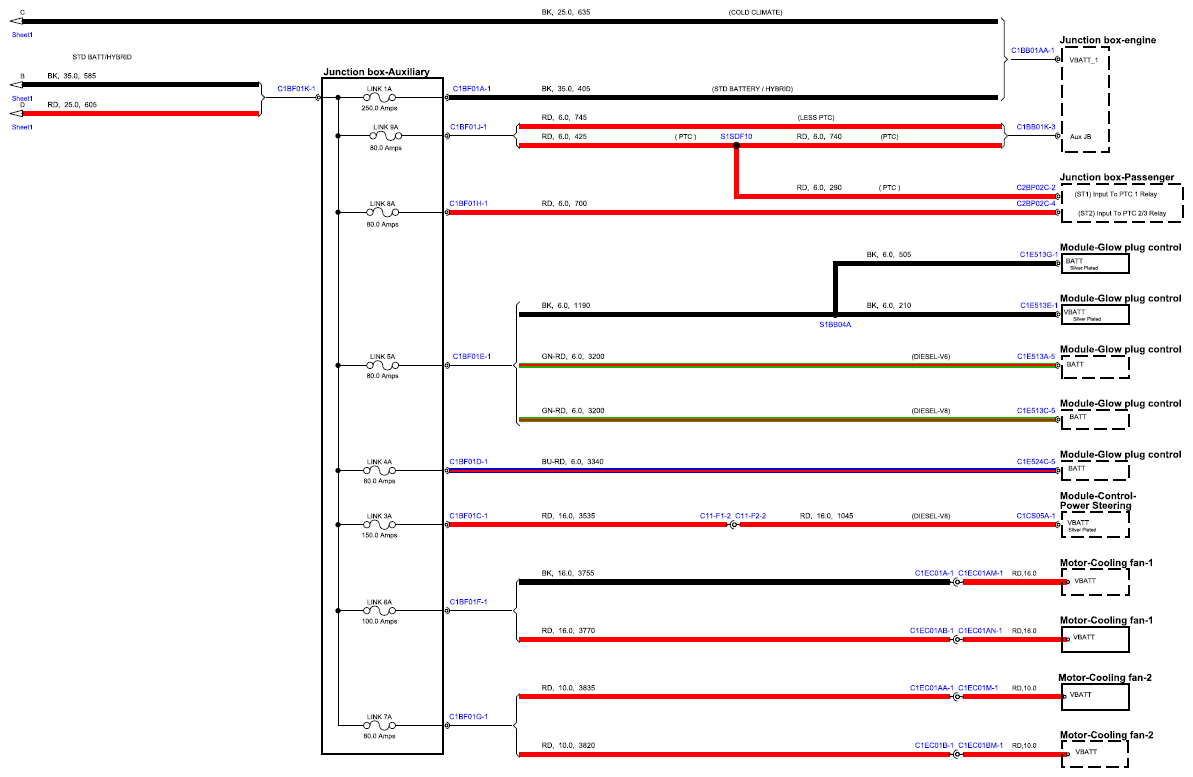

Fig 2: Battery Junction Box Circuit Diagram (Sheet 2)
G15554352Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

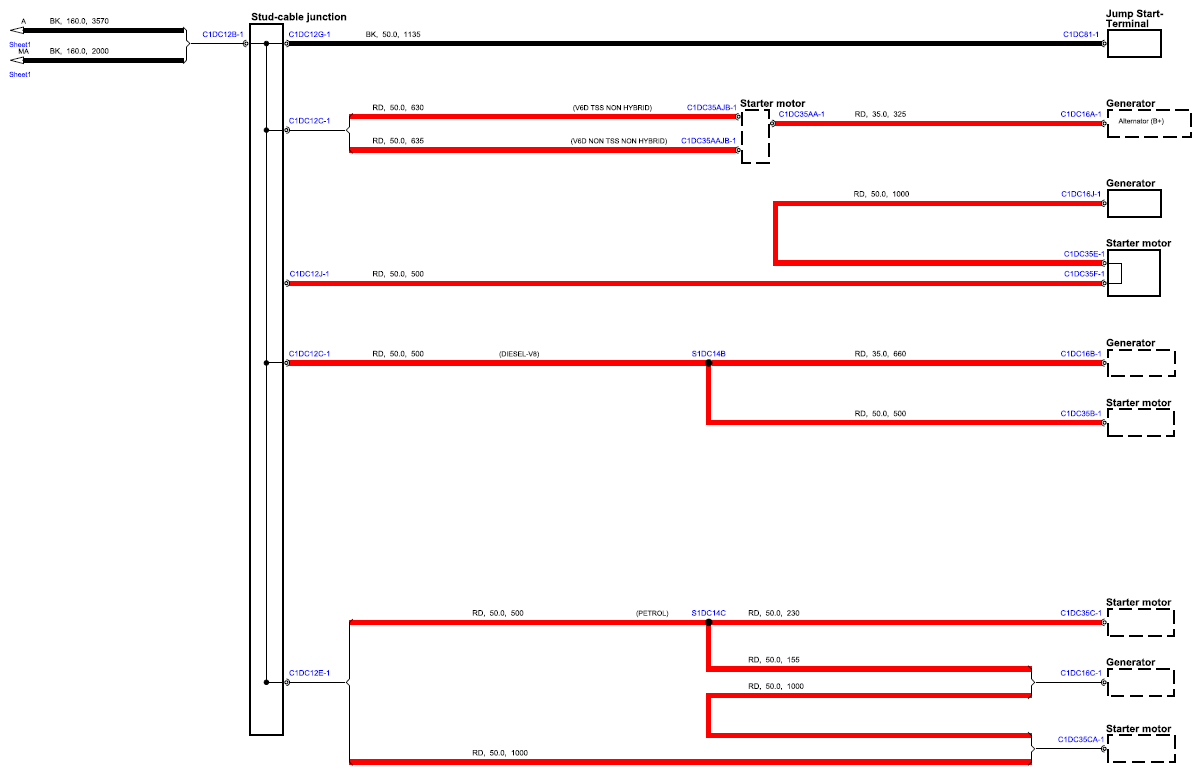

Fig 3: Battery Junction Box Circuit Diagram (Sheet 3)
G15554353Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
