OEM Wiring Diagrams -- Range Rover Sport L494
>>
413-13 Parking Aid
>>
Rear view camera
Rear view camera

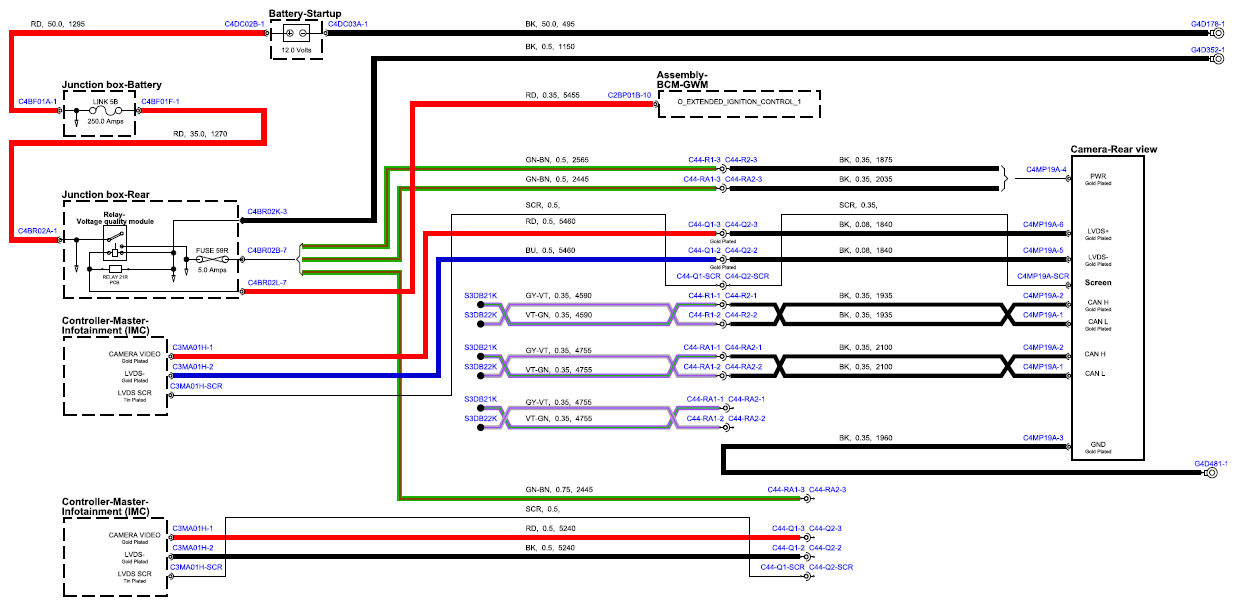

Fig 1: Rear View Camera Circuit Diagram
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
