Proximity camera system (7-Seat vehicles)

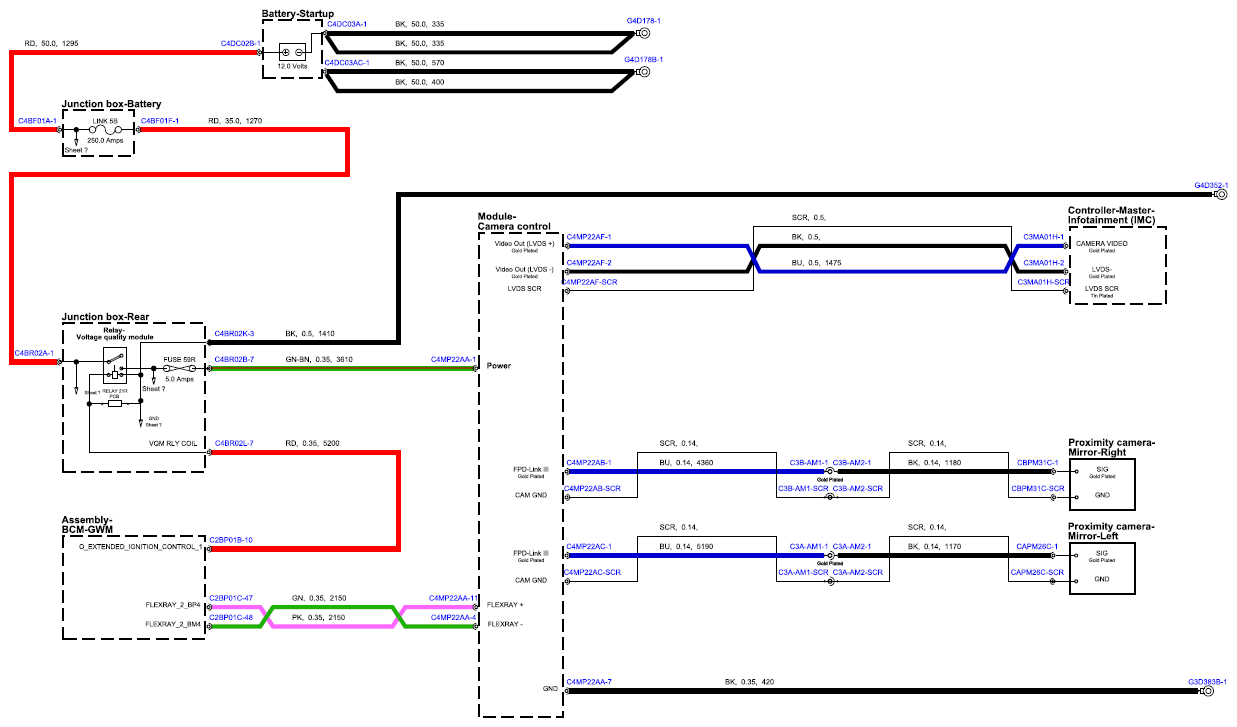

Fig 1: Proximity Camera System (7-Seat Vehicles) Circuit Diagram (Sheet 1)
G15554344Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

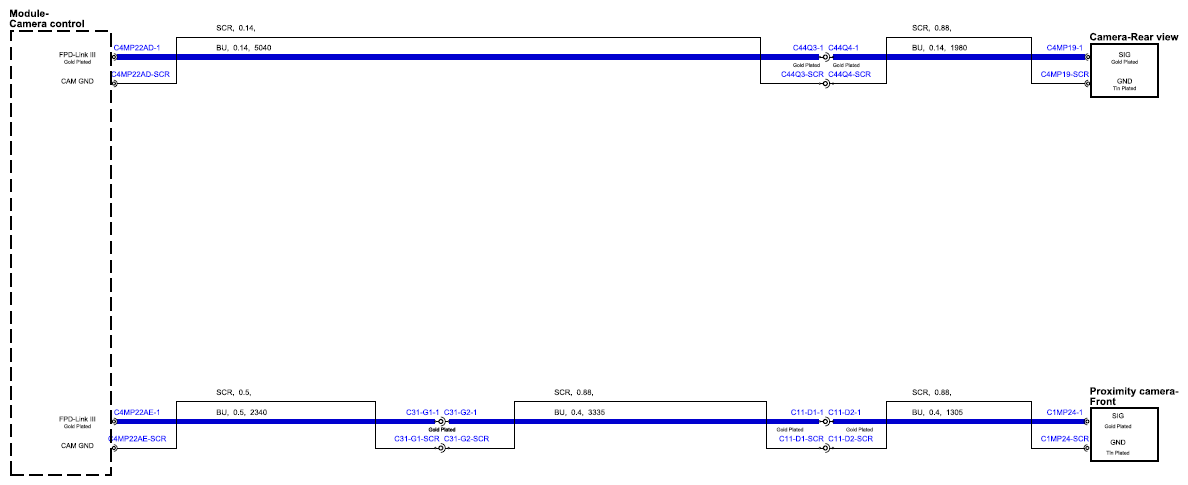

Fig 2: Proximity Camera System (7-Seat Vehicles) Circuit Diagram (Sheet 2)
G15554345Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
