Proximity camera system (5-Seat vehicles)

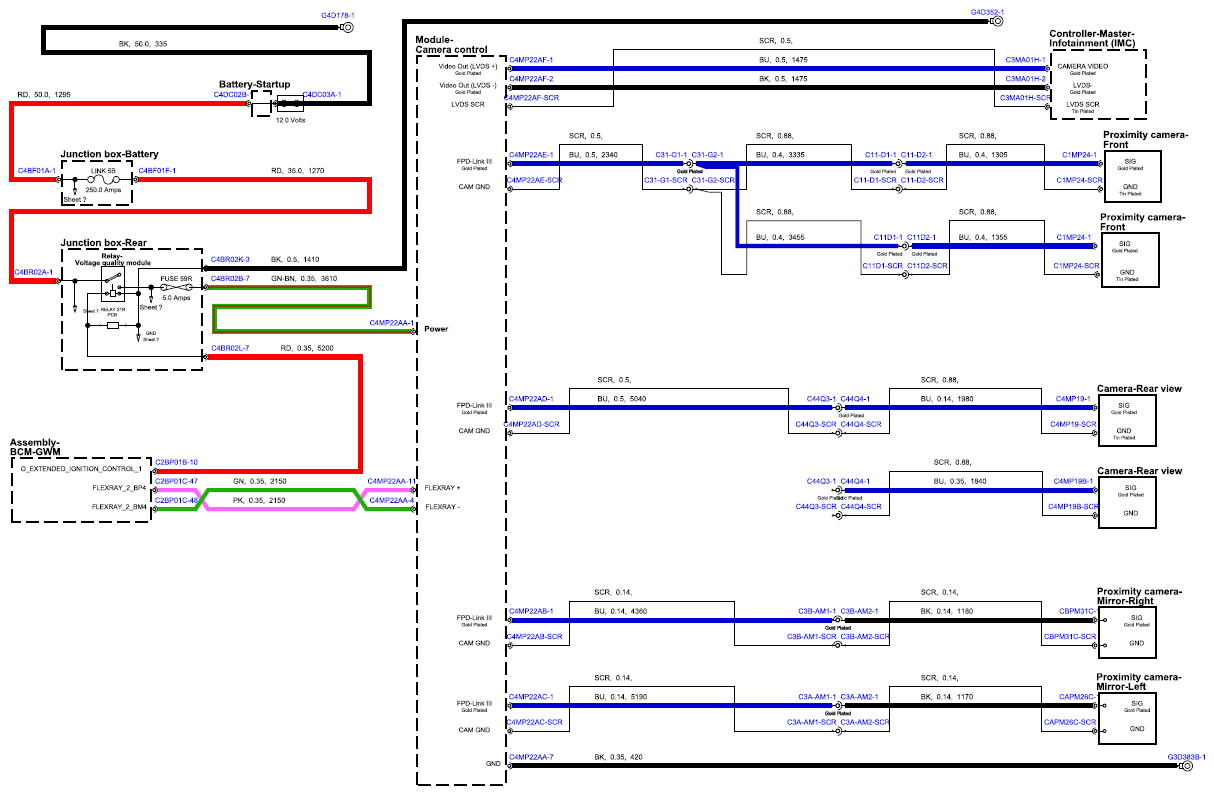

Fig 1: Proximity Camera System (5-Seat Vehicles) Circuit Diagram

G15554343

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
