Blind spot monitoring system (Range Rover Sport)

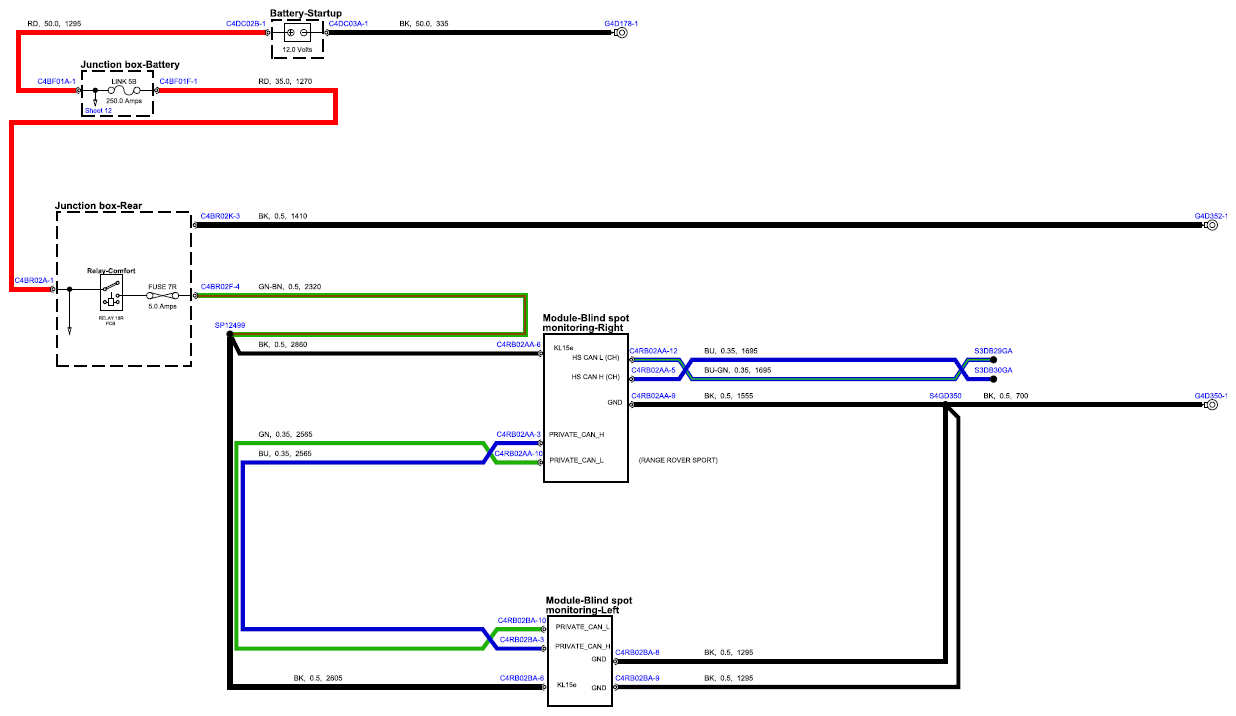

Fig 1: Blind Spot Monitoring System (Range Rover Sport) Circuit Diagram (Sheet 1)
G15554333Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

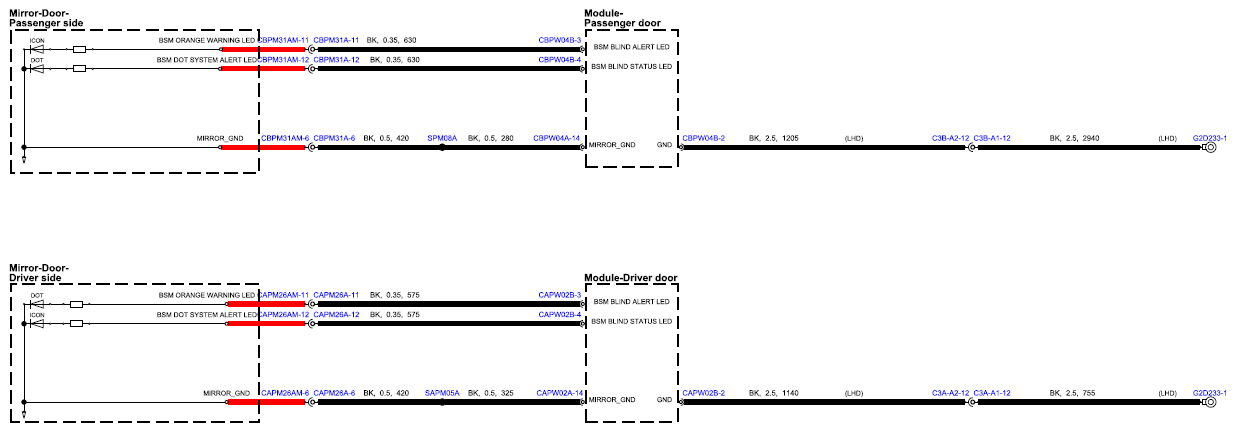

Fig 2: Blind Spot Monitoring System (Range Rover Sport) Circuit Diagram (Sheet 2)
G15554334Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
