413-06 Horn

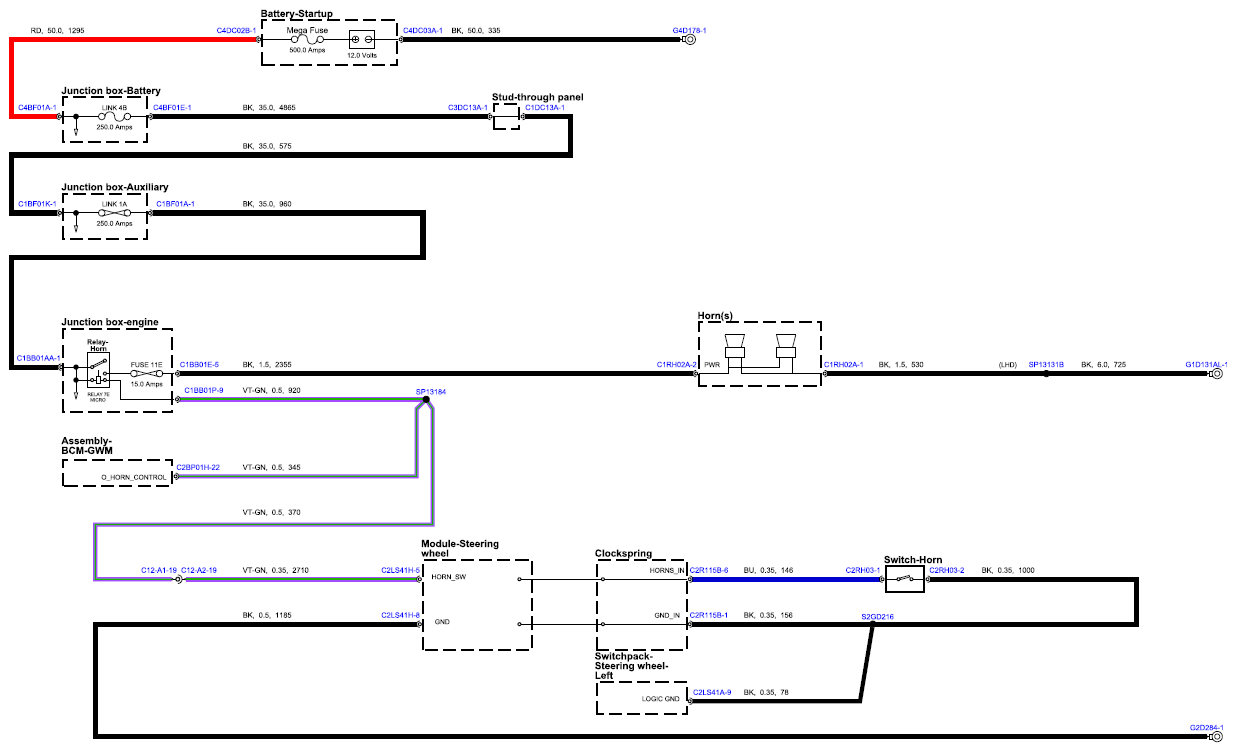

Fig 1: Horn Circuit Diagram (Sheet 1)

G15554324

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
