413-00 Instrument Cluster And Panel Illumination

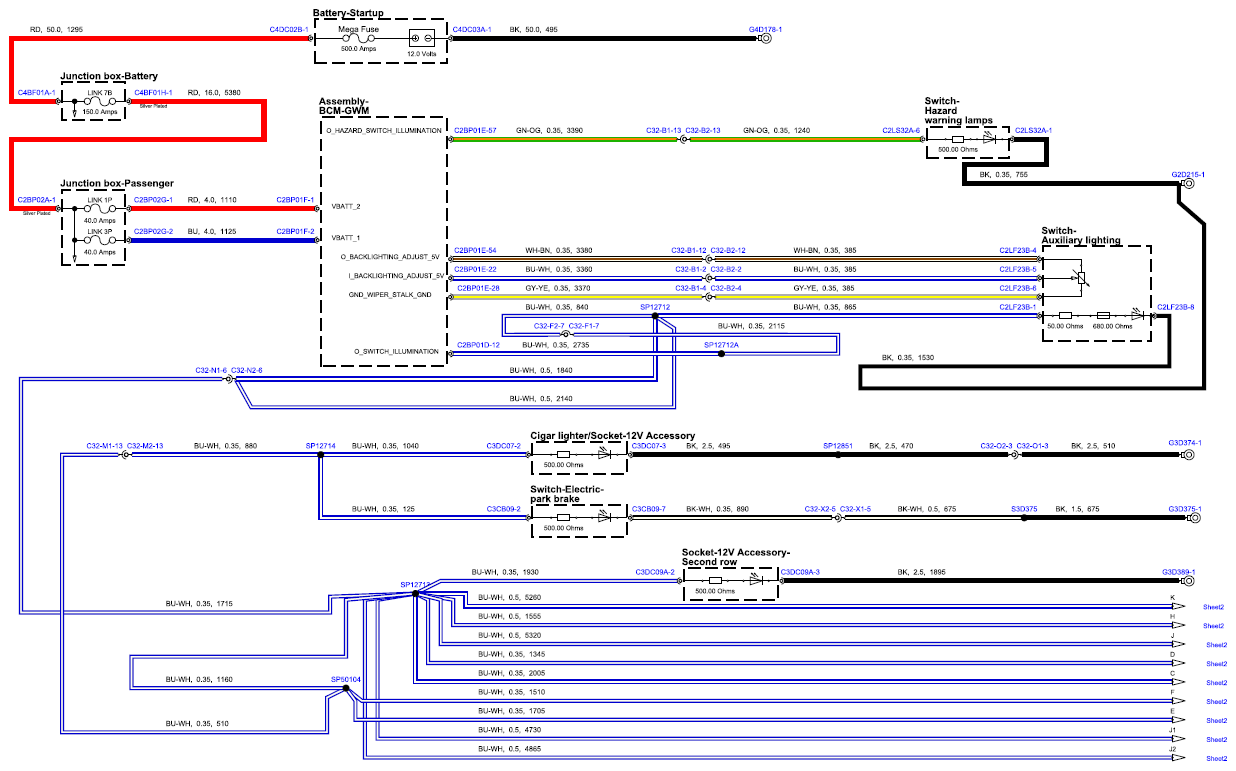

Fig 1: Instrument Cluster And Panel Illumination Circuit Diagram (Sheet 1)
G15554322Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

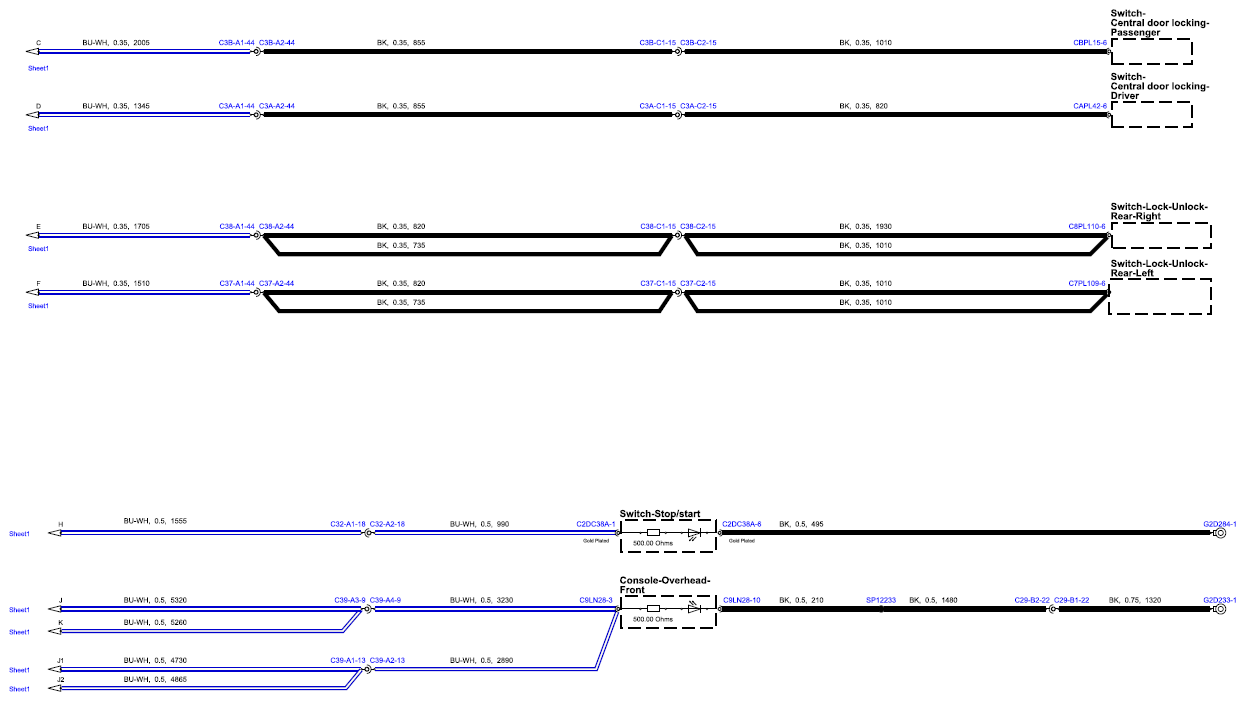

Fig 2: Instrument Cluster And Panel Illumination Circuit Diagram (Sheet 2)
G15554323Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
