Second Row Executive Seat - Climate controlled

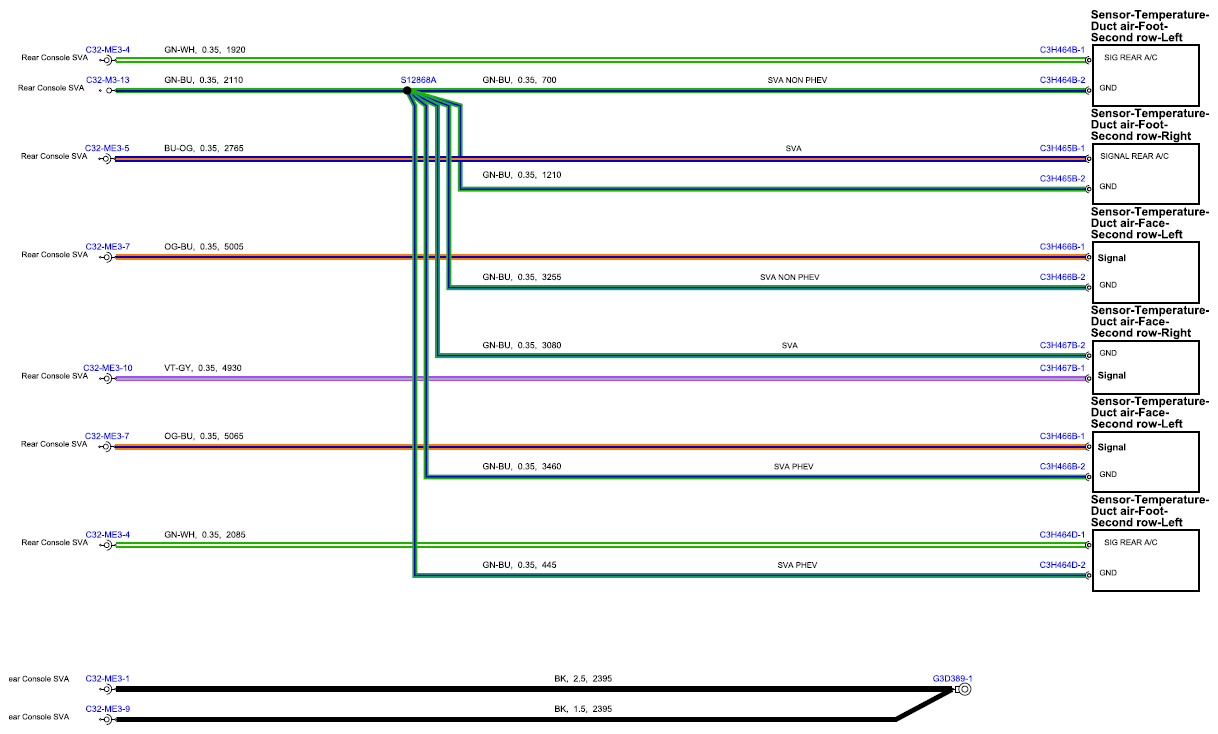

Fig 1: Second Row Executive Seat - Climate Controlled Circuit Diagram

G15554319

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
