OEM Wiring Diagrams -- Range Rover Sport L494
>>
412-02 Auxiliary Climate Control
>>
Heated rear window
Heated rear window

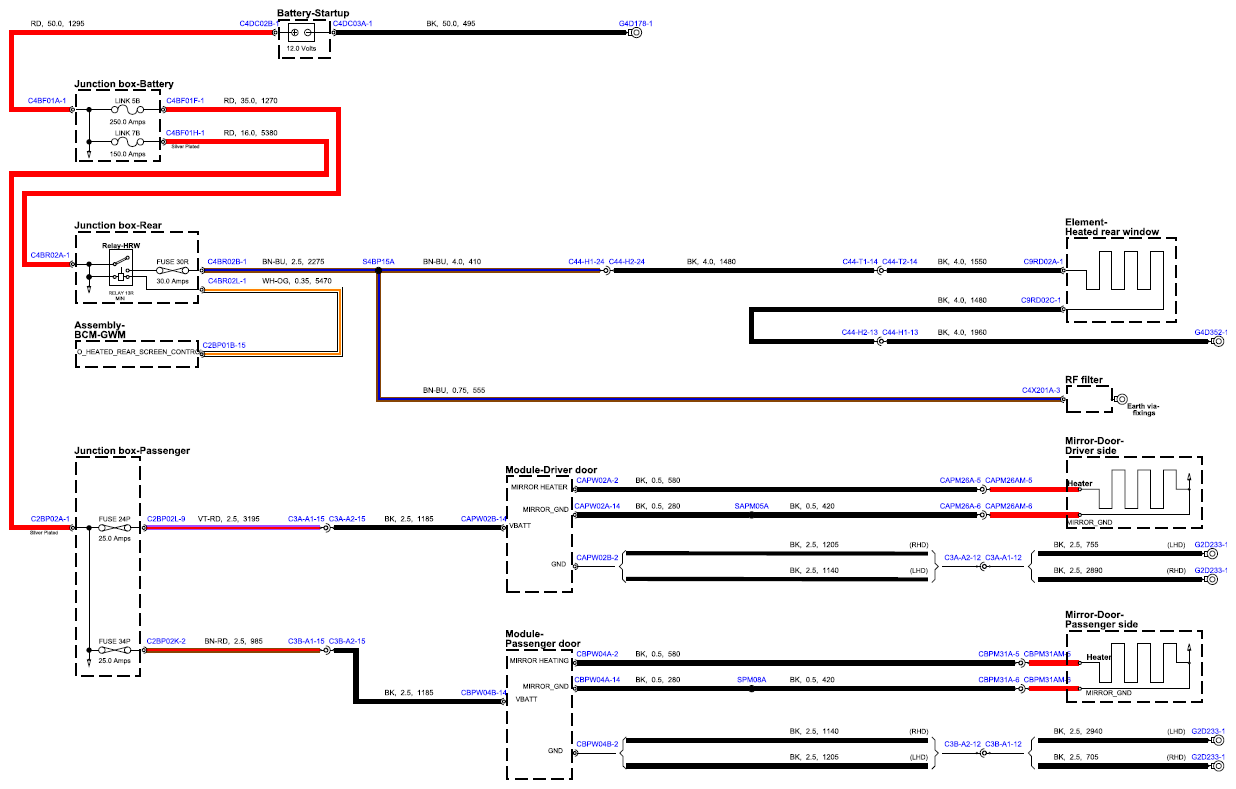

Fig 1: Heated Rear Window Circuit Diagram
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
