412-01 Climate Control: Notes

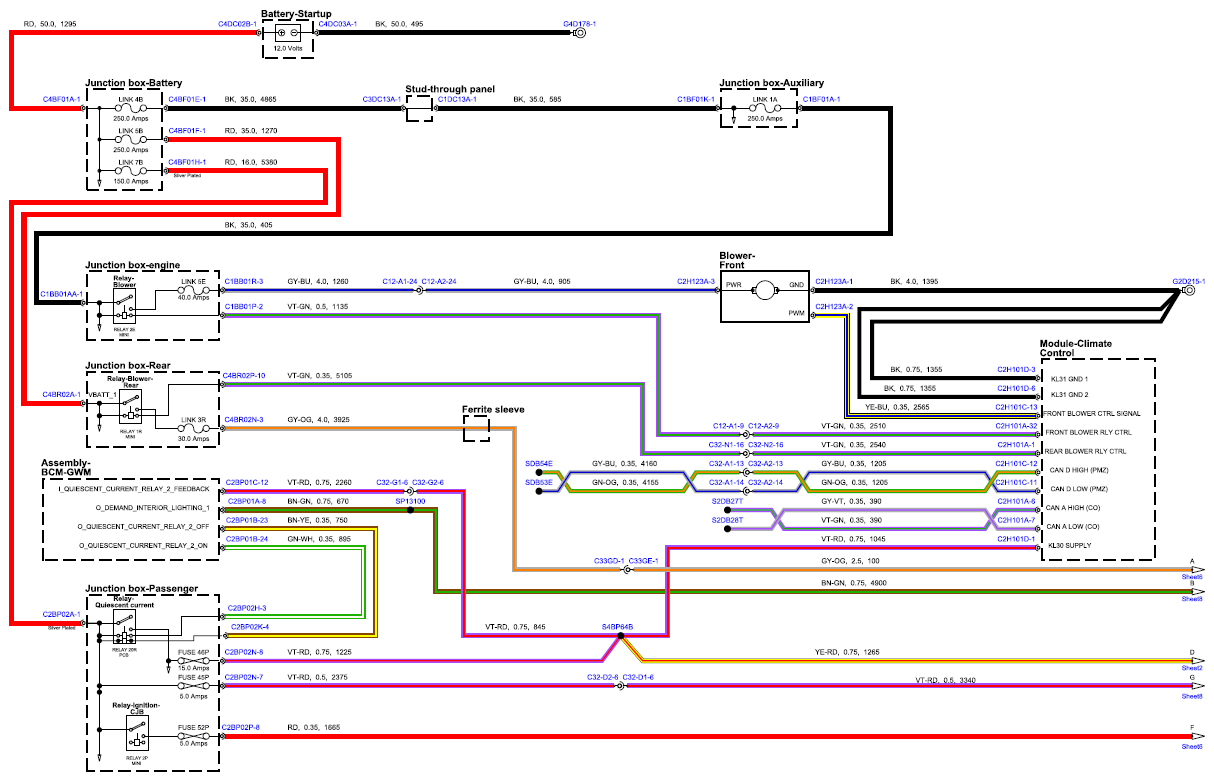

Fig 1: Climate Control Circuit Diagram (Sheet 1)

G15554300

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

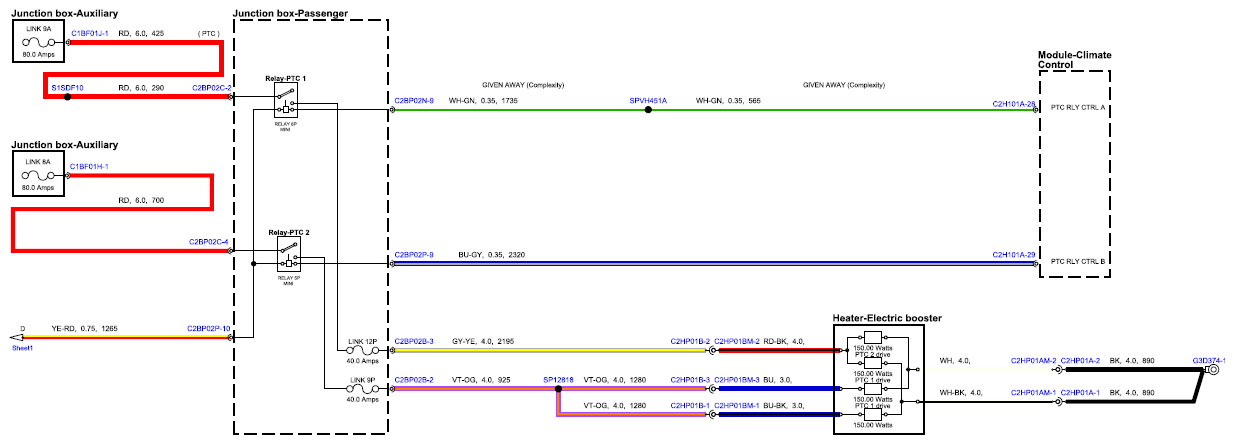

Fig 2: Climate Control Circuit Diagram (Sheet 2)

G15554301

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

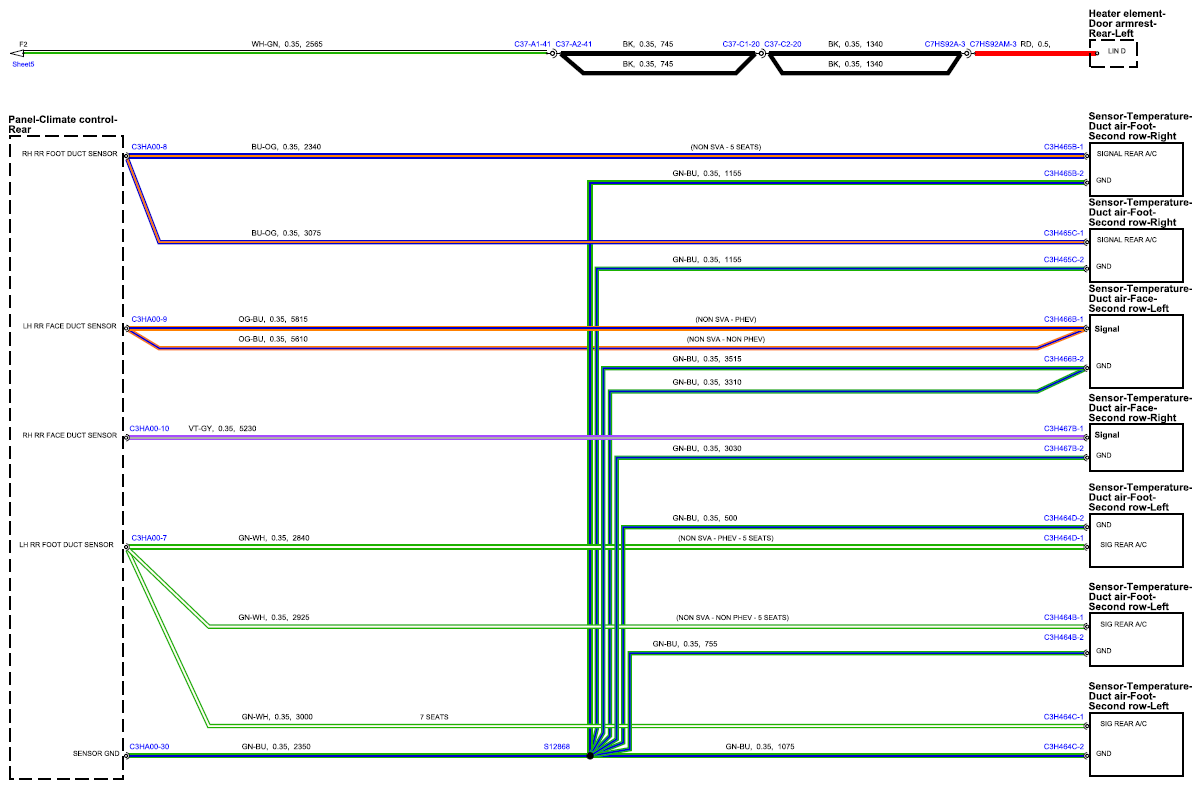

Fig 3: Climate Control Circuit Diagram (Sheet 3)

G15554302

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

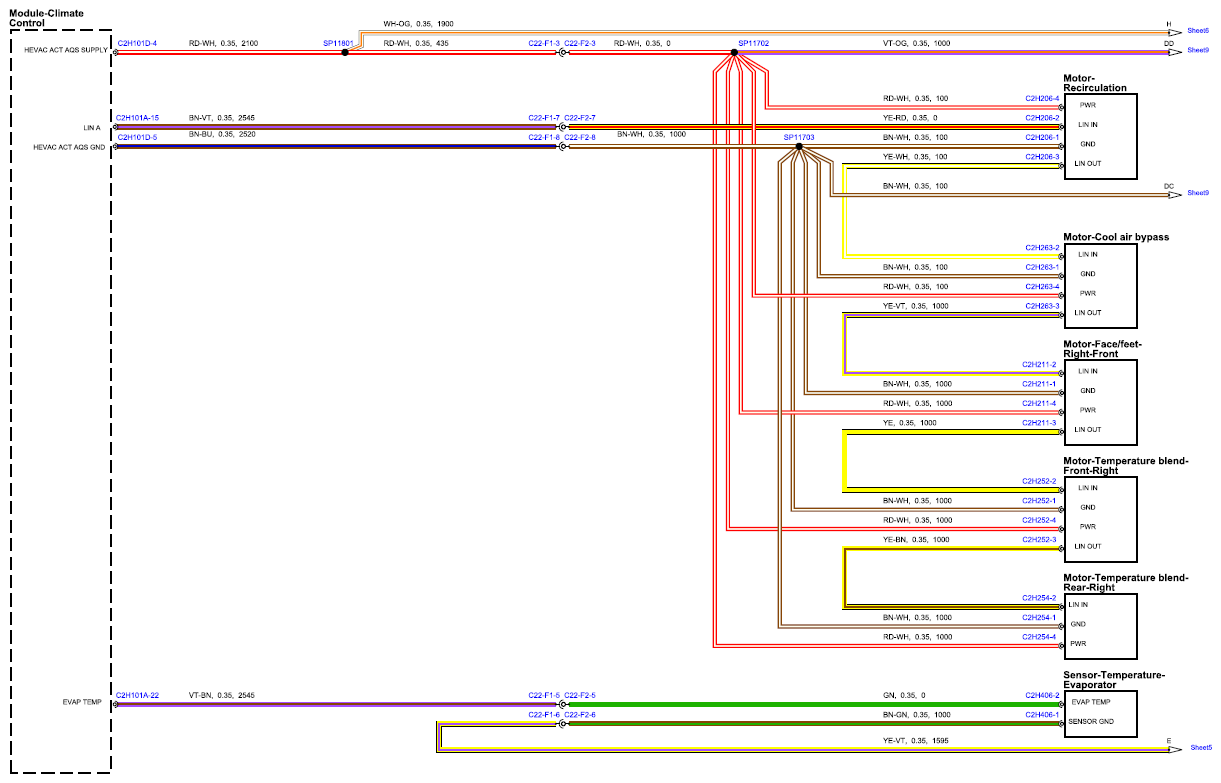

Fig 4: Climate Control Circuit Diagram (Sheet 4)

G15554303

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

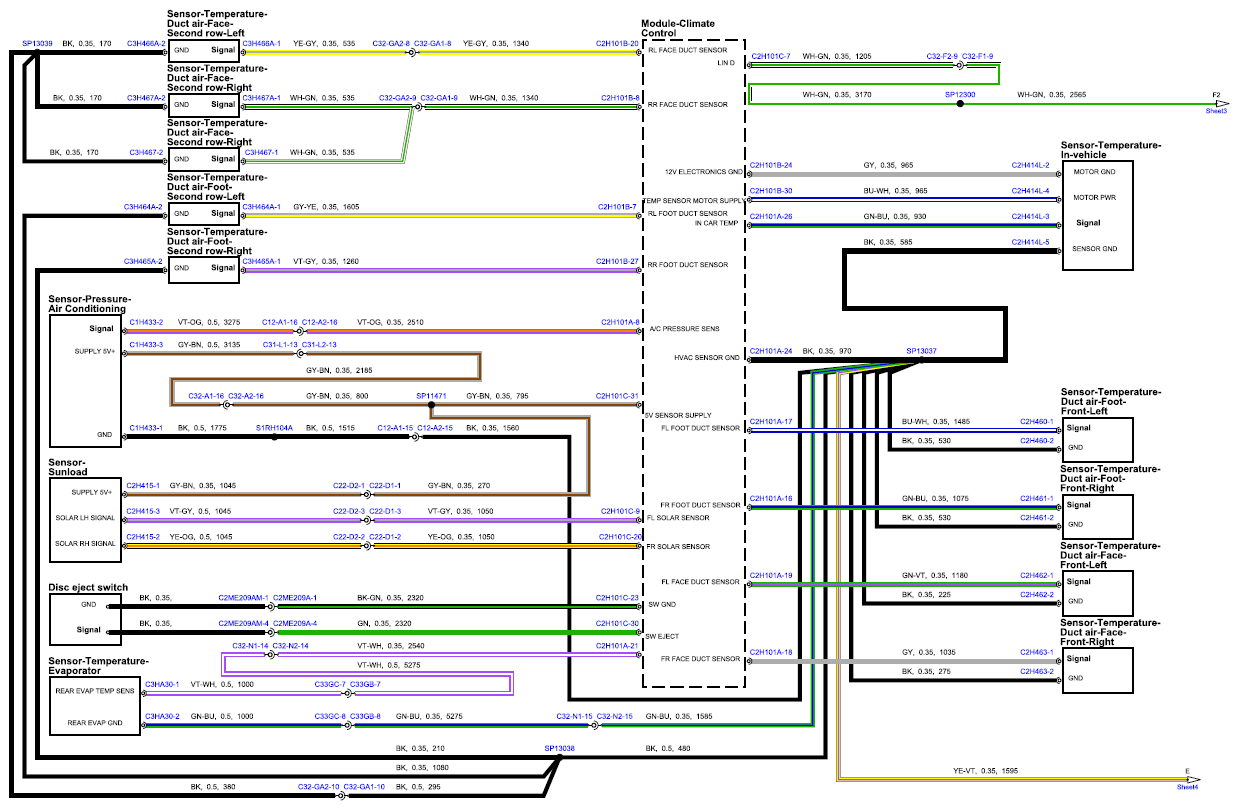

Fig 5: Climate Control Circuit Diagram (Sheet 5)

G14932626

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

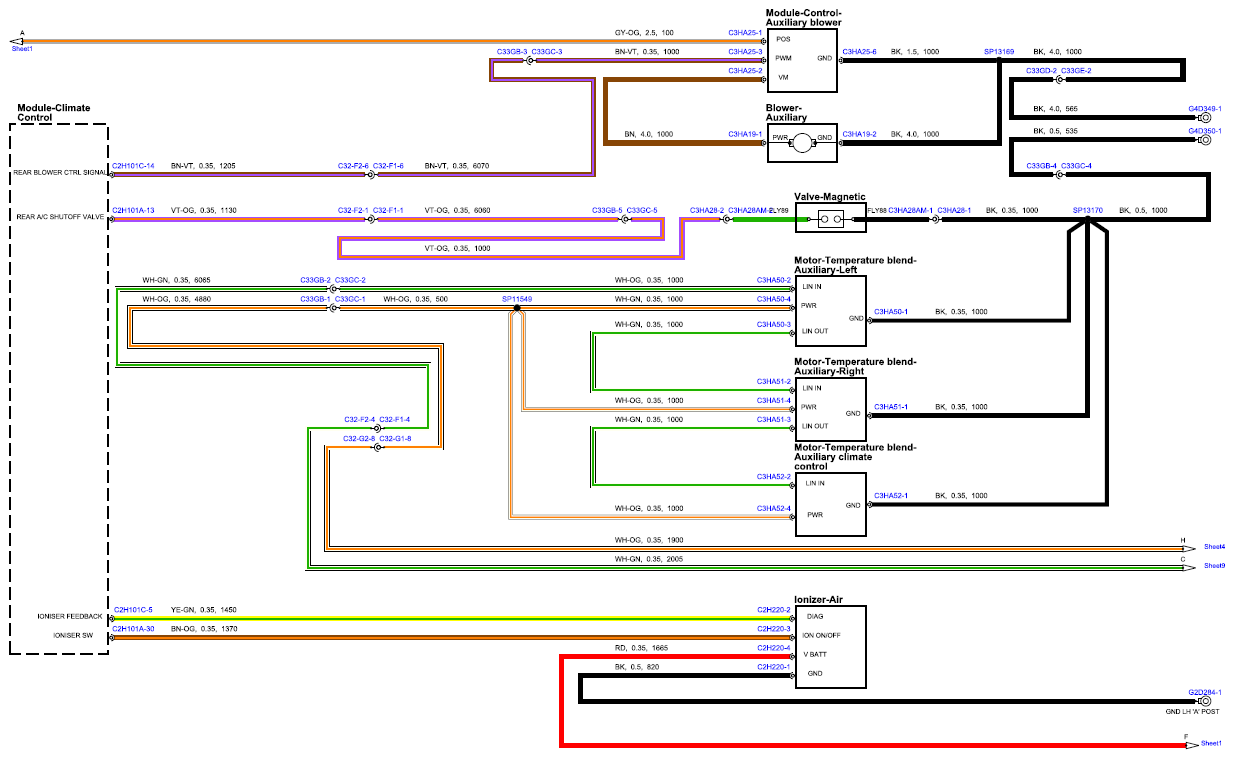

Fig 6: Climate Control Circuit Diagram (Sheet 6)

G15554304

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

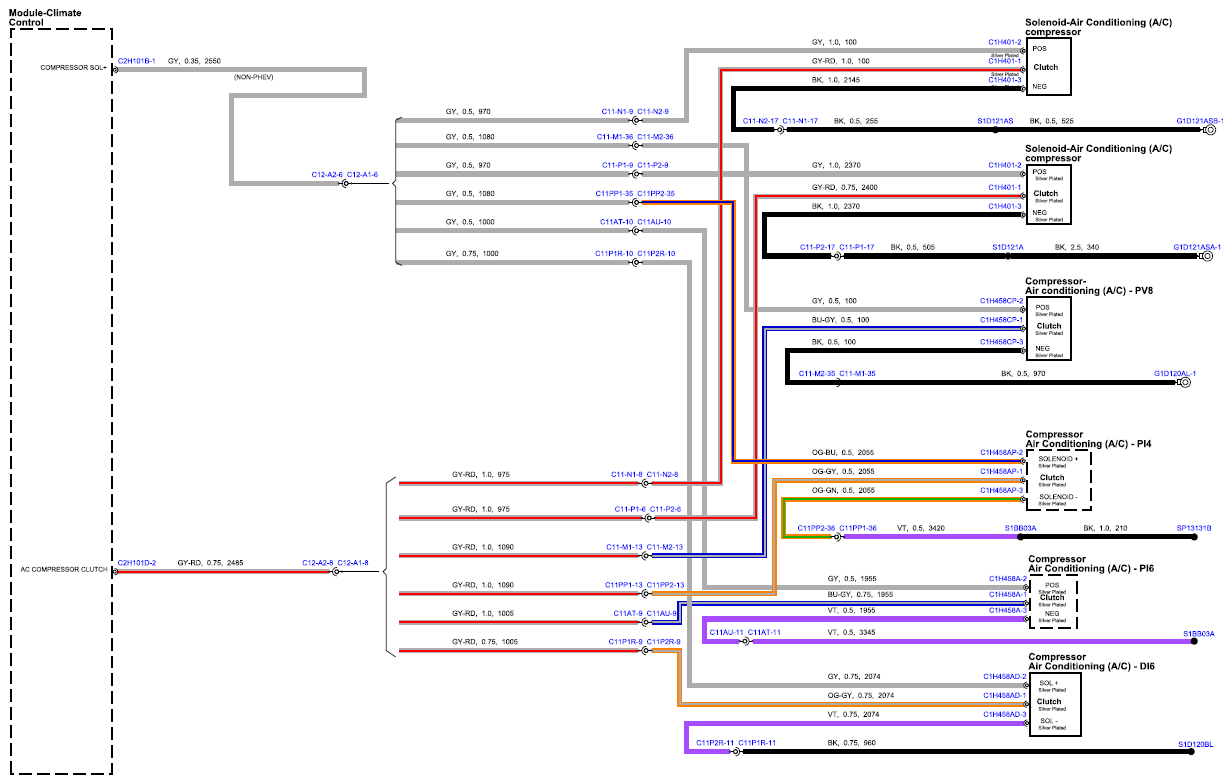

Fig 7: Climate Control Circuit Diagram (Sheet 7)

G15554305

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

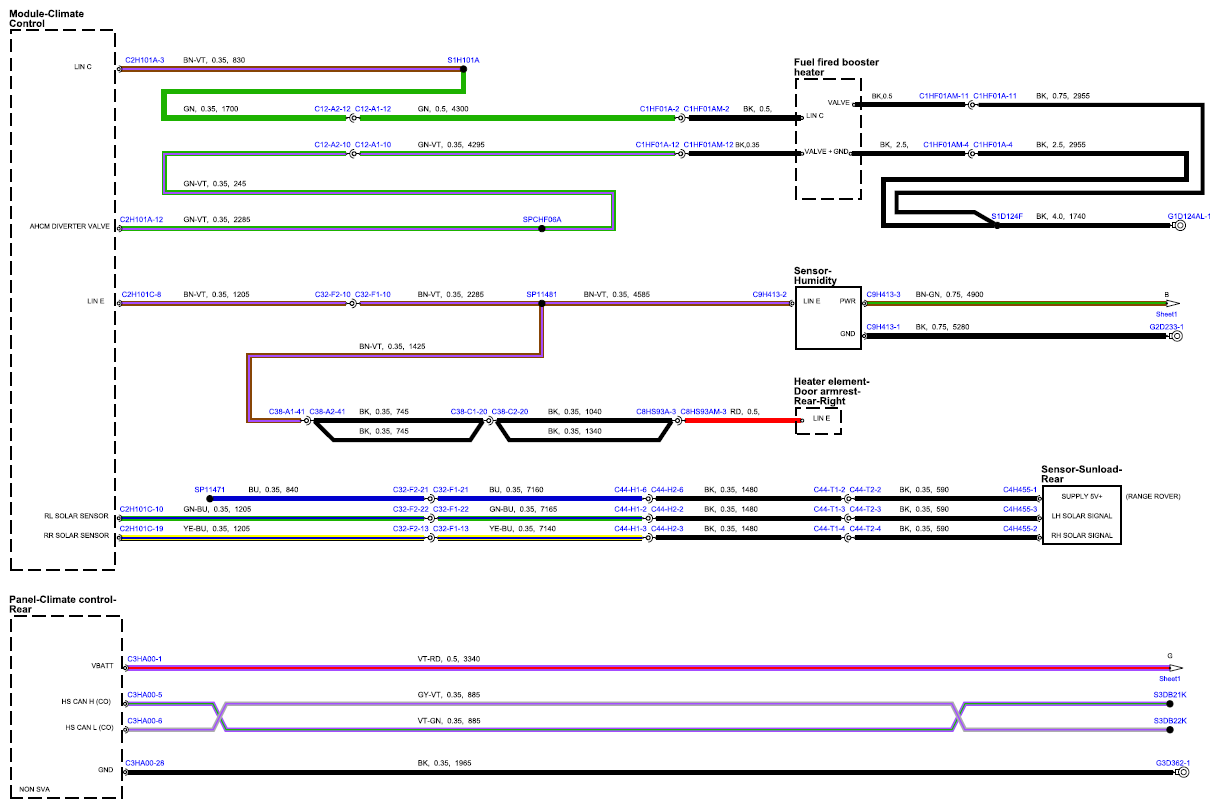

Fig 8: Climate Control Circuit Diagram (Sheet 8)

G15554306

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

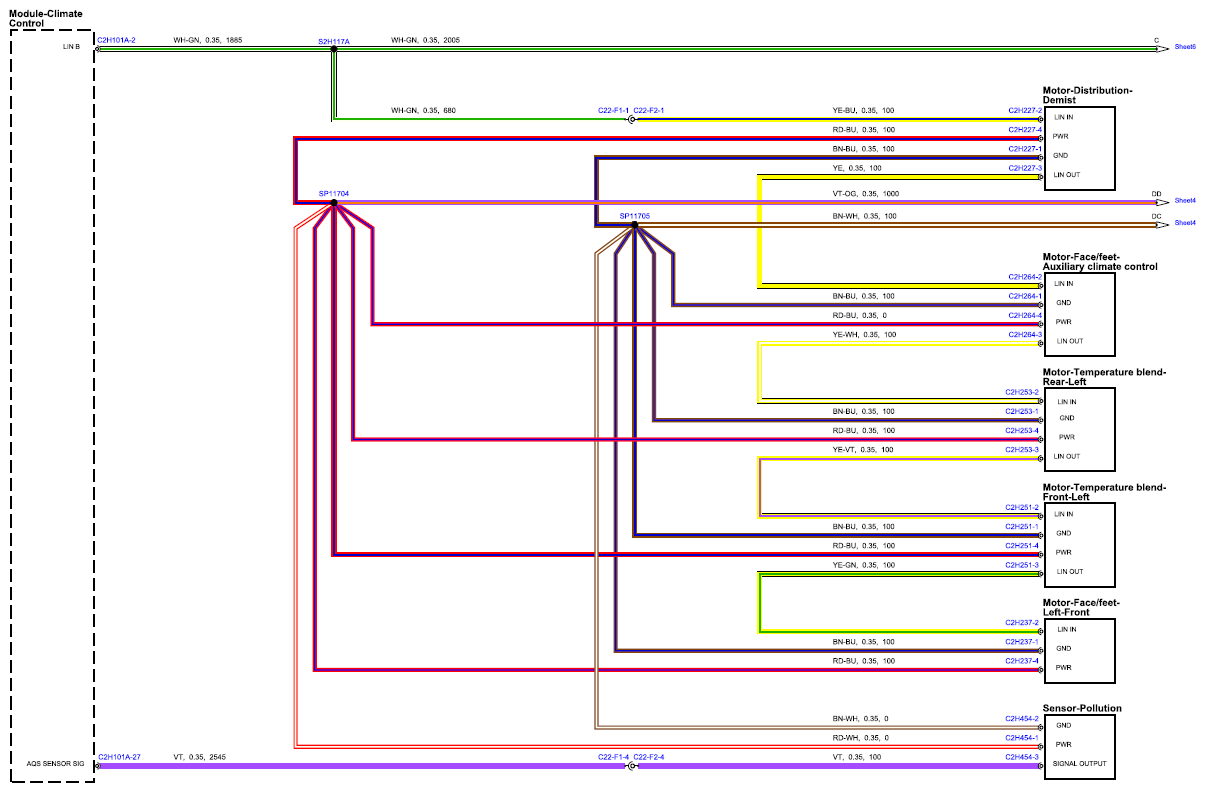

Fig 9: Climate Control Circuit Diagram (Sheet 9)

G15554307

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
