OEM Wiring Diagrams -- Range Rover Sport L494
>>
310-03 Speed Control
310-03 Speed Control

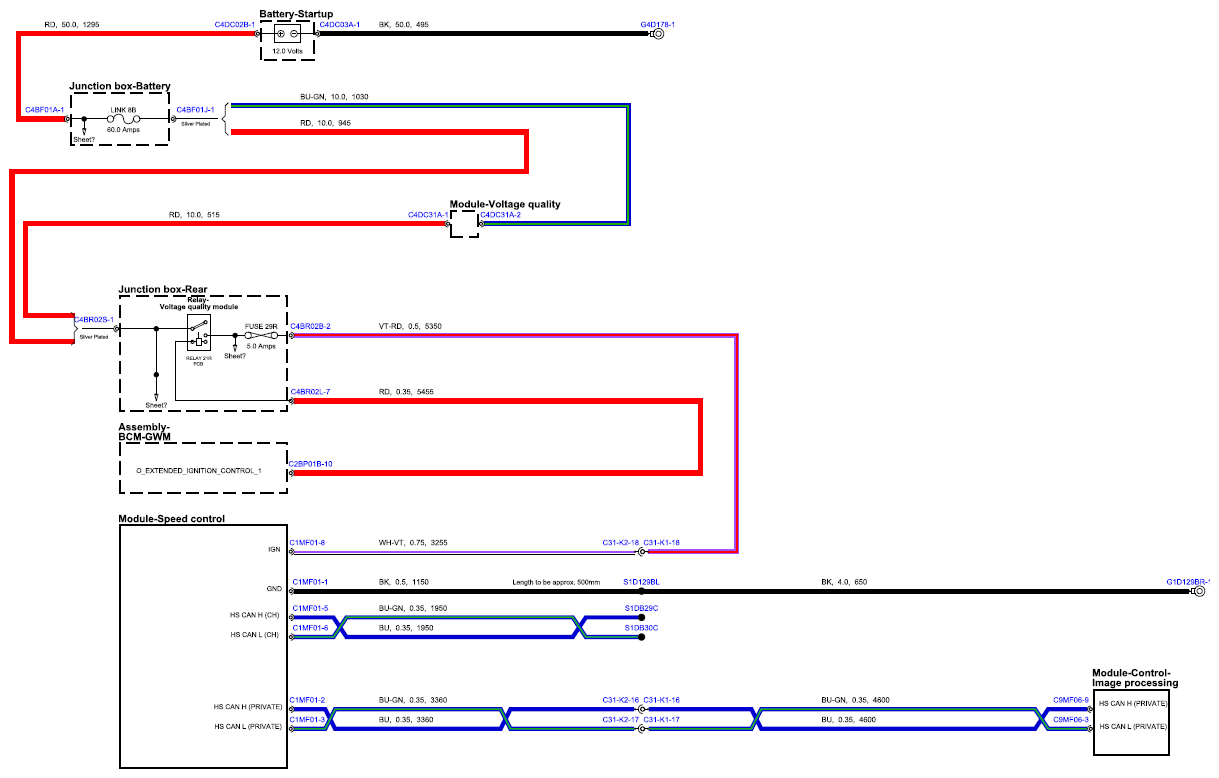

Fig 1: Speed Control Circuit Diagram
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
