310-01 Fuel Tank And Fuel Lines: Pi6

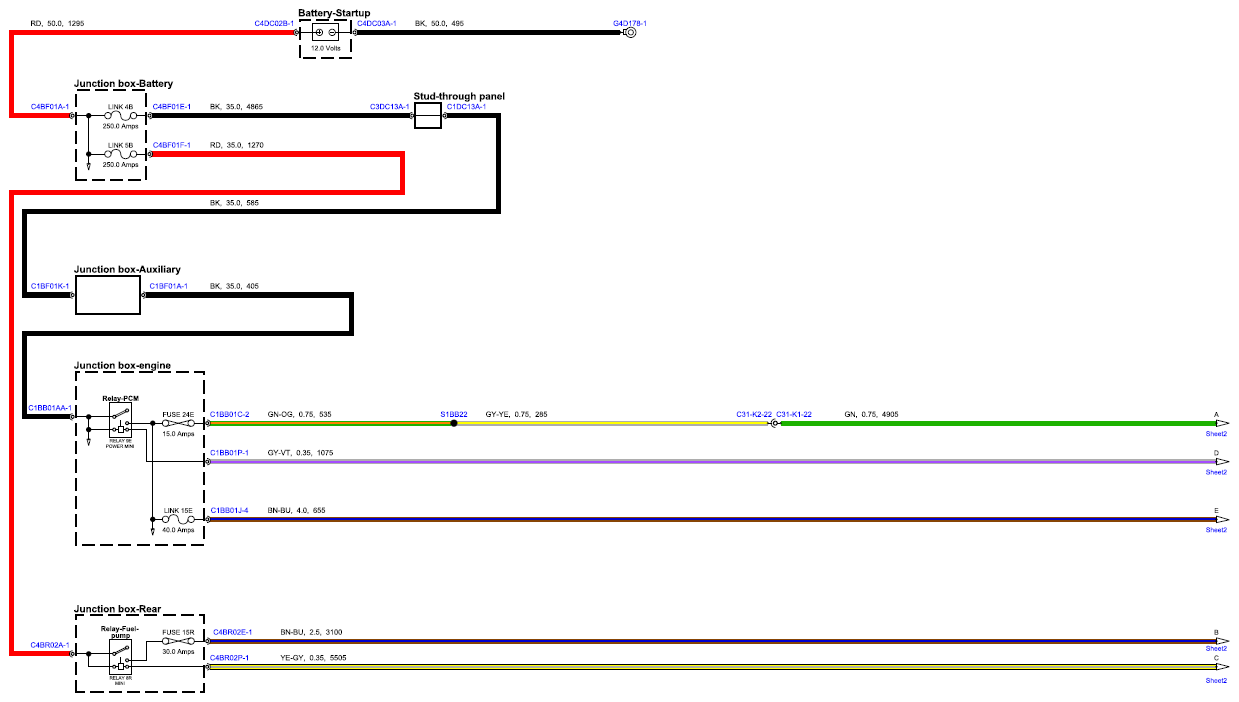

Fig 1: Fuel Tank And Fuel Lines PI6 Circuit Diagram (Sheet 1)
G15554295Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

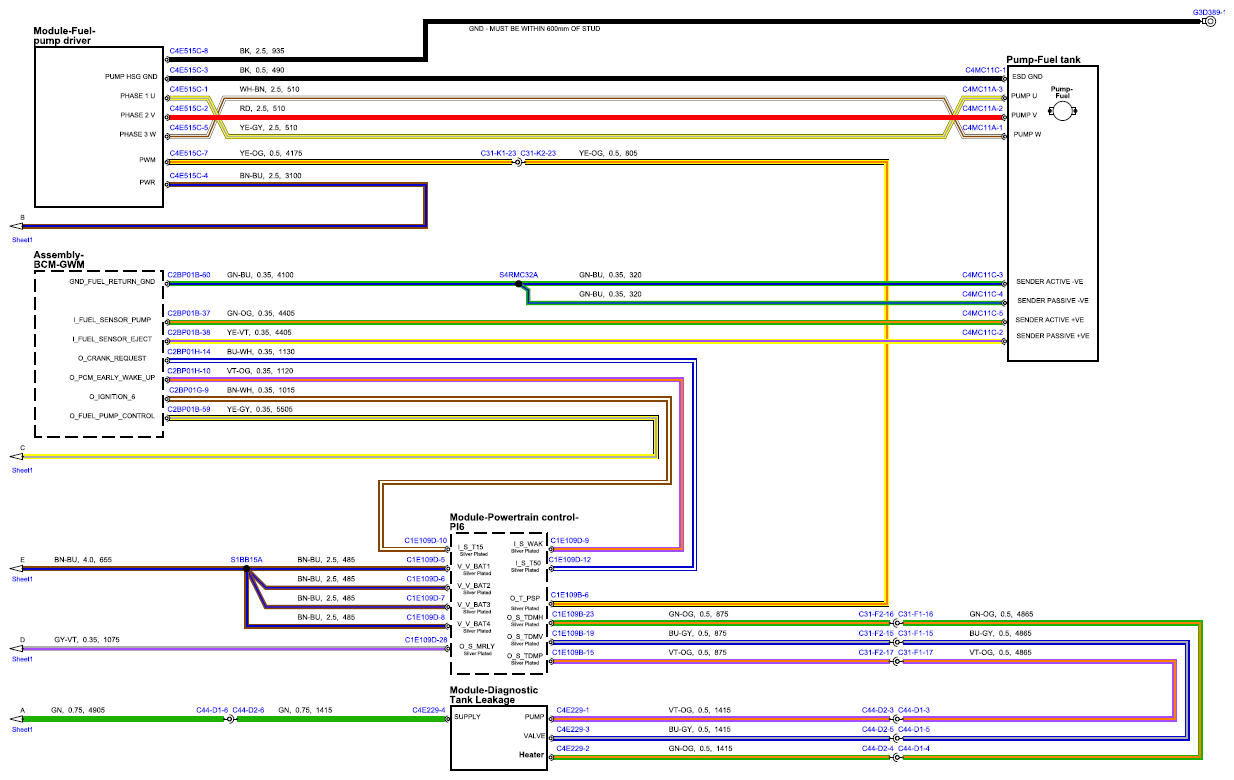

Fig 2: Fuel Tank And Fuel Lines PI6 Circuit Diagram (Sheet 2)
G15554296Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
