310-01 Fuel Tank And Fuel Lines: Pi4

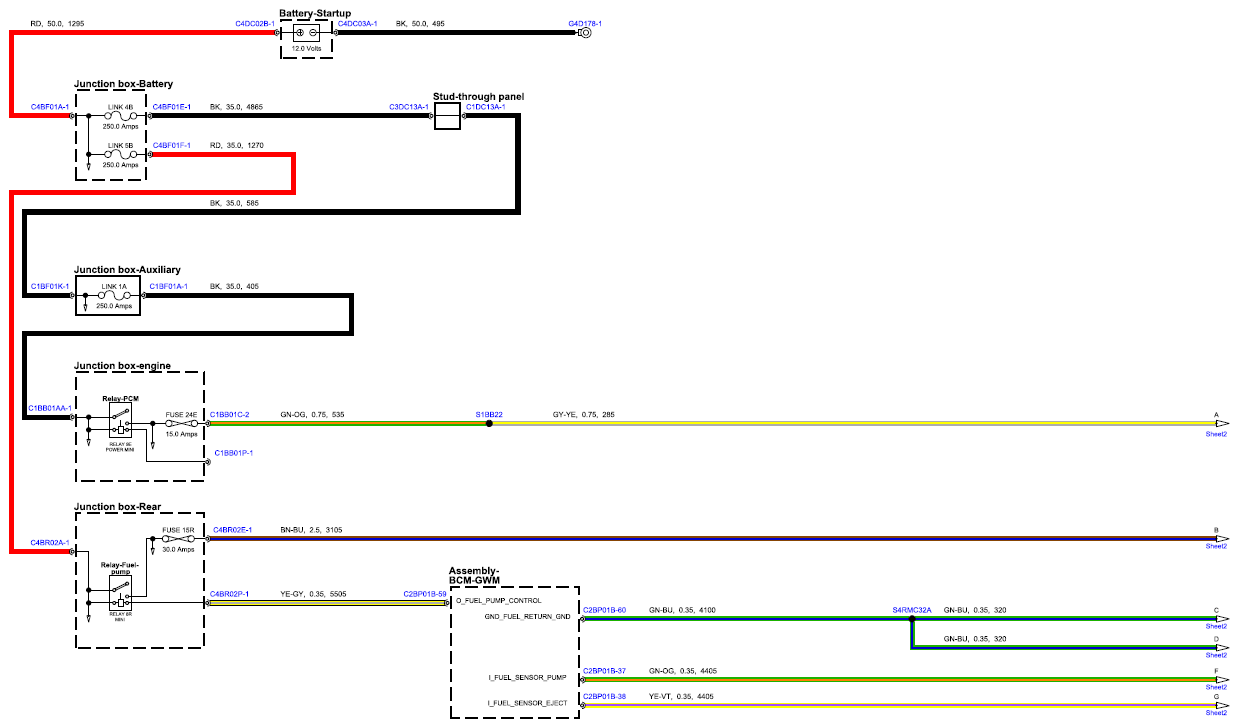

Fig 1: Fuel Tank And Fuel Lines PI4 Circuit Diagram (Sheet 1)
G15554291Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

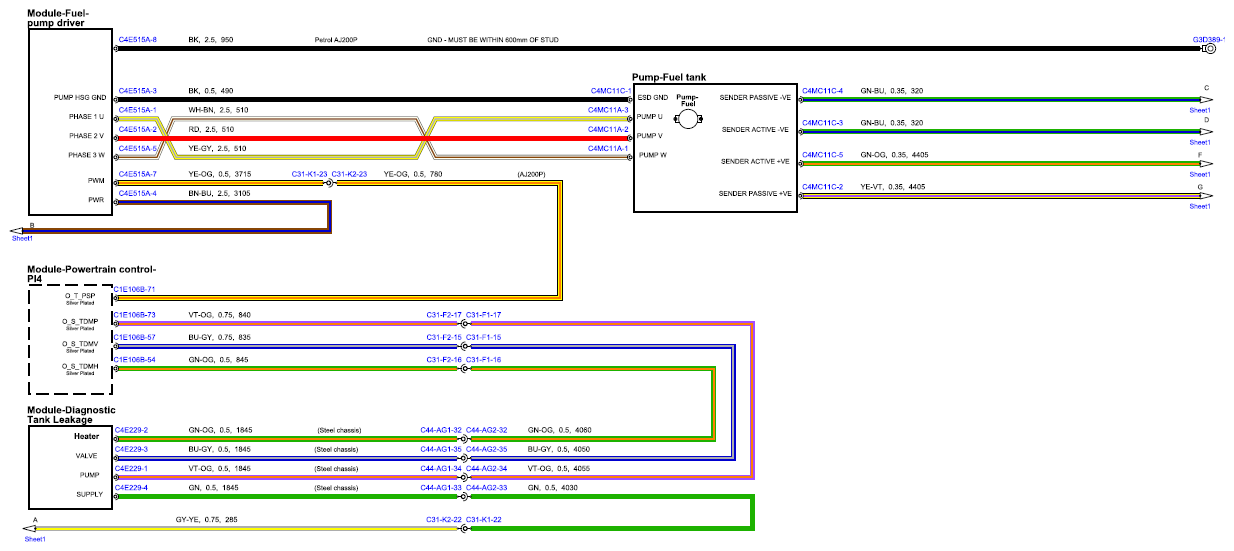

Fig 2: Fuel Tank And Fuel Lines PI4 Circuit Diagram (Sheet 2)
G15554292Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
