310-01 Fuel Tank And Fuel Lines: Di6

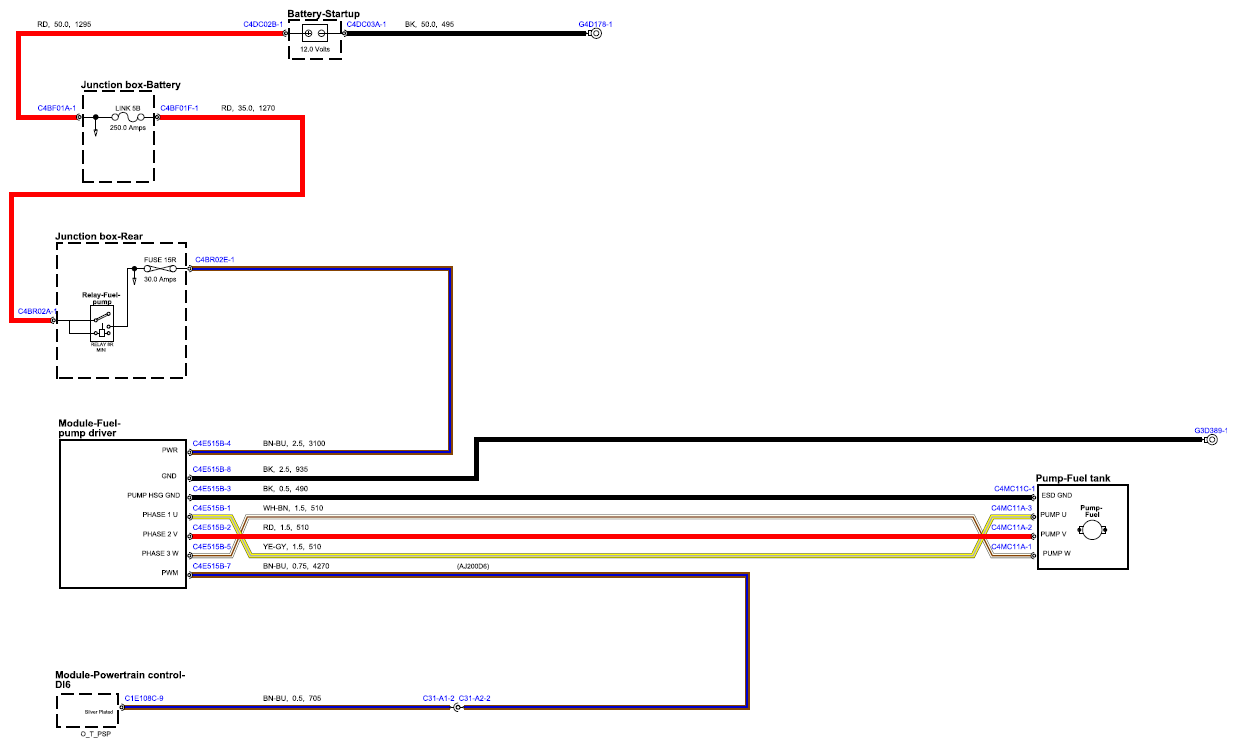

Fig 1: Fuel Tank And Fuel Lines DI6 Circuit Diagram

G15554286

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
