OEM Wiring Diagrams -- Range Rover Sport L494
>>
308-07 Four Wheel Drive Systems
>>
Transfer case - Diesel
Transfer case - Diesel

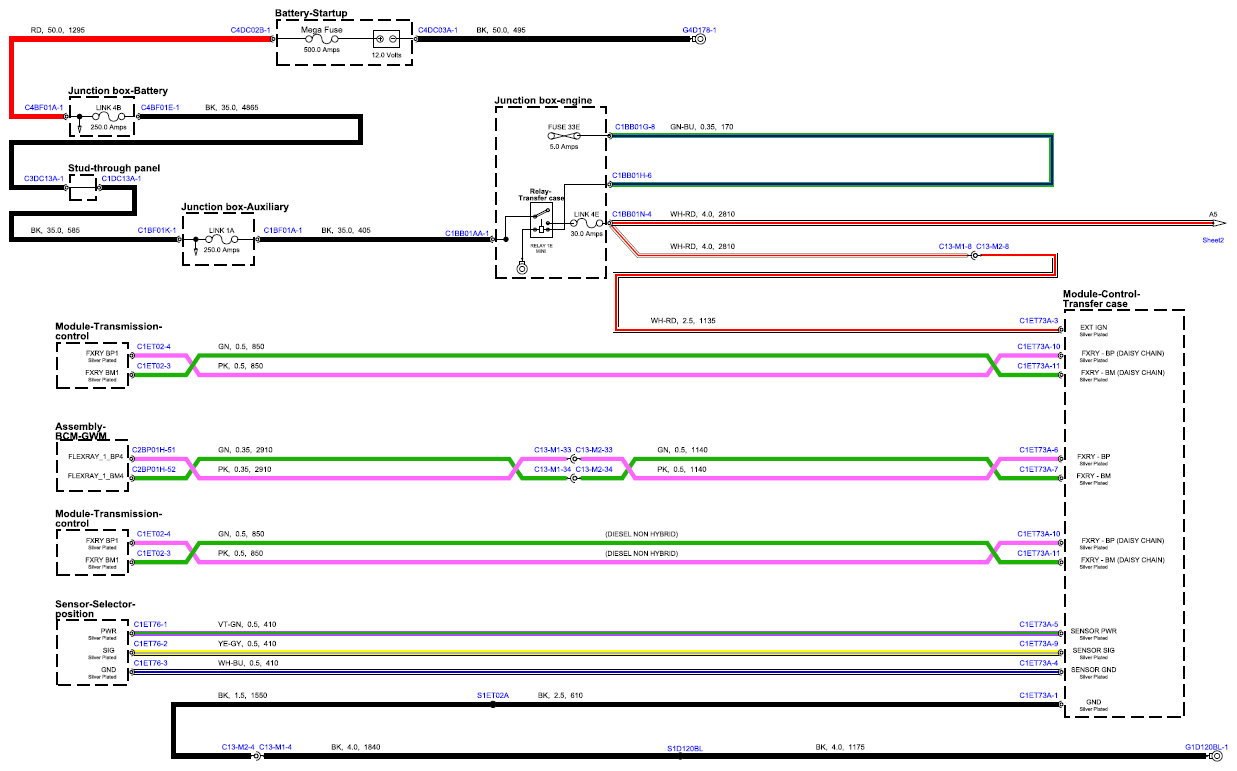

Fig 1: Transfer Case - Diesel Circuit Diagram (Sheet 1)
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

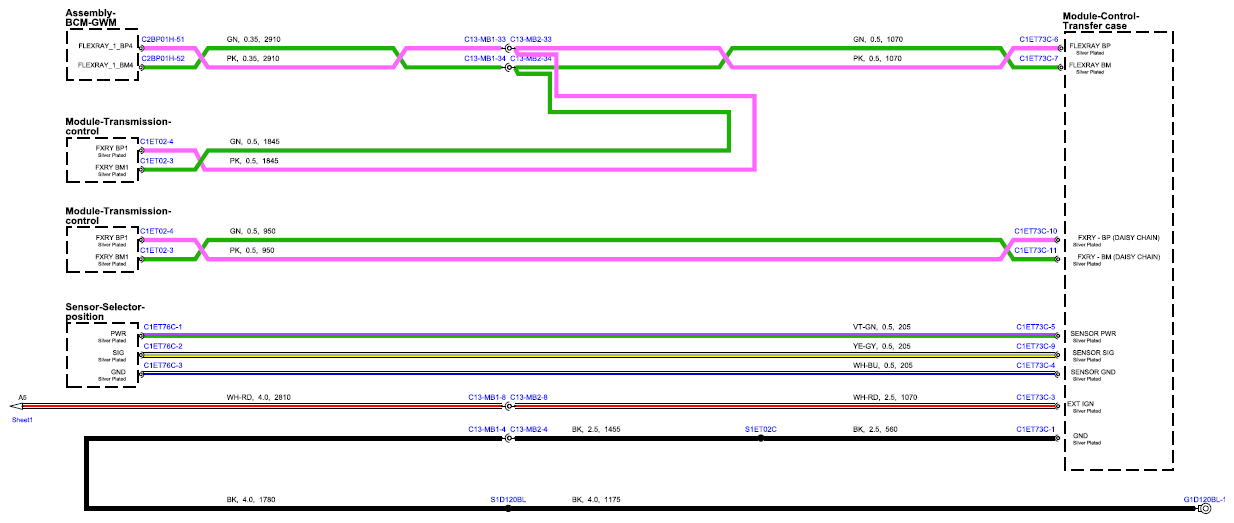

Fig 2: Transfer Case - Diesel Circuit Diagram (Sheet 2)
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
