OEM Wiring Diagrams -- Range Rover Sport L494
>>
307-01 Automatic Transmission
>>
Range Rover Sport
Range Rover Sport

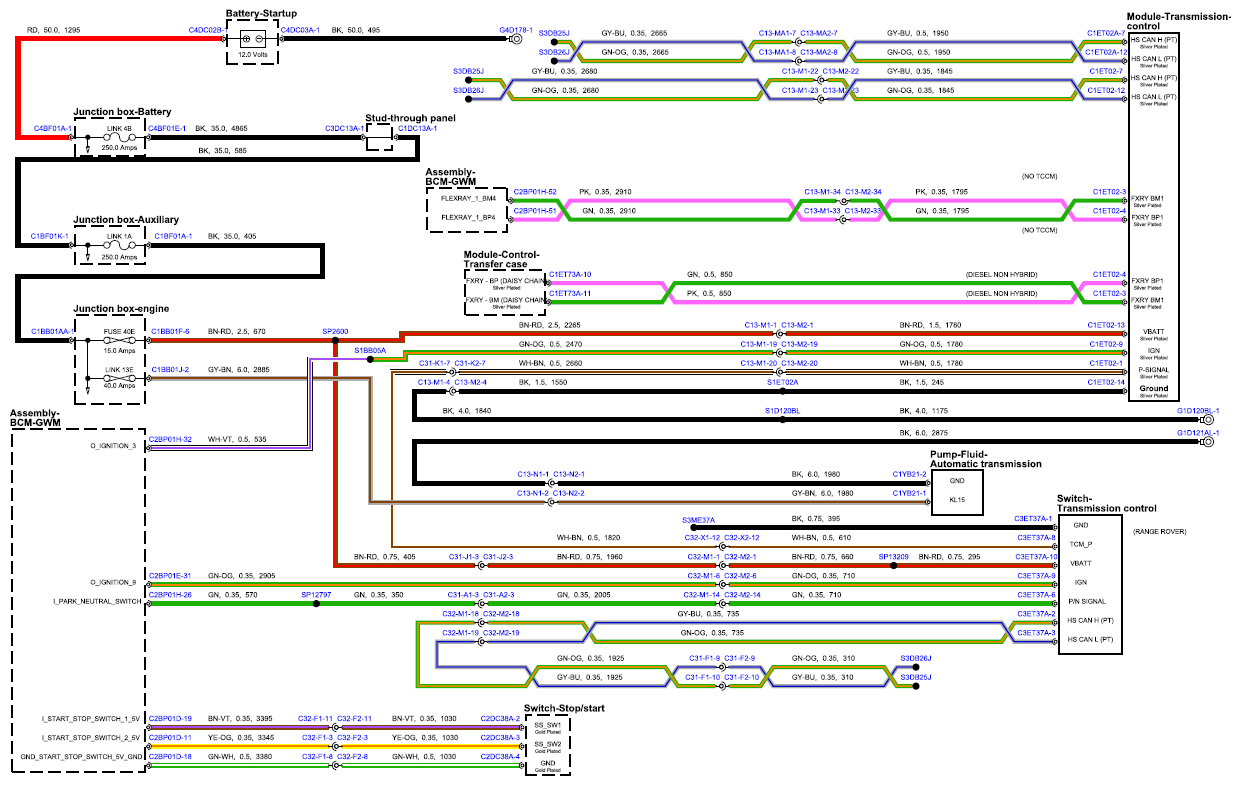

Fig 1: Automatic Transmission (Range Rover Sport) Circuit Diagram
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
