303-14B Electronic Engine Controls - PV8

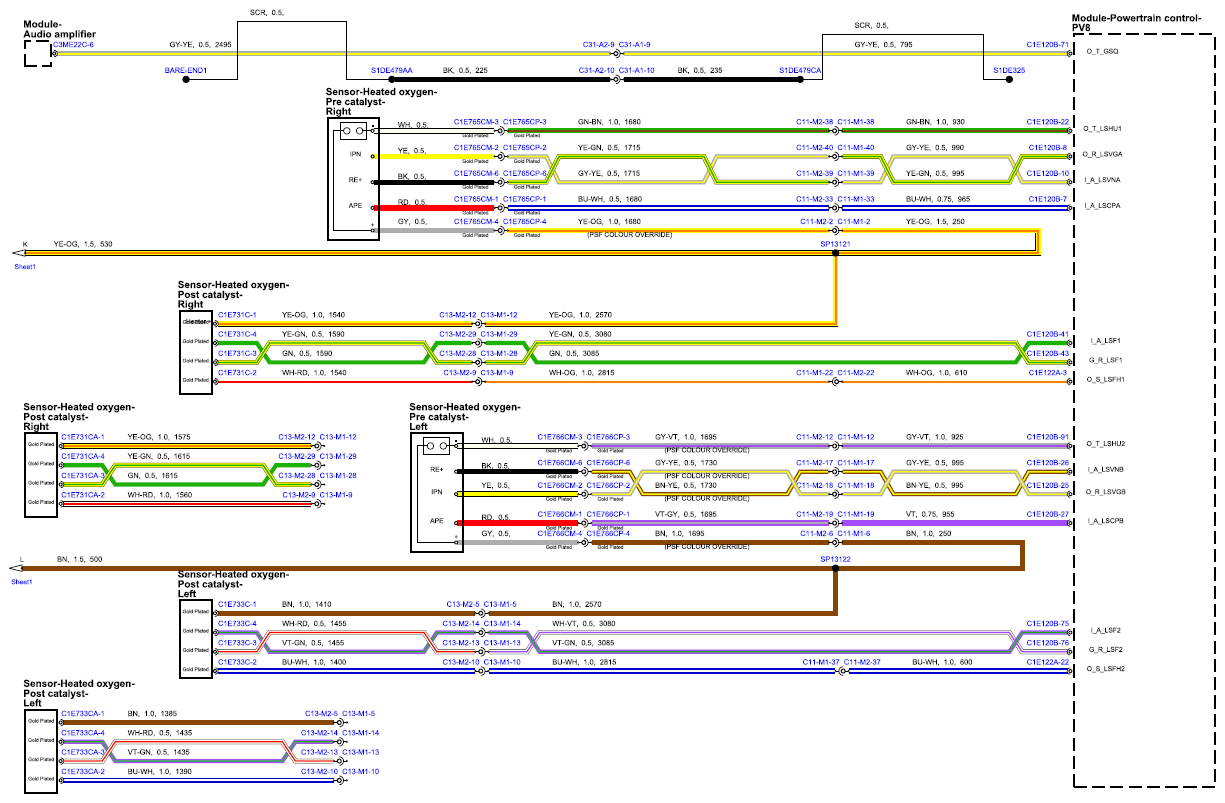

Fig 1: Electronic Engine Control Circuit Diagram (Sheet 1)

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

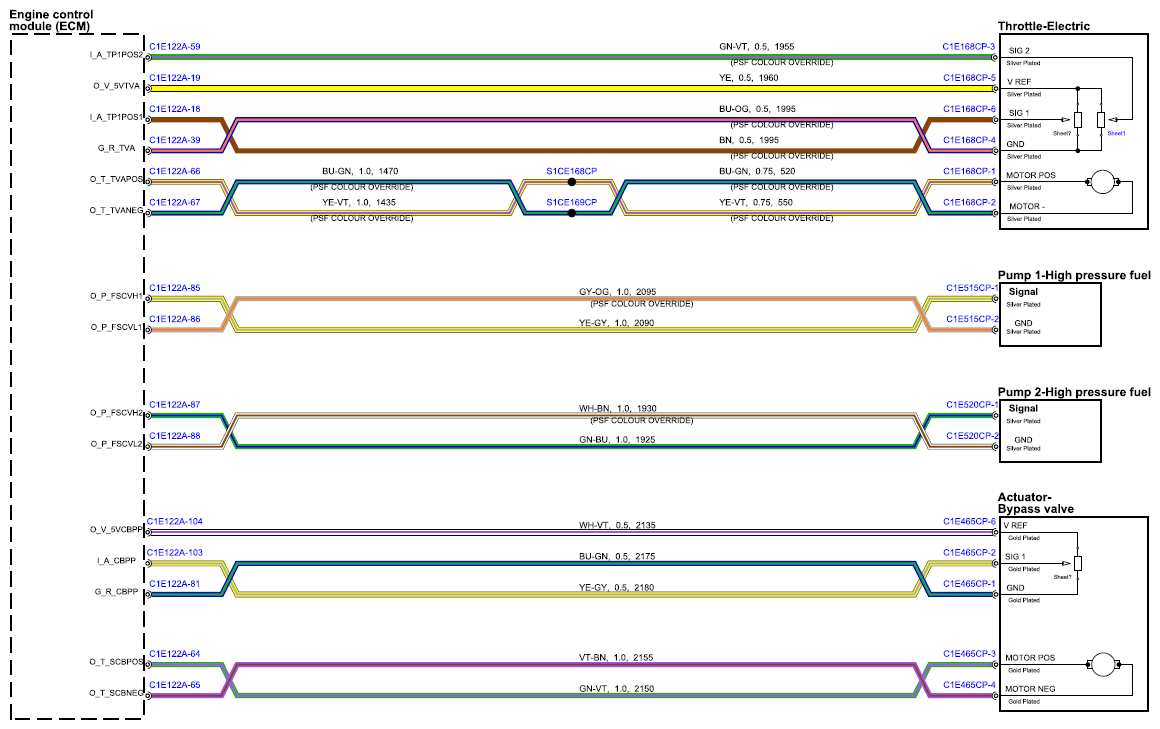

Fig 2: Electronic Engine Control Circuit Diagram (Sheet 2)

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

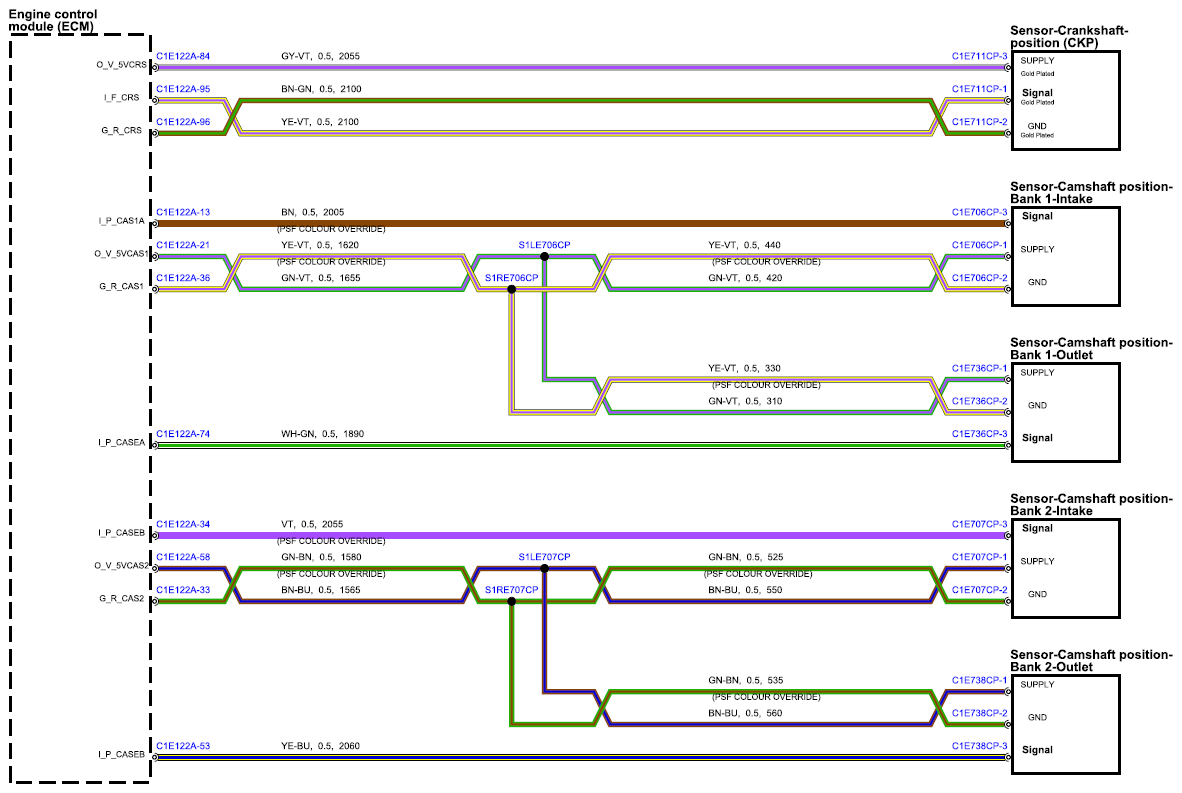

Fig 3: Electronic Engine Control Circuit Diagram (Sheet 3)

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

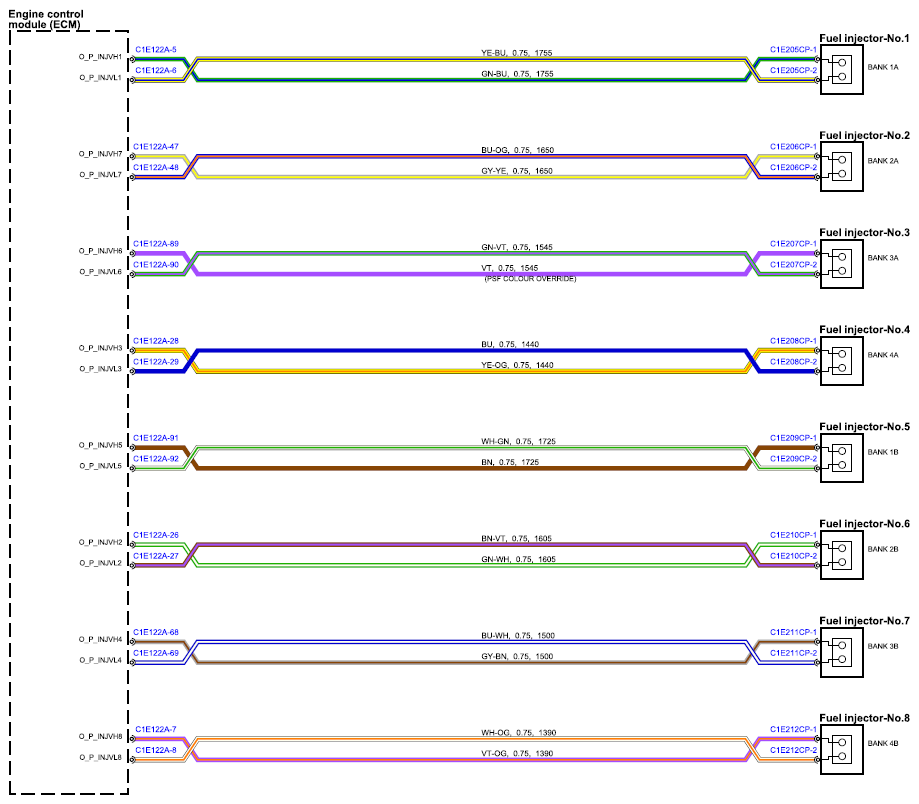

Fig 4: Electronic Engine Control Circuit Diagram (Sheet 4)

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

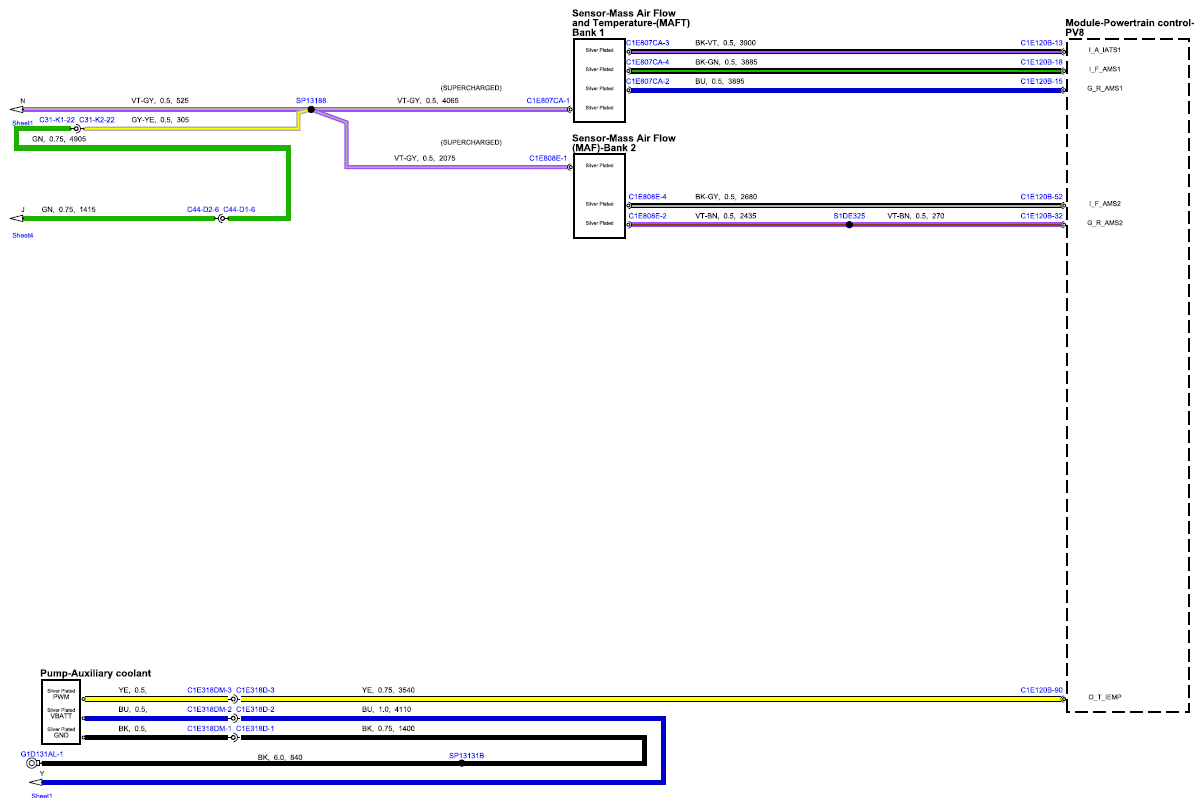

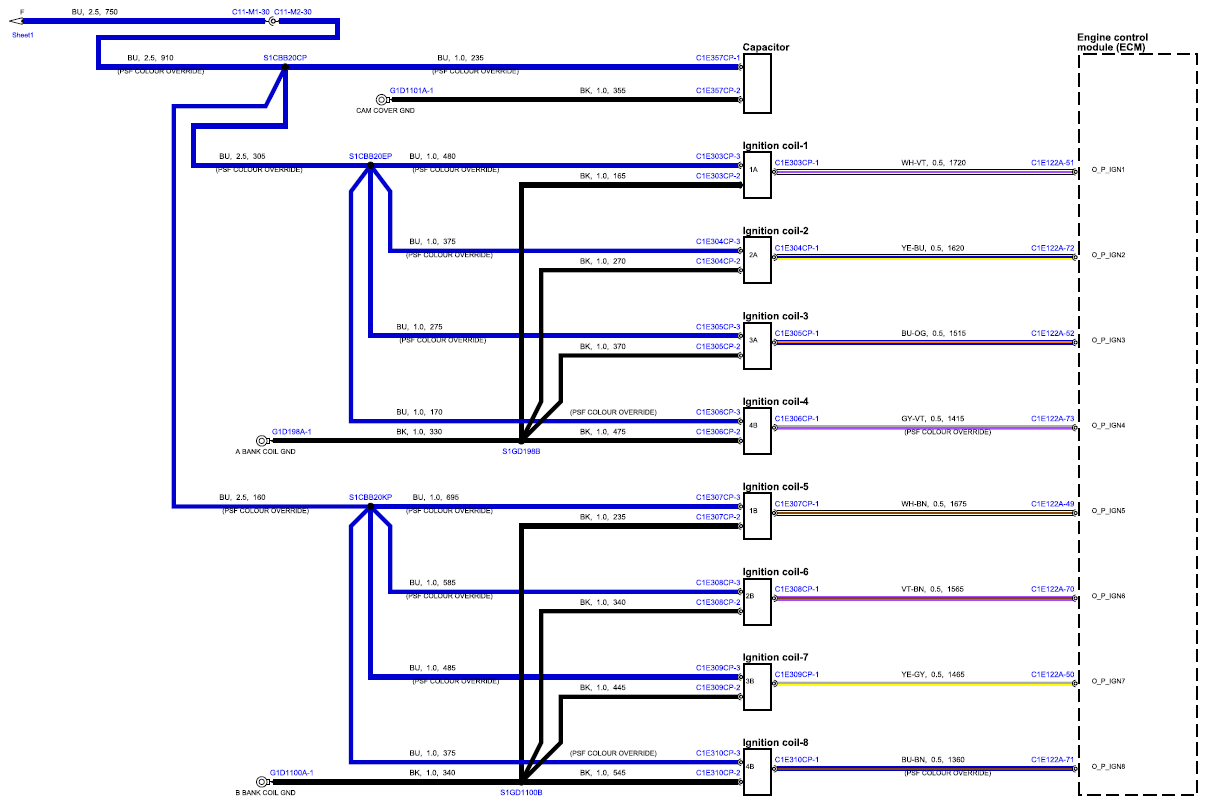

Fig 5: Electronic Engine Control Circuit Diagram (Sheet 5)

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

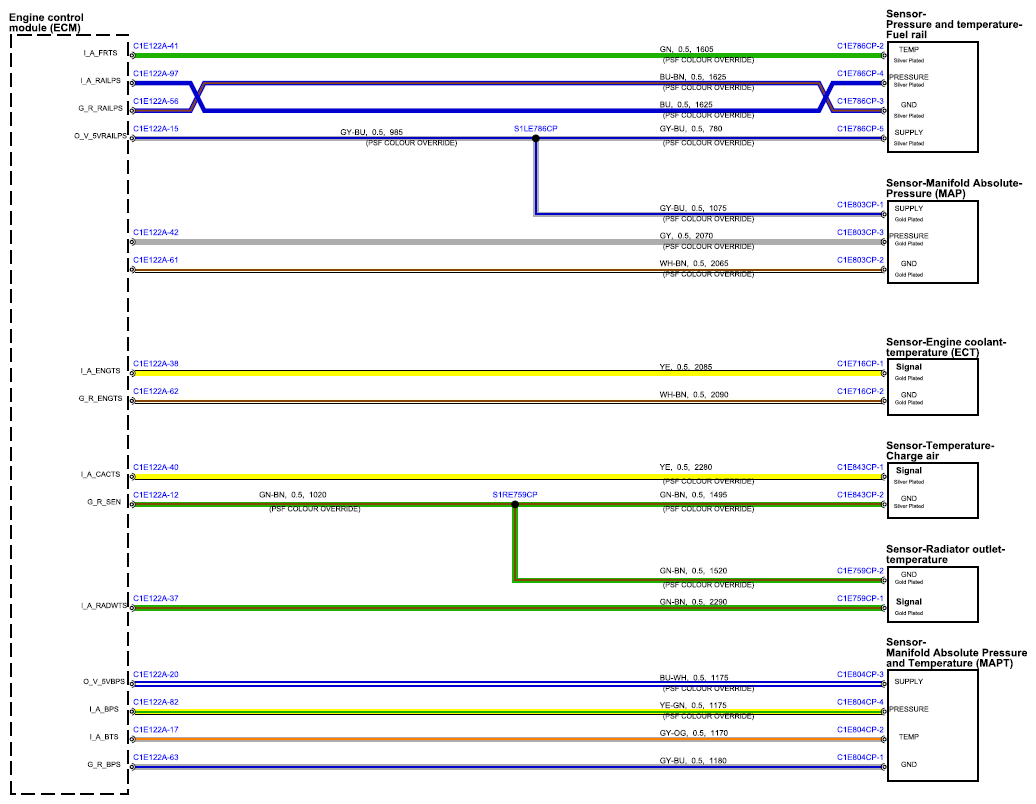

Fig 6: Electronic Engine Control Circuit Diagram (Sheet 6)

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

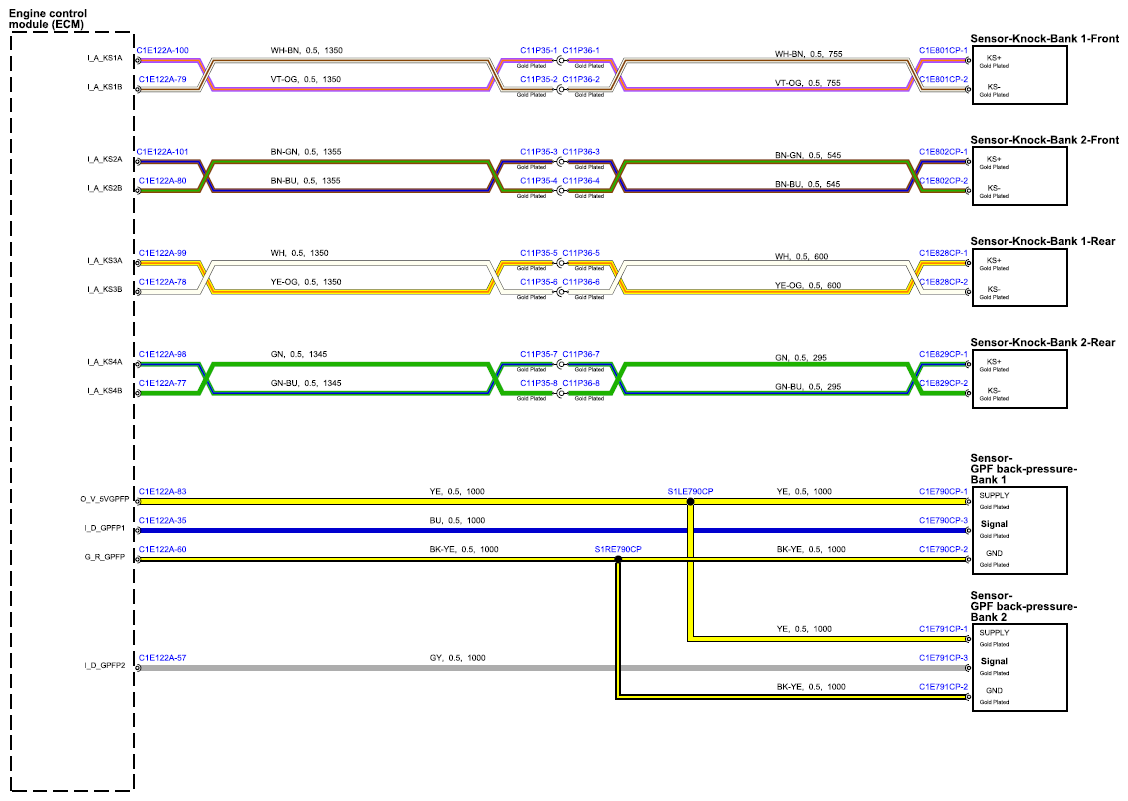

Fig 7: Electronic Engine Control Circuit Diagram (Sheet 7)

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

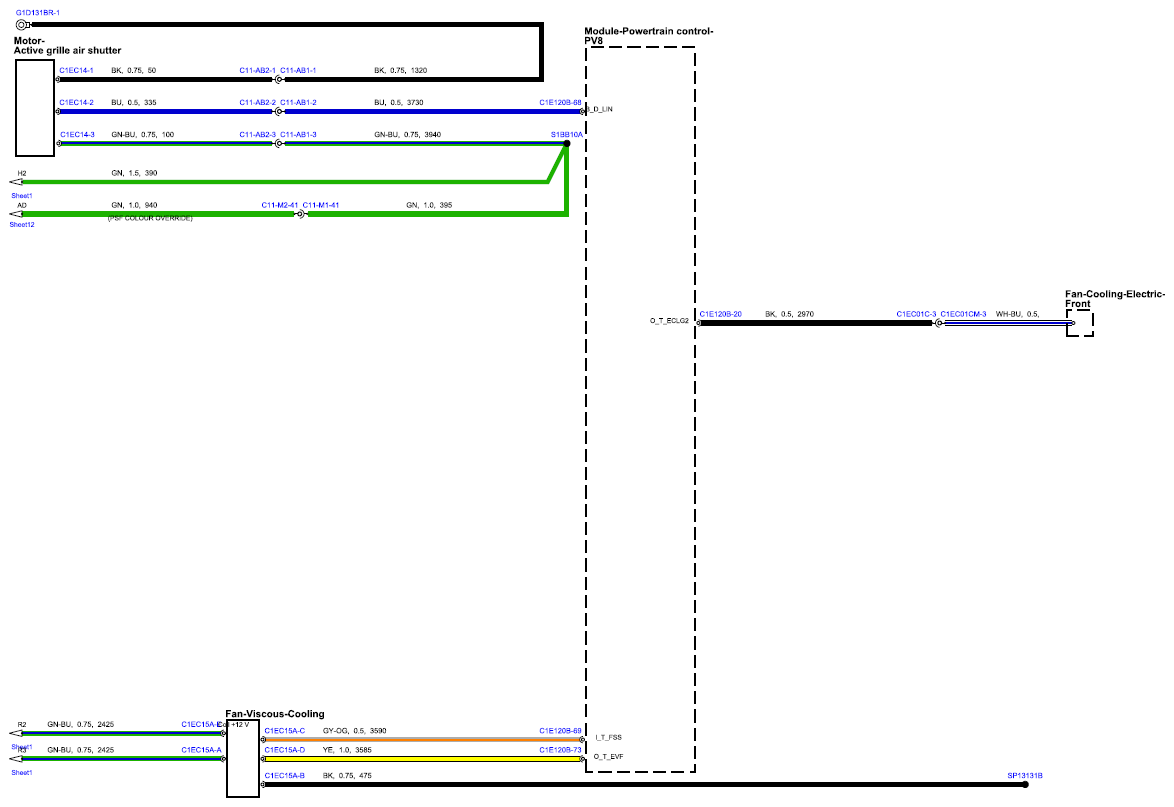

Fig 8: Electronic Engine Control Circuit Diagram (Sheet 8)

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

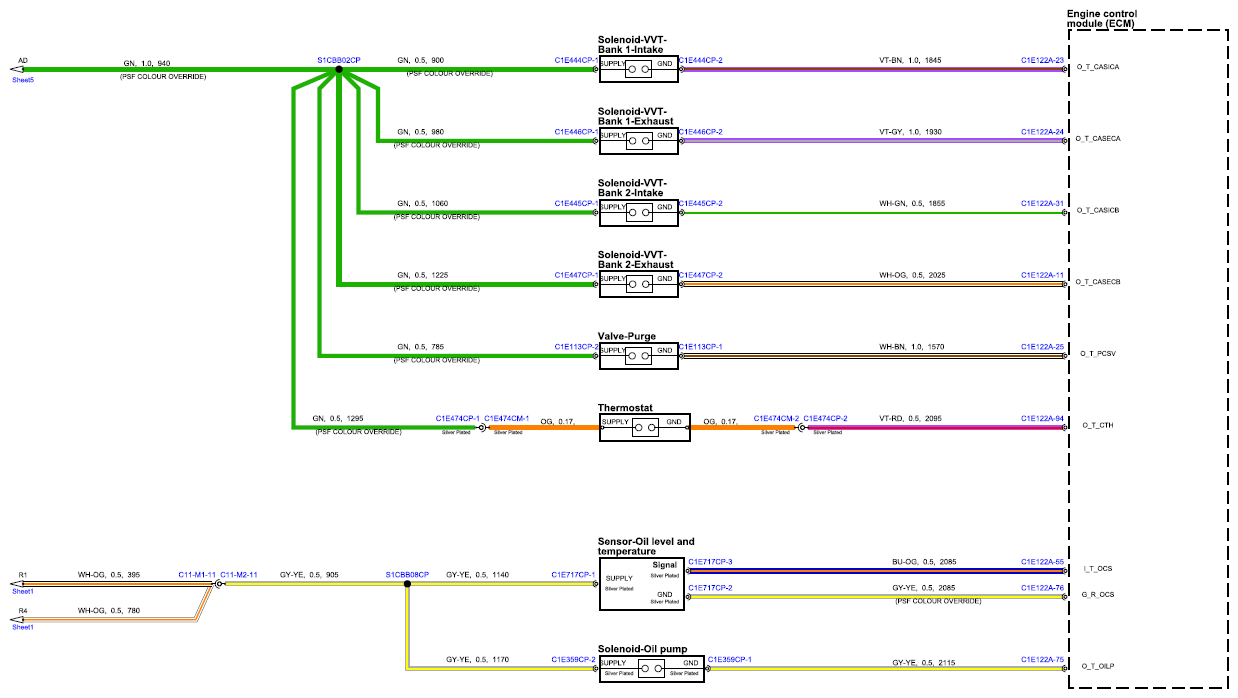

Fig 9: Electronic Engine Control Circuit Diagram (Sheet 9)

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

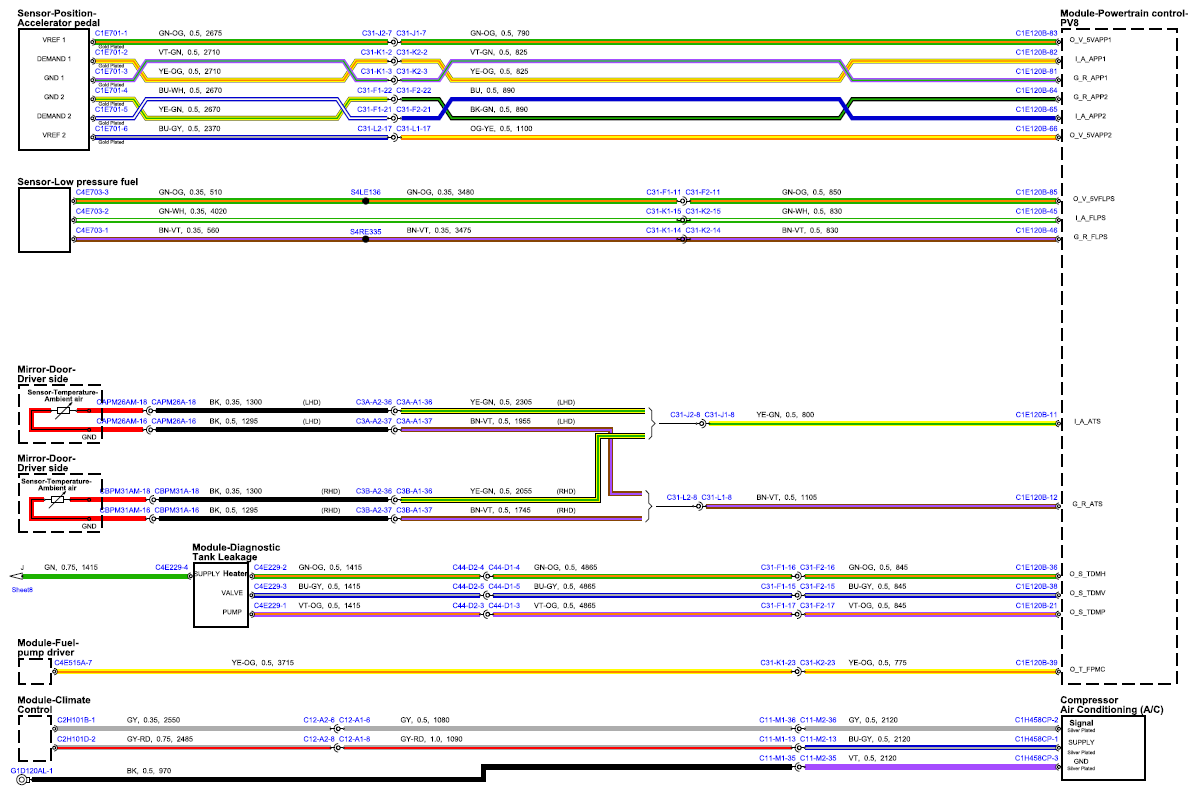

Fig 10: Electronic Engine Control Circuit Diagram (Sheet 10)

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

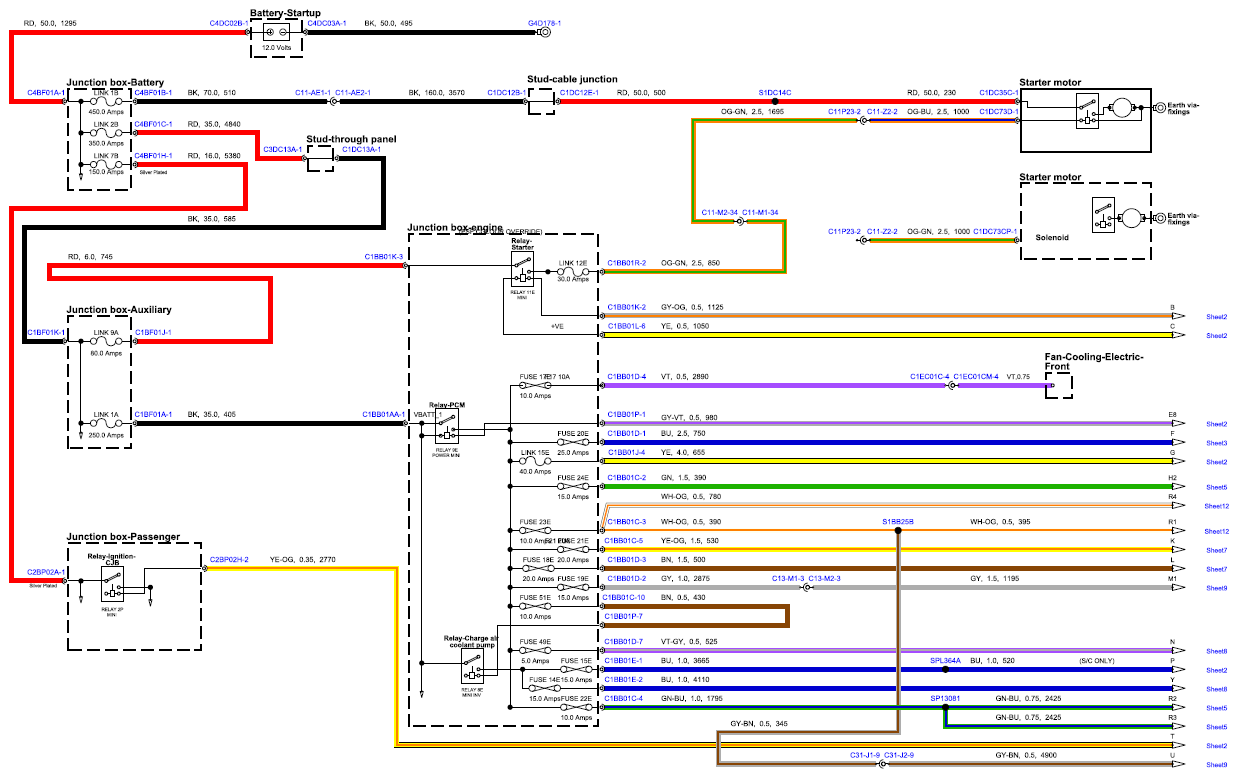

Fig 11: Electronic Engine Control Circuit Diagram (Sheet 11)

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

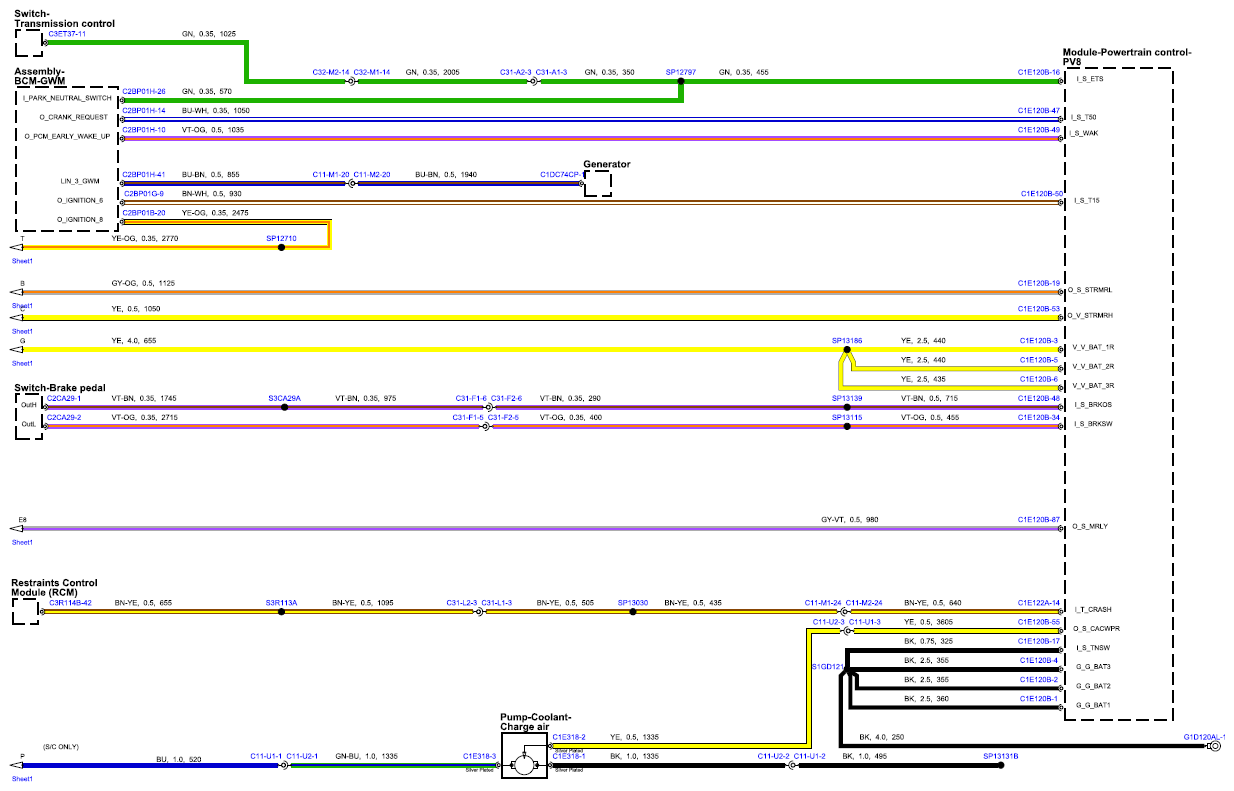

Fig 12: Electronic Engine Control Circuit Diagram (Sheet 12)

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

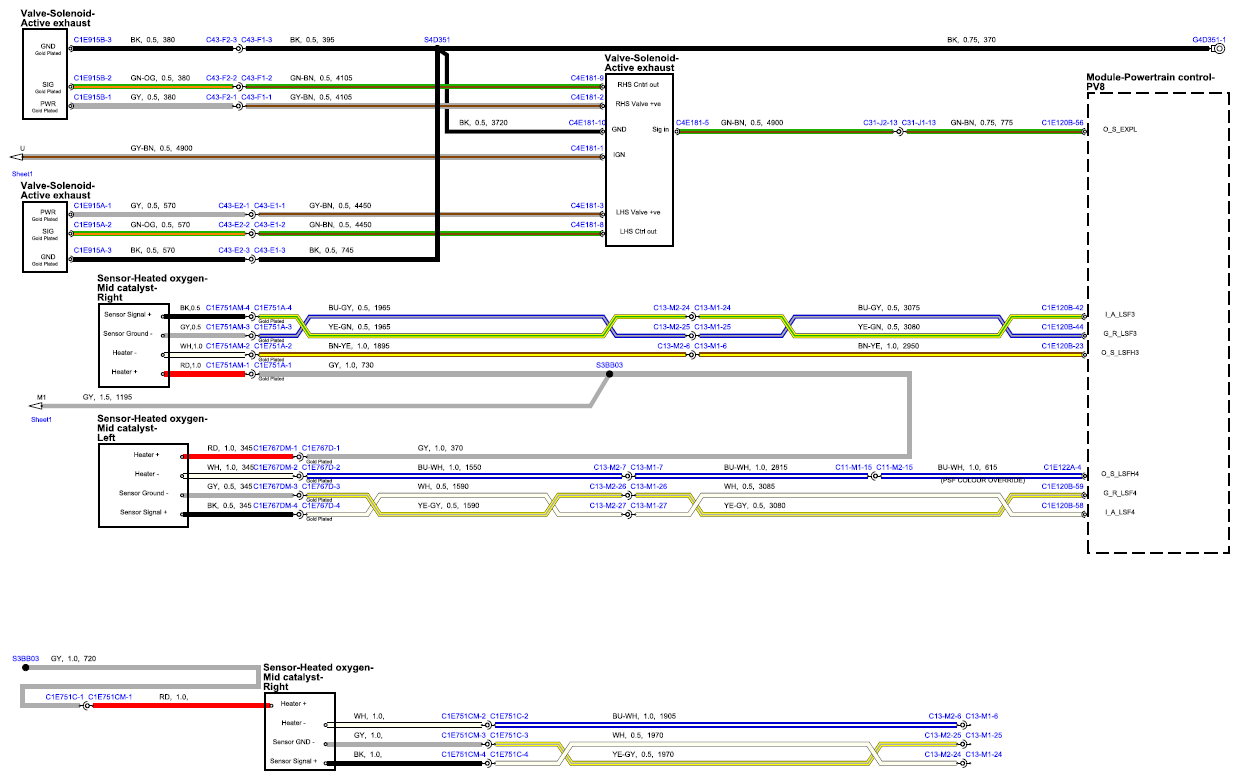

Fig 13: Electronic Engine Control Circuit Diagram (Sheet 13)

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Fig 14: Electronic Engine Control Circuit Diagram (Sheet 14)

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
