Selective Catalytic Reduction (SCR) System

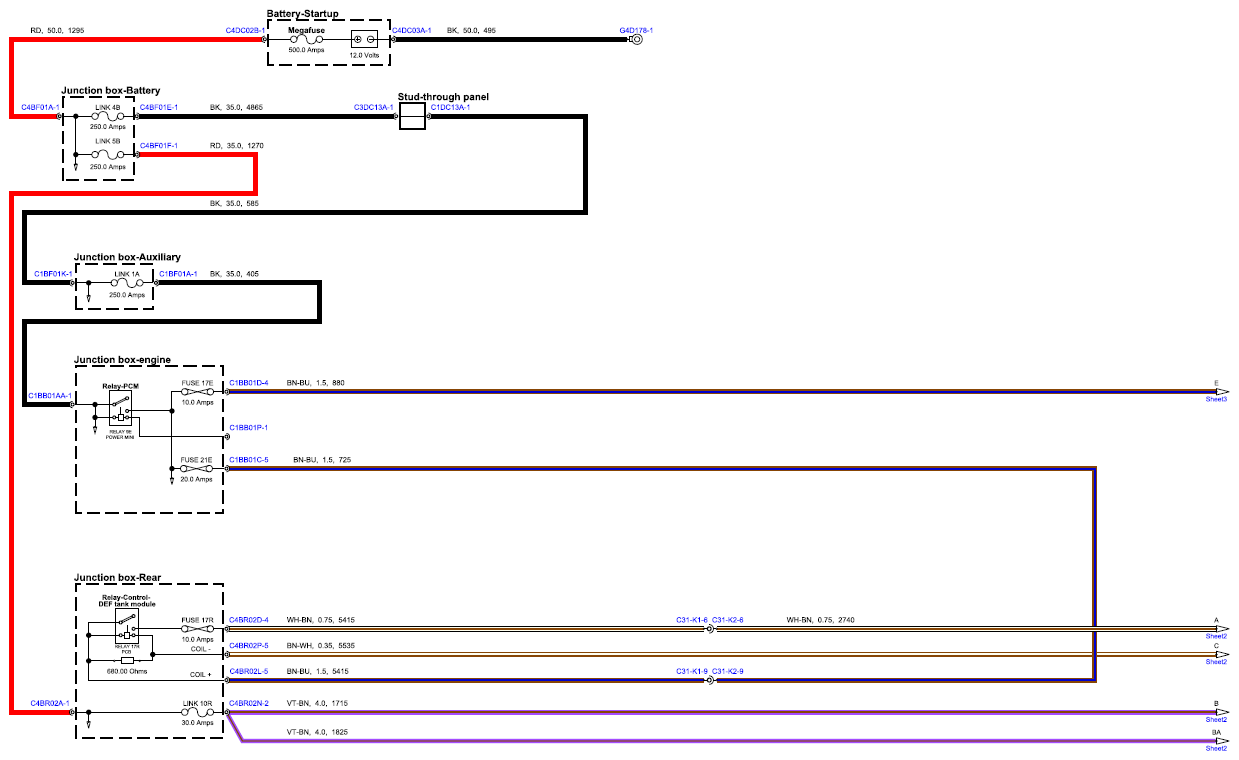

Fig 1: Selective Catalytic Reduction (SCR) System Circuit Diagram (Sheet 1)

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

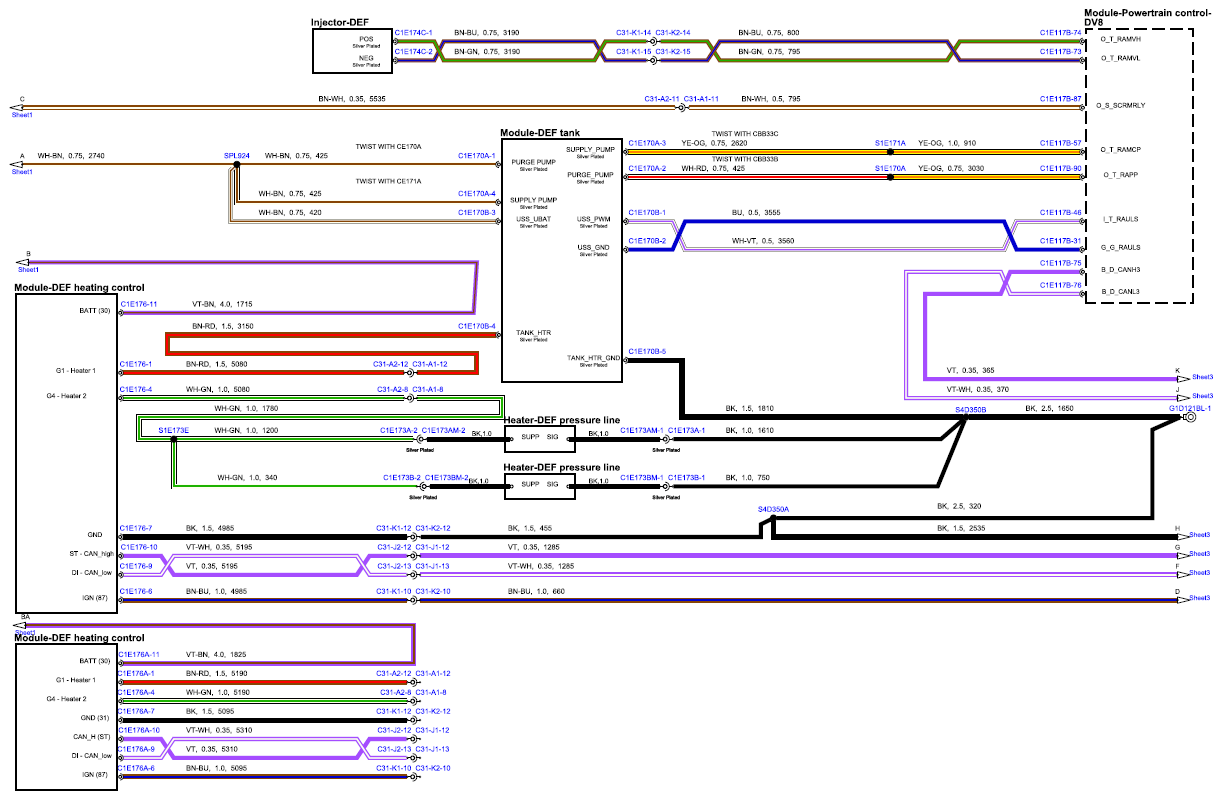

Fig 2: Selective Catalytic Reduction (SCR) System Circuit Diagram (Sheet 2)

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

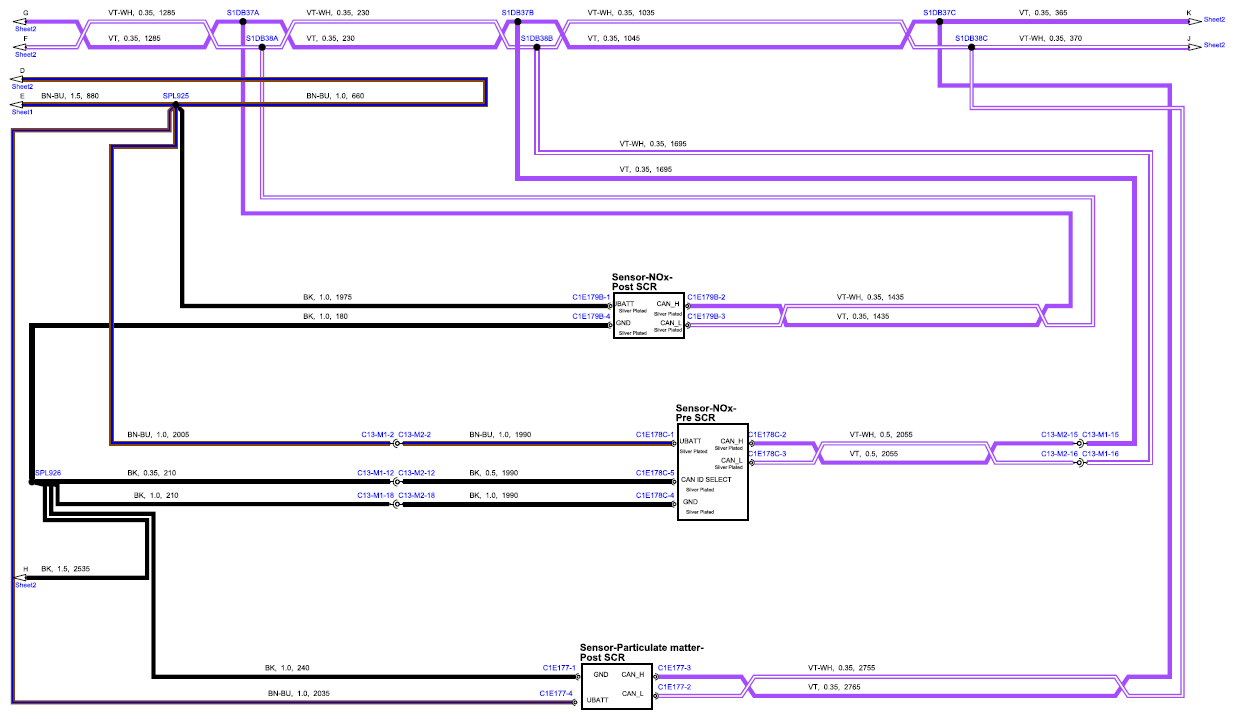

Fig 3: Selective Catalytic Reduction (SCR) System Circuit Diagram (Sheet 3)

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
