303-06F Starting System - Pi6

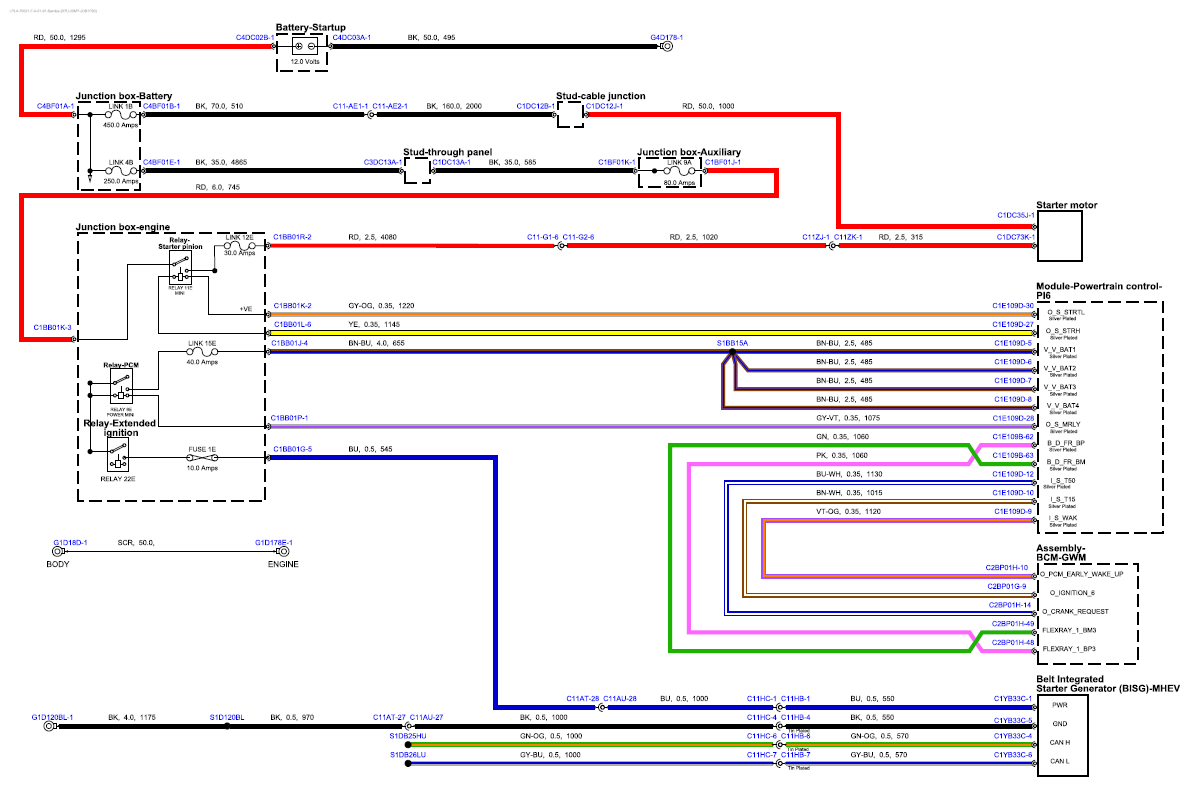

Fig 1: Starting System Circuit Diagram

G15554191

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
