303-06E Starting System - Pi4

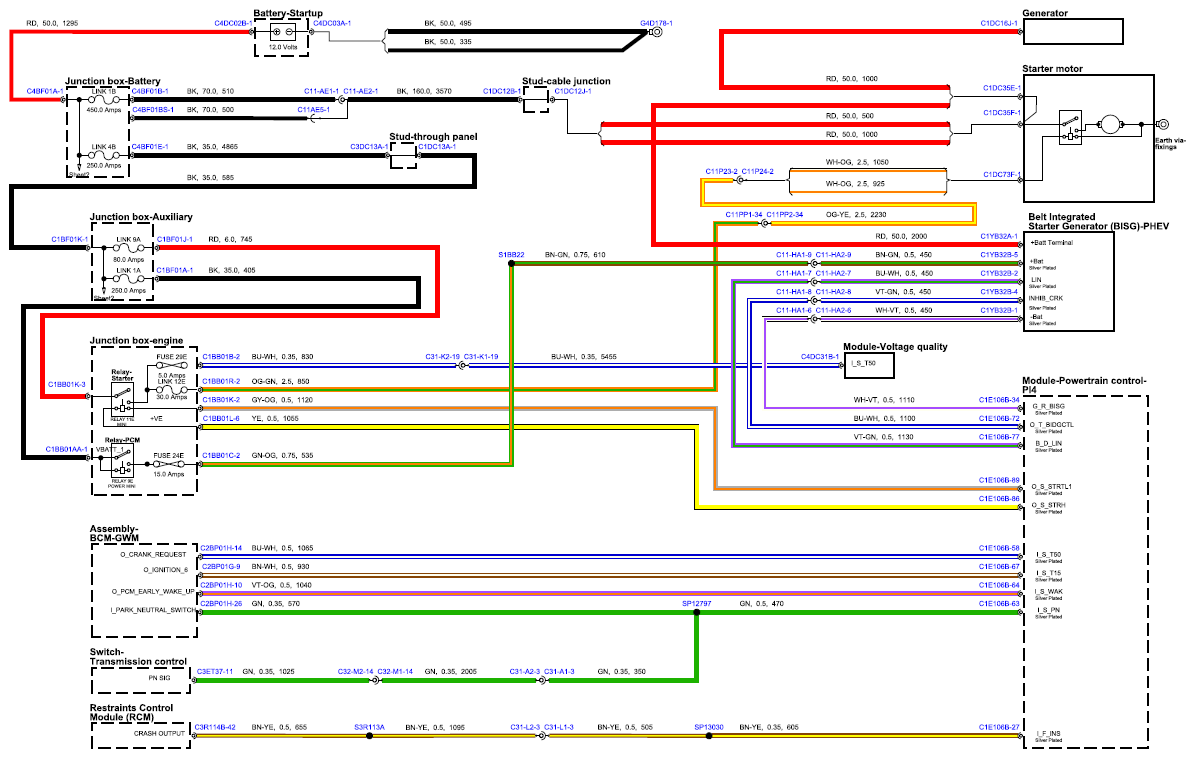

Fig 1: Starting System Circuit Diagram

G15554190

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
