303-06E Starting System - Di6

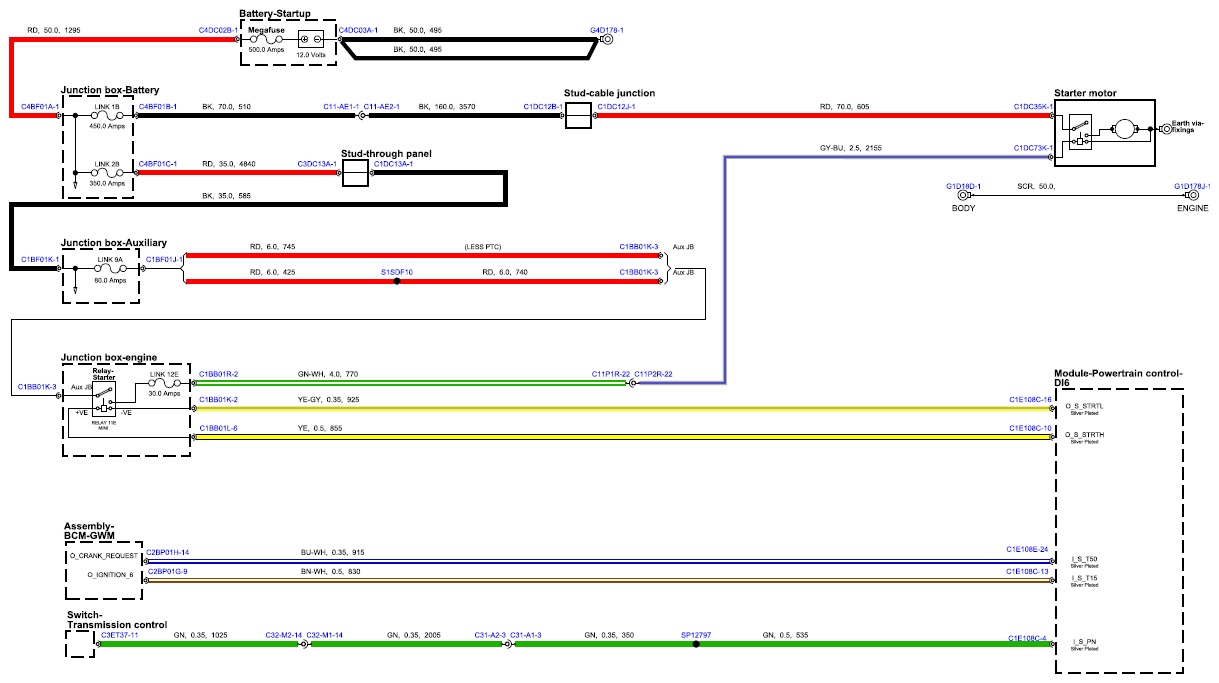

Fig 1: Starting System Circuit Diagram

G15554189

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
