303-06D Starting System - DV8

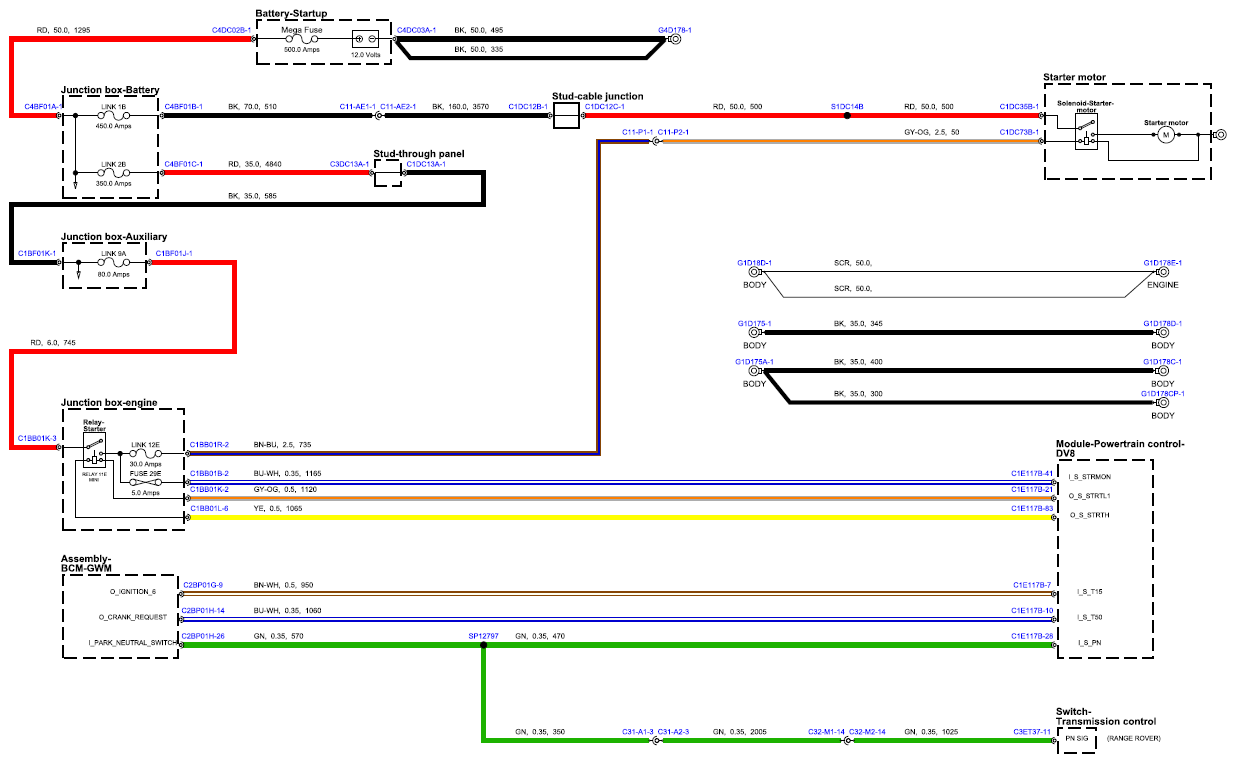

Fig 1: Starting System Circuit Diagram

G15554188

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
