303-03 Engine Cooling: Pi6

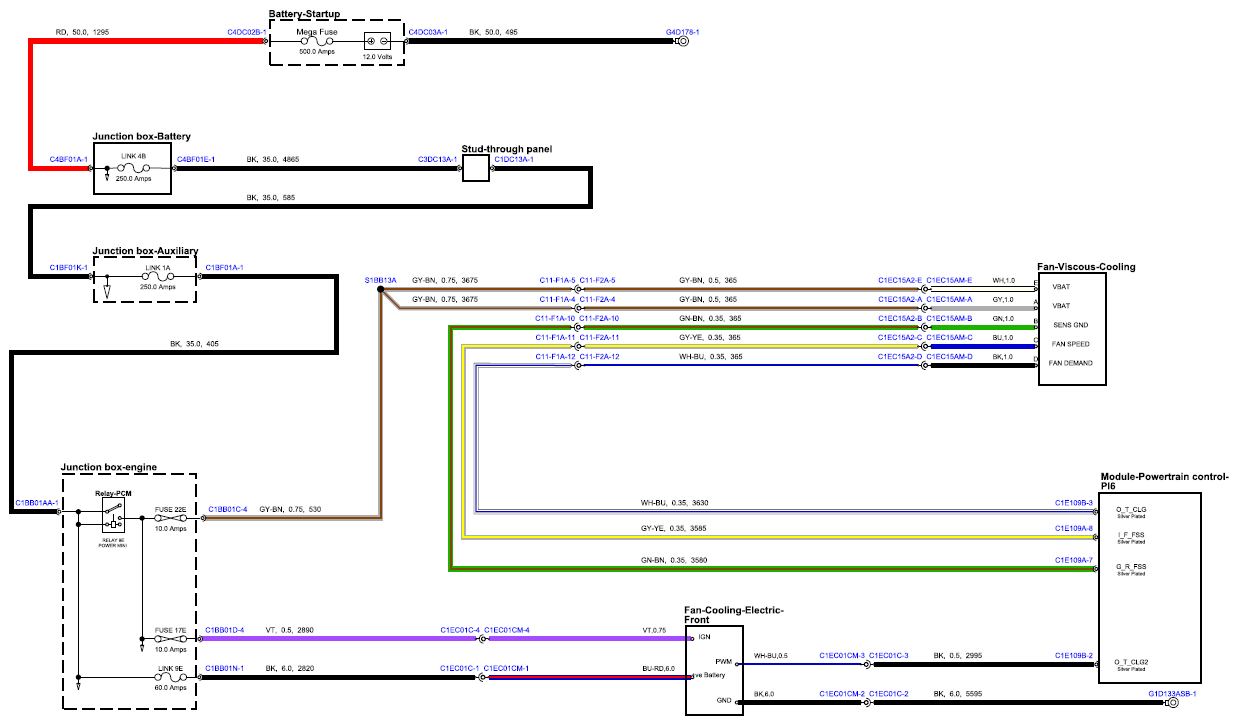

Fig 1: Engine Cooling Circuit Diagram (PI6)

G15554184

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
