OEM Wiring Diagrams -- Range Rover Sport L494
>>
303-03 Engine Cooling
>>
Petrol - except PI6
Petrol - except PI6

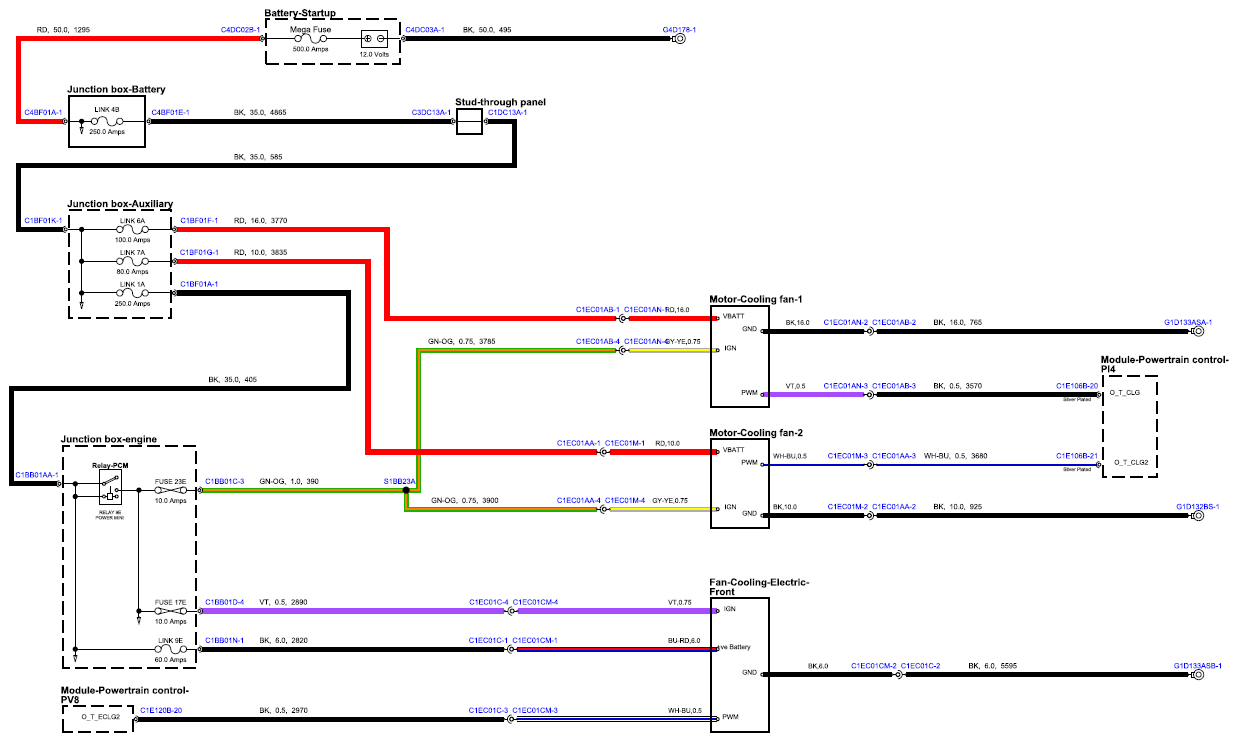

Fig 1: Engine Cooling Circuit Diagram (Petrol - Except PI6)
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
