303-03 Engine Cooling: Di6

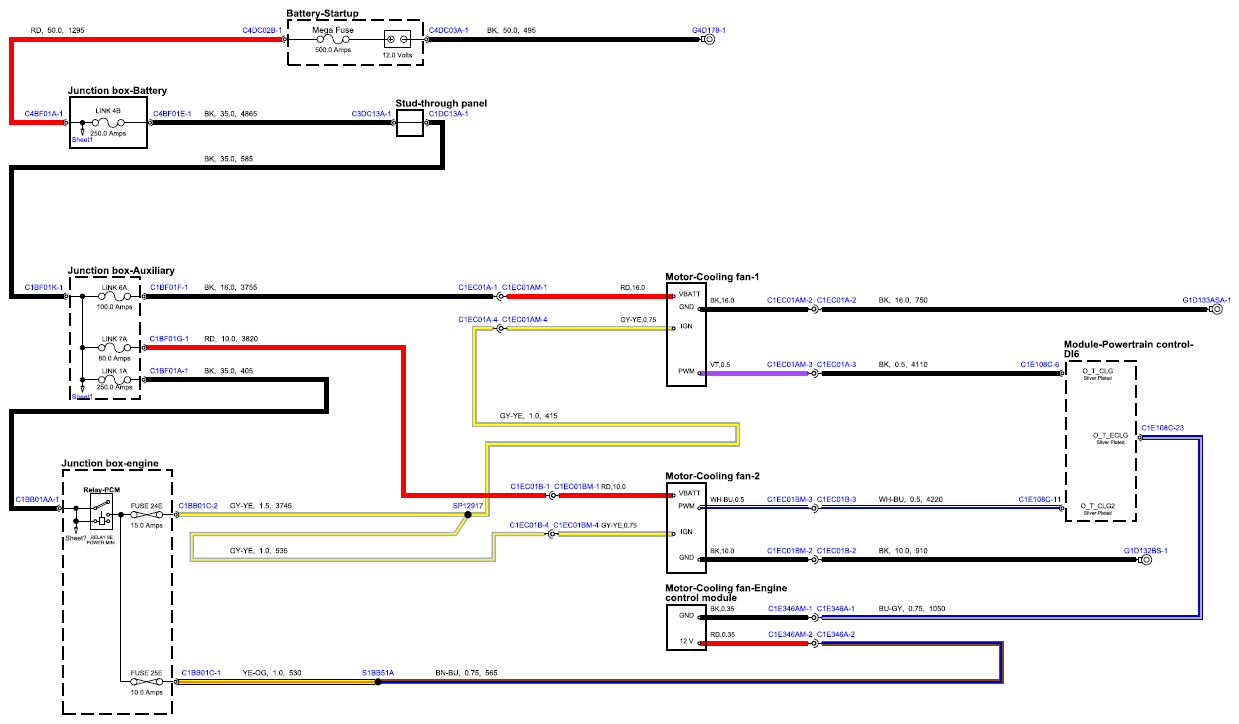

Fig 1: Engine Cooling Circuit Diagram (DI6)
G15554182Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
