Steering wheel - heated

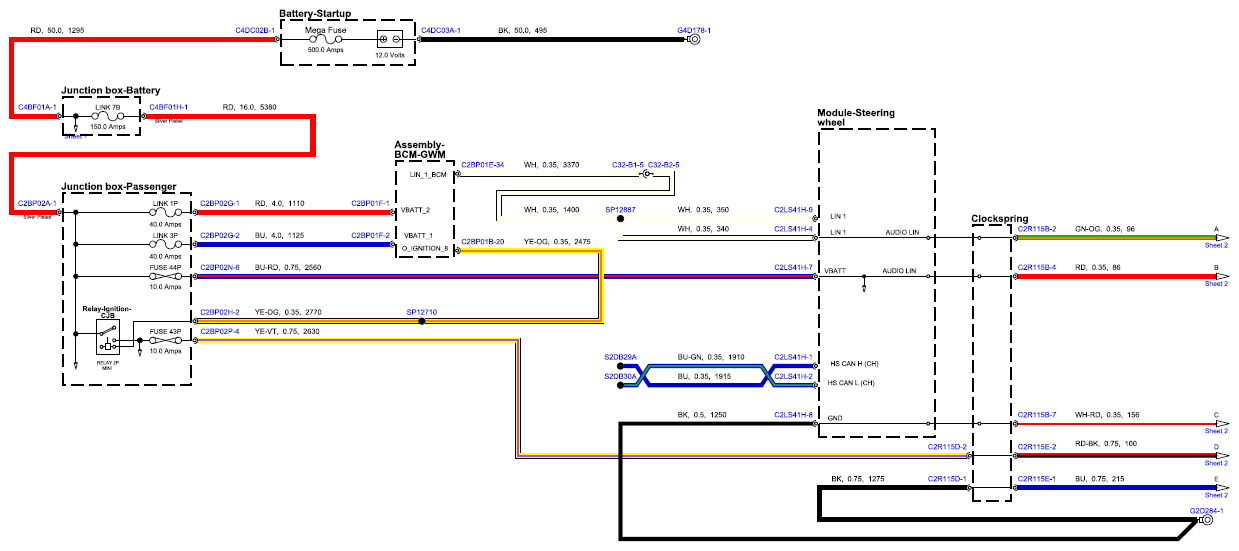

Fig 1: Steering Wheel - Heated Circuit Diagram (Sheet 1)
G15554180Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

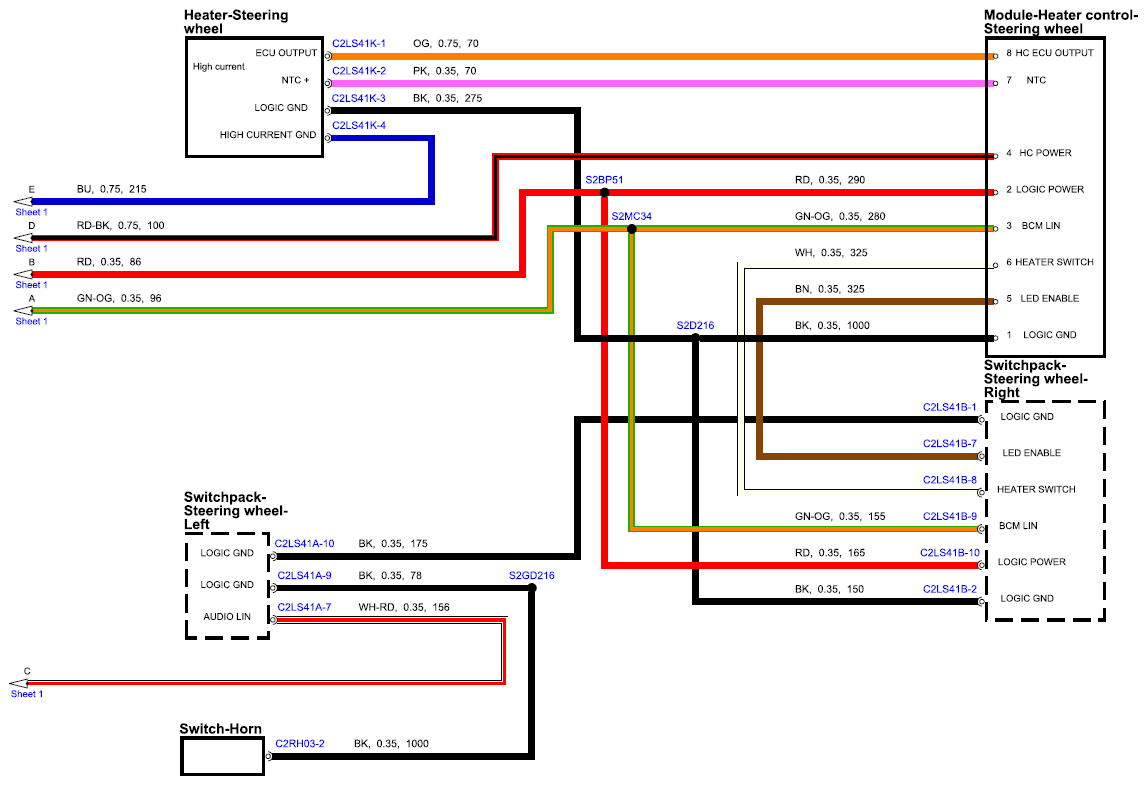

Fig 2: Steering Wheel - Heated Circuit Diagram (Sheet 2)
G15554181Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
