OEM Wiring Diagrams -- Range Rover Sport L494
>>
211-02 Power Steering
211-02 Power Steering

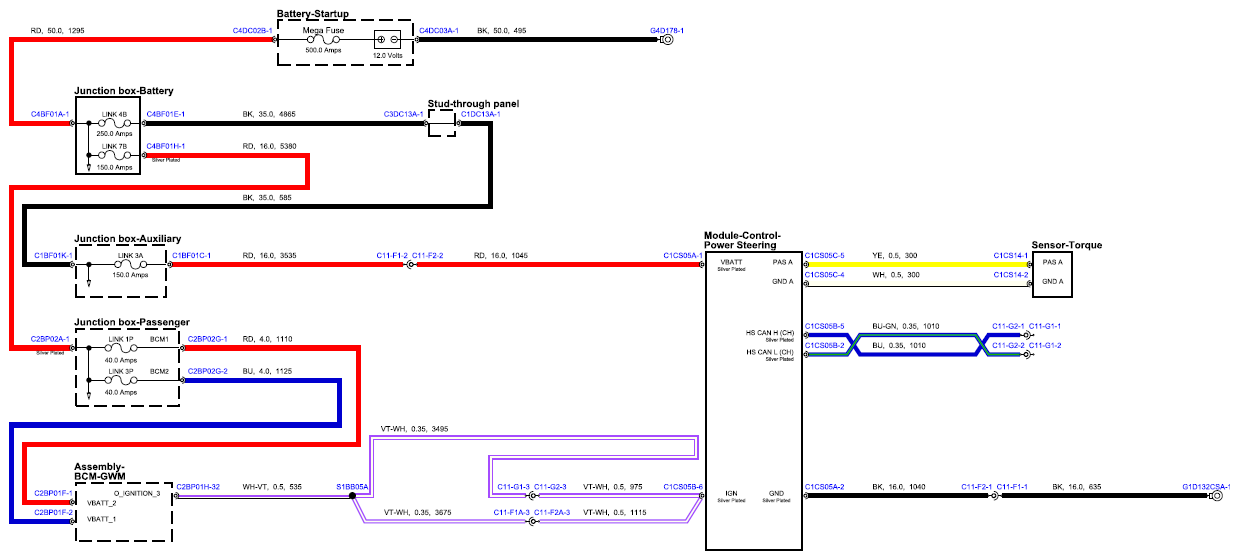

Fig 1: Power Steering Circuit Diagram
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
