OEM Wiring Diagrams -- Range Rover Sport L494
>>
205-02 Rear Drive Axle And Differential
>>
Range Rover Sport
Range Rover Sport

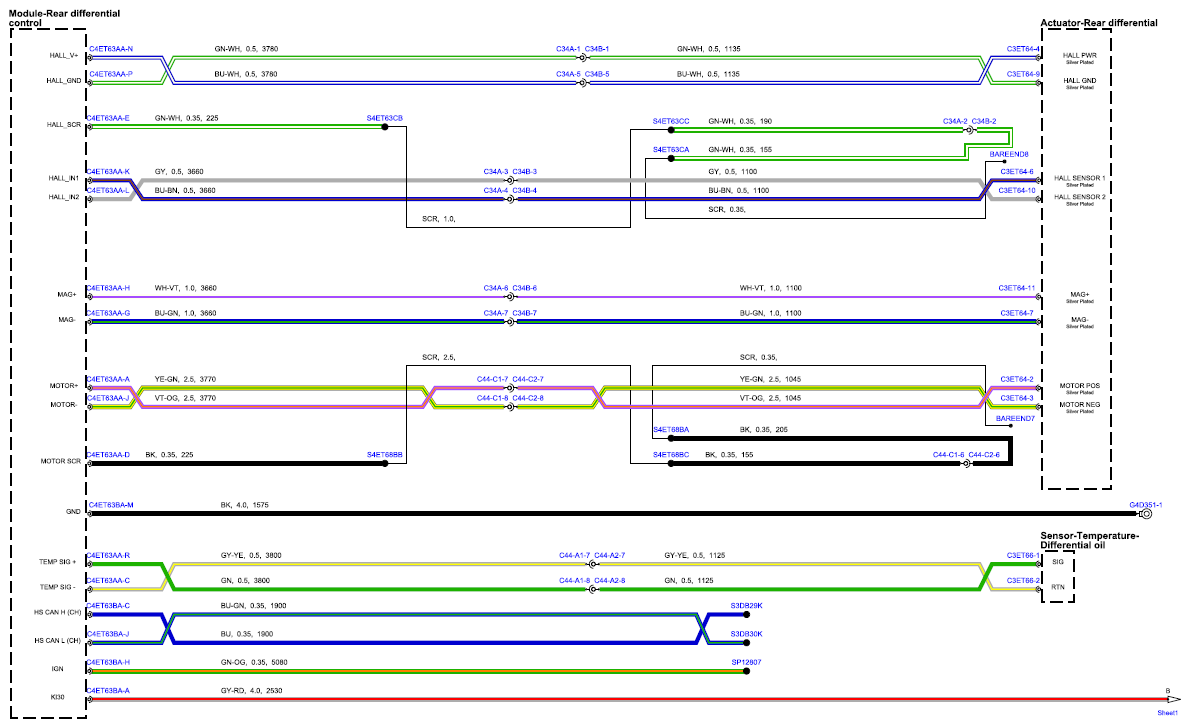

Fig 1: Rear Drive Axle And Differential (Range Rover Sport) Circuit Diagram (Sheet 1)
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

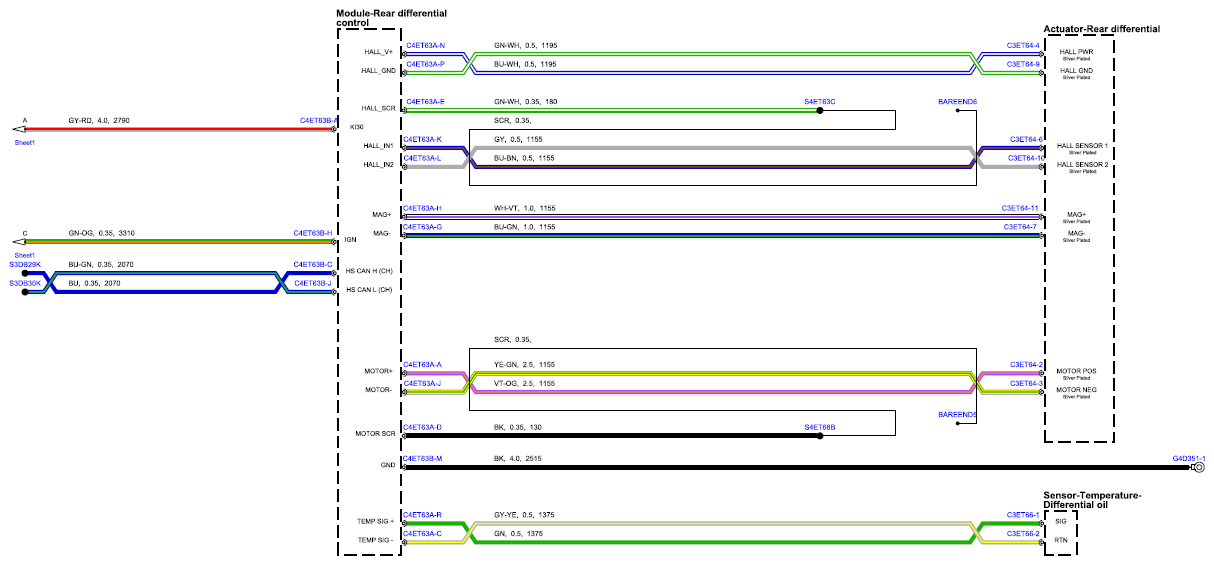

Fig 2: Rear Drive Axle And Differential (Range Rover Sport) Circuit Diagram (Sheet 2)
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

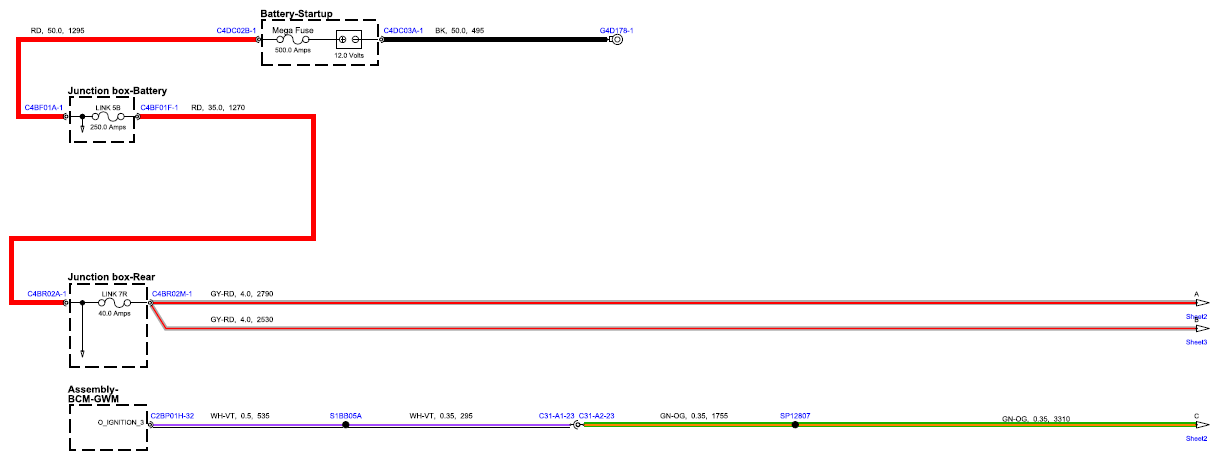

Fig 3: Rear Drive Axle And Differential (Range Rover Sport) Circuit Diagram (Sheet 3)
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
