OEM Wiring Diagrams -- Range Rover Sport L494
>>
204-06 Ride And Handling Optimization
>>
Dynamic Response
Dynamic Response

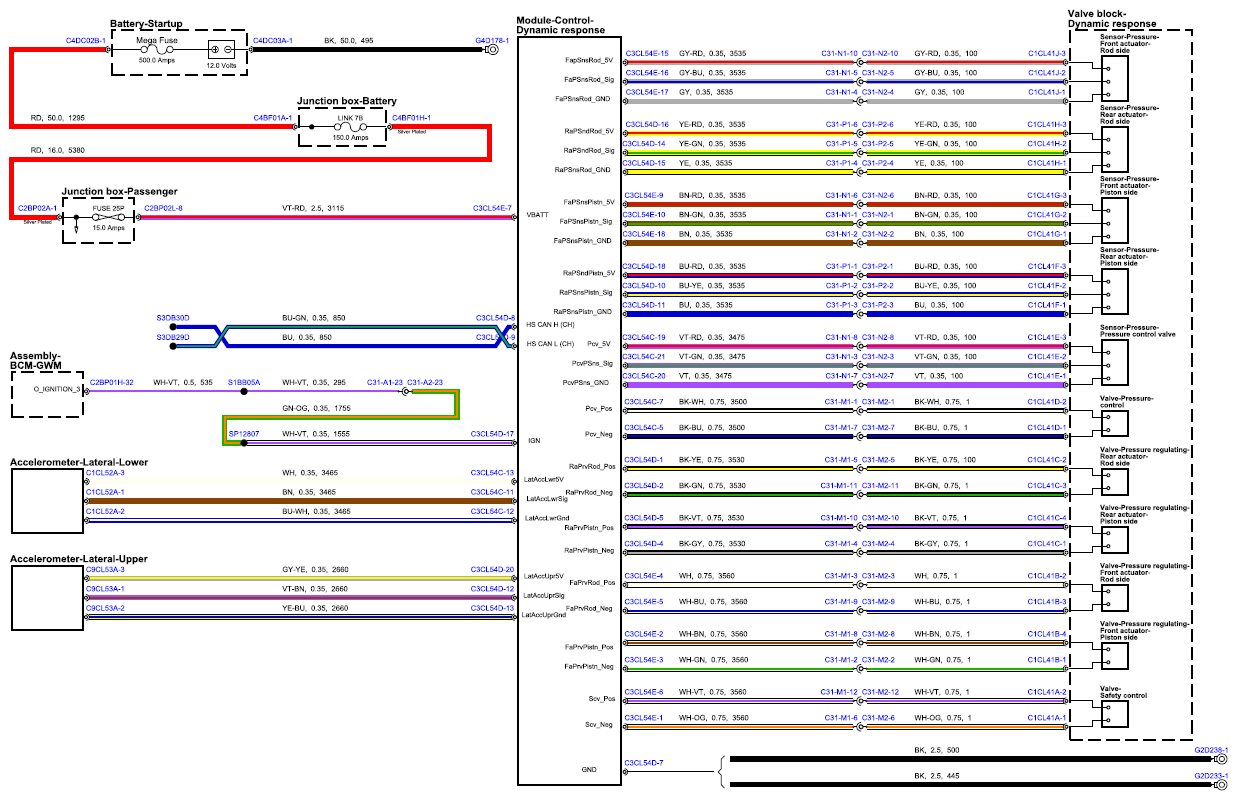

Fig 1: Ride And Handling Optimization Circuit Diagram (Dynamic Response)
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
