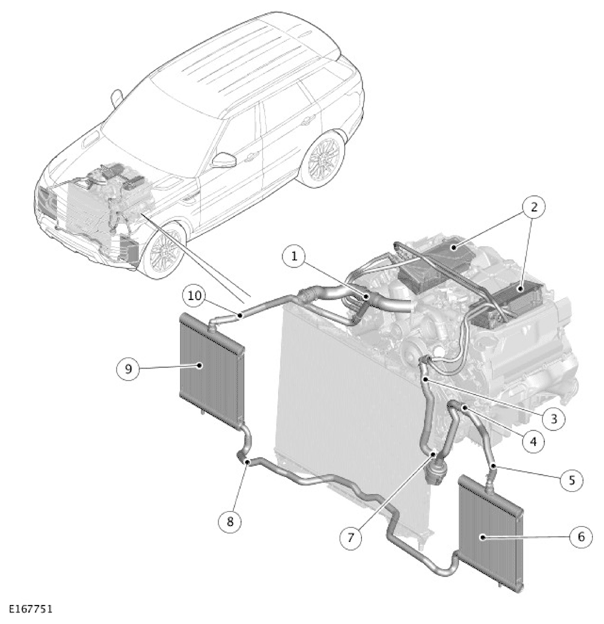

Component Location
WARNING: This page is about a different variant/trim than selected.
| Item | Description |
|---|---|
| 1 | Radiator upper hose |
| 2 | Charge air coolers |
| 3 | Hose - coolant feed to air charge coolers |
| 4 | Bleed screw |
| 5 | Hose - charge air radiator to coolant pump |
| 6 | Left air charge air radiator |
| 7 | Charge air coolant pump |
| 8 | Hose - charge air radiators |
| 9 | Right air charge radiator |
| 10 | Hose - return from charge air coolers |
