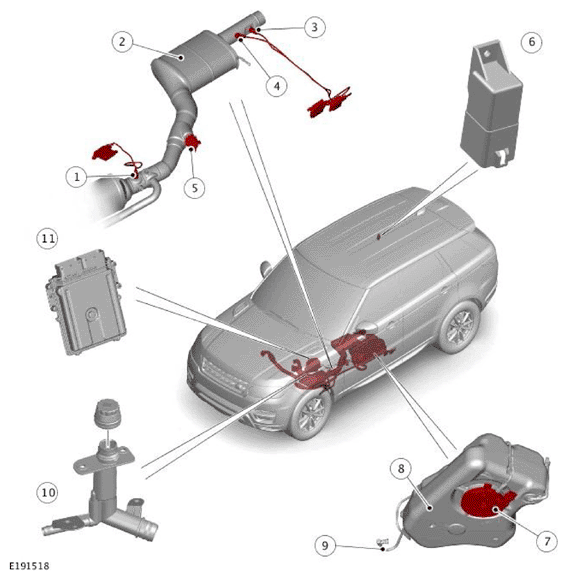

Component Location
WARNING: This page is about a different variant/trim than selected.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Pre Selective Catalyst Reduction (SCR) NOx sensor - North American Specification (NAS) market vehicles only |
| 2 | Selective Catalyst Reduction (SCR) catalytic converter |
| 3 | Post Selective Catalyst Reduction (SCR) NOx sensor |
| 4 | Post Selective Catalyst Reduction (SCR) soot sensor - North American Specification (NAS) market vehicles only |
| 5 | Diesel Exhaust Fluid (DEF) injector |
| 6 | Diesel Exhaust Fluid (DEF) heater control unit |
| 7 | Diesel Exhaust Fluid (DEF) tank module |
| 8 | Diesel Exhaust Fluid (DEF) tank |
| 9 | Diesel Exhaust Fluid (DEF) line |
| 10 | Diesel Exhaust Fluid (DEF) filler neck |
| 11 | Powertrain Control Module (PCM) |
