Component Location - 1 Of 2 - Vehicles Equipped Without Selective Catalyst Reduction System
WARNING: This page is about a different variant/trim than selected.

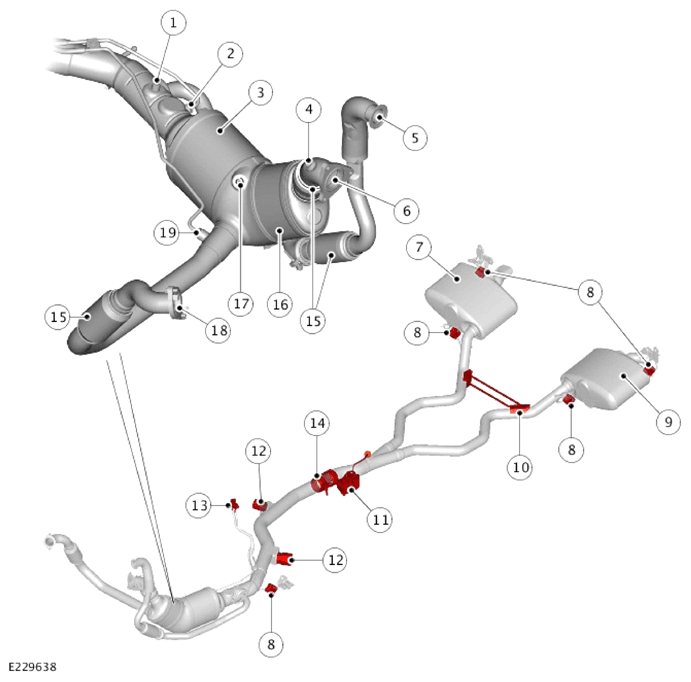

| ITEM | DESCRIPTION |
|---|---|
| 1 | Exhaust gas temperature sensor mounting hole - Diesel Particulate Filter (DPF) outlet |
| 2 | Differential pressure sensor pipe - Low Pressure (LP) |
| 3 | DPF |
| 4 | Heated Oxygen Sensor (HO2S) mounting hole |
| 5 | Flange connection - LP Exhaust Gas Recirculation (EGR) valve |
| 6 | Flange connection - Primary turbocharger |
| 7 | Rear right silencer |
| 8 | Mounting rubber (quantity 5) |
| 9 | Rear left silencer |
| 10 | Exhaust brace |
| 11 | Exhaust valve - Exhaust pressure control |
| 12 | Mass damper (quantity 2) |
| 13 | Differential pressure sensor |
| 14 | Clamp |
| 15 | Flexible coupling |
| 16 | Catalytic converter |
| 17 | Exhaust gas temperature sensor mounting hole - DPF inlet |
| 18 | Flange connection - Secondary turbocharger |
| 19 | Differential pressure sensor pipe - High Pressure (HP) |
