Control Diagram - Adaptive Speed Control
WARNING: This page is about a different variant/trim than selected.
A = Hardwired: O = LIN bus: AM = HS CAN chassis systems bus: AX = FlexRay systems bus: U = Private CAN bus.

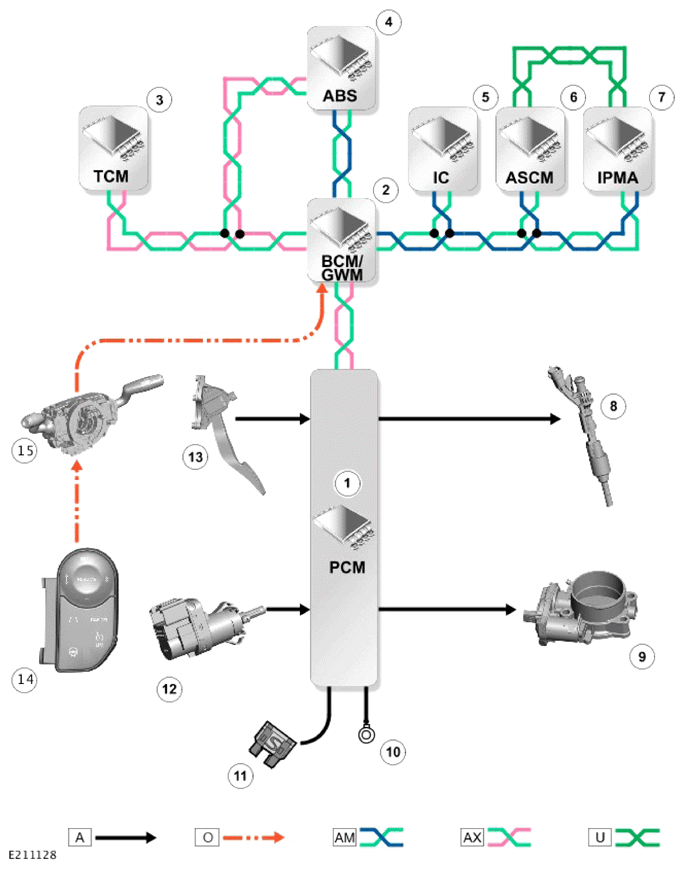

| ITEM | DESCRIPTION |
|---|---|
| 1 | PCM |
| 2 | Body Control Module/Gateway Module (BCM/GWM) |
| 3 | Transmission Control Module (TCM) |
| 4 | ABS |
| 5 | Instrument Cluster (IC) |
| 6 | Adaptive Speed Control Module (ASCM) |
| 7 | IPMA |
| 8 | Fuel injector (quantity 6) |
| 9 | Electric throttle |
| 10 | Ground |
| 11 | Power supply |
| 12 | Brake pedal switch |
| 13 | APP sensor |
| 14 | Steering wheel switchpack - Right |
| 15 | Clockspring (CLKSPG) |
