Electric Power Inverter Converter
WARNING: This page is about a different variant/trim than selected.

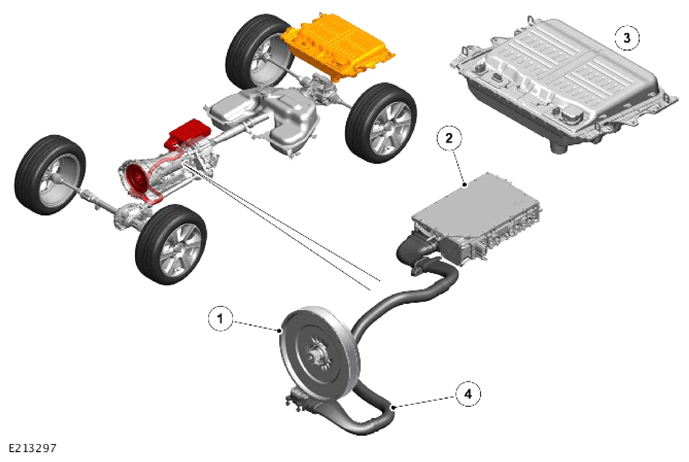

| Item | Description |
|---|---|
| 1 | Hybrid drive assembly incorporating the Motor Generator (MG) |
| 2 | Electric Power Inverter Converter (EPIC) |
| 3 | PHEV battery |
| 4 | 3-phase cables between the EPIC and the MG |
The Electric Power Inverter Converter (EPIC) is located under the floorpan between the front and rear axle on the right side.
The EPIC is controlled by the Powertrain Control Module (PCM). The PCM communicates with the EPIC via a FlexRay.
For additional information, Refer to: ELECTRIC POWER INVERTER CONVERTER
