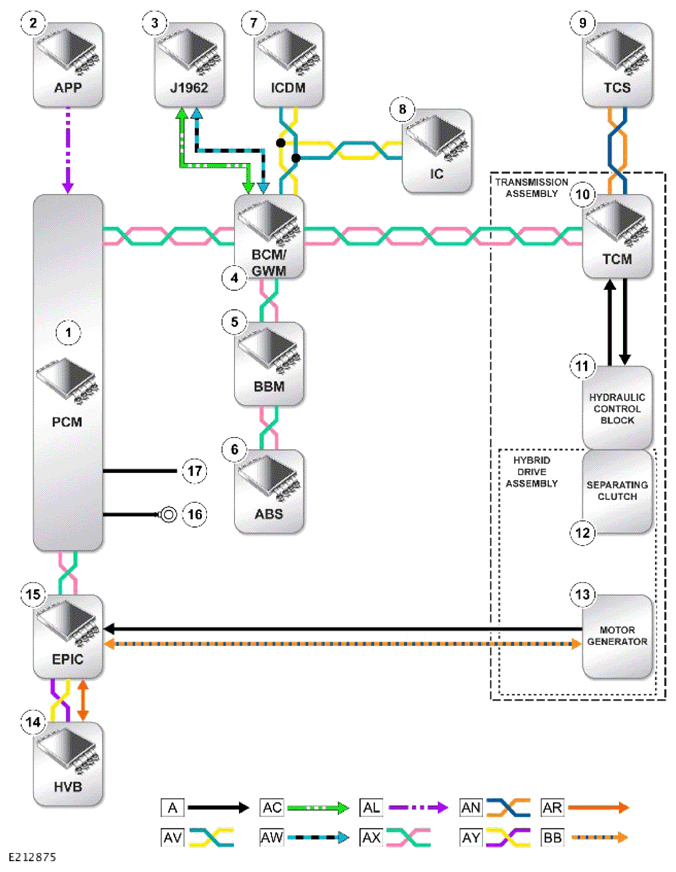

Control Diagram - 1 of 3
WARNING: This page is about a different variant/trim than selected.
A = Hardwired: AC = Diagnostic: AL = Pulse Width Modulation (PWM): AN = High Speed (HS) Controller Area Network (CAN) Powertrain systems bus: AR = High voltage: AV = HS CAN Comfort systems bus: AW = Ethernet: AX = FlexRay: AY = HS CAN power mode zero systems bus: BB = High voltage 3-phase.
| Item | Description |
|---|---|
| 1 | Powertrain Control Module (PCM) |
| 2 | Accelerator Pedal Position (APP) sensor |
| 3 | Diagnostic connector |
| 4 | Body Control Module/Gateway Module (BCM/GWM) assembly |
| 5 | Brake Booster Module (BBM) |
| 6 | Anti-lock Brake System (ABS) control module |
| 7 | Interactive Control Display Module (ICDM) |
| 8 | Instrument Cluster (IC) |
| 9 | Transmission Control Switch (TCS) |
| 10 | Transmission Control Module (TCM) |
| 11 | Mechatronic valve block |
| 12 | Engine disconnect clutch in the hybrid drive assembly |
| 13 | Motor Generator (MG) in the hybrid drive assembly |
| 14 | PHEV battery |
| 15 | Electric Power Inverter Converter (EPIC) |
| 16 | Ground |
| 17 | Power supply |

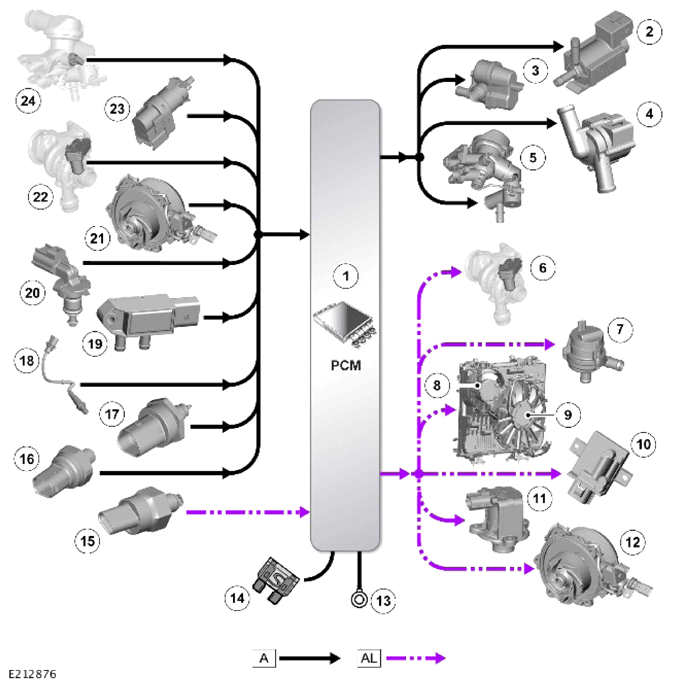

Control Diagram - 2 of 3
A = Hardwired: AC = Diagnostic: AL = Pulse Width Modulation (PWM).
| Item | Description |
|---|---|
| 1 | Powertrain Control Module (PCM) |
| 2 | Active engine mount solenoid |
| 3 | Diagnostic Module Tank Leakage (DMTL) pump (North American Specification (NAS) vehicles only) |
| 4 | Auxiliary coolant pump |
| 5 | Heater element - Electric thermostat |
| 6 | Turbocharger wastegate actuator |
| 7 | Charge air cooler coolant pump |
| 8 | Auxiliary electric cooling fan |
| 9 | Main electric cooling fan |
| 10 | Fuel Pump Driver Module (FPDM) |
| 11 | Compressor Recirculation Valve (CRV) |
| 12 | Variable coolant pump |
| 13 | Ground |
| 14 | Power supply |
| 15 | Oil pressure and temperature sensor |
| 16 | Fuel pressure sensor - Low pressure fuel system |
| 17 | Fuel Rail Pressure and Temperature (FRPT) sensor |
| 18 | Heated Oxygen Sensor (HO2S) (3 off) |
| 19 | Exhaust back-pressure sensor (if equipped) |
| 20 | Engine Coolant Temperature (ECT) sensor - Radiator outlet |
| 21 | Variable coolant pump shroud position sensor |
| 22 | Turbocharger wastegate actuator position signal |
| 23 | Brake pedal switch |
| 24 | ECT sensor - Electric thermostat |

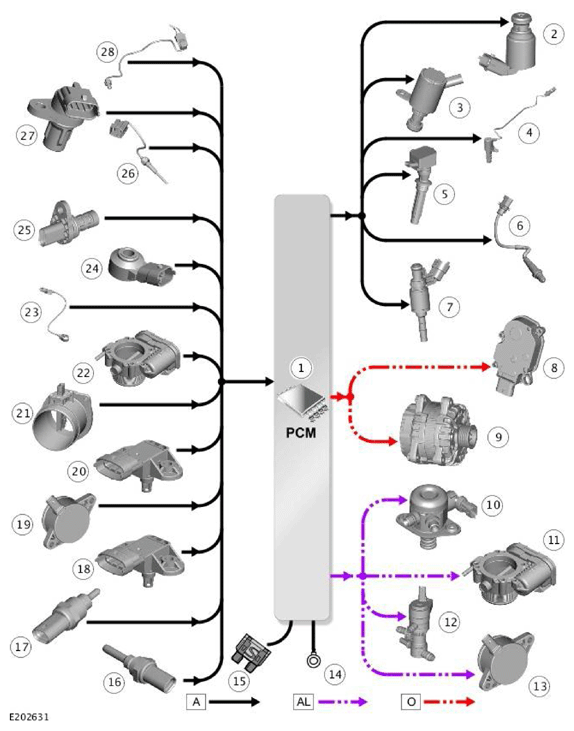

Control Diagram - 3 of 3
A = Hardwired: O = Local Interconnect Network (LIN) bus: AL = Pulse Width Modulation (PWM).
| Item | Description |
|---|---|
| 1 | Powertrain Control Module (PCM) |
| 2 | Ignition coil (4 off) |
| 3 | Oil pump control solenoid |
| 4 | Fuel injector (4 off) |
| 5 | Heated Oxygen Sensor (HO2S) - Heater element (3 off) |
| 6 | Active grille air shutter motor (if equipped) |
| 7 | Piston cooling oil jet solenoid |
| 8 | Continuous Variable Valve Lift (CVVL) solenoid |
| 9 | Fuel metering valve - High Pressure (HP) fuel pump |
| 10 | Electric throttle |
| 11 | Purge valve |
| 12 | Variable Camshaft Timing (VCT) solenoid (2 off) |
| 13 | Ground |
| 14 | Power supply |
| 15 | Cylinder block temperature sensor |
| 16 | CVVL assembly oil temperature sensor |
| 17 | Manifold Absolute Pressure and Temperature (MAPT) sensor |
| 18 | VCT solenoid position signal (2 off) |
| 19 | Charge air pressure and temperature sensor |
| 20 | Mass Air Flow and Temperature (MAFT) sensor |
| 21 | Electric throttle - Throttle Position Sensor (TPS) |
| 22 | Knock sensor - Rear |
| 23 | Knock sensor - Front |
| 24 | Crankshaft Position (CKP) sensor |
| 25 | Cylinder head temperature sensor |
| 26 | Camshaft Position (CMP) sensor (2 off) |
| 27 | Ambient Air Temperature (AAT) sensor |
