Restraints Control Module
WARNING: This page is about a different variant/trim than selected.

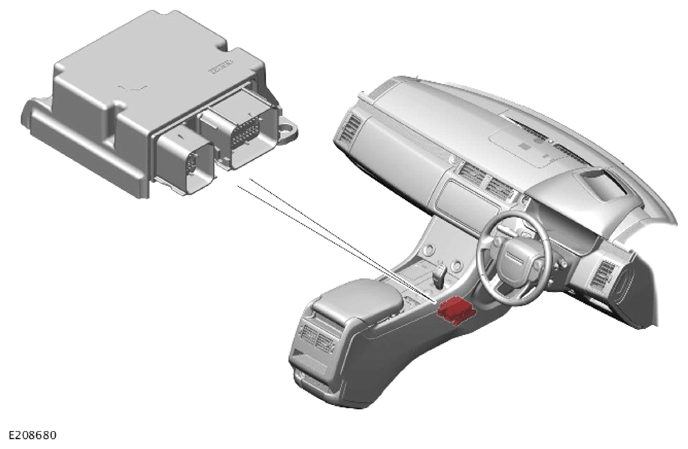

The Restraints Control Module (RCM) is installed on the top of the transmission tunnel, below the floor console.
The main functions of the RCM include:
- Crash detection and recording.
- Airbag and pretensioner firing.
- Self-test and system monitoring, with status indication via the airbag warning indicator and non-volatile storage of fault information.
- Supply of yaw rate and lateral acceleration data for the Anti-lock Brake System (ABS) control module.
For additional information, Refer to: AIRBAG AND SAFETY BELT PRETENSIONER SUPPLEMENTAL RESTRAINT SYSTEM
