Control Diagram

WARNING: This page is about a different variant/trim than selected.

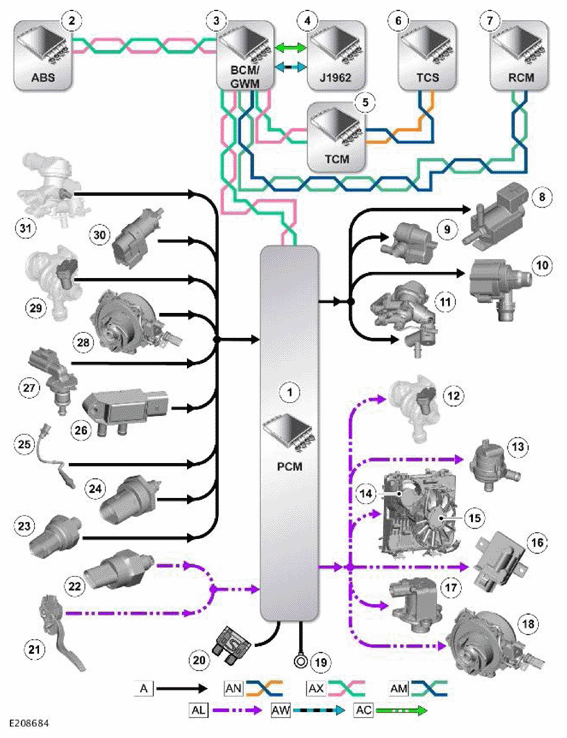

Control Diagram - 1 of 2

G12001038Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

A = Hardwired: AC = Diagnostic: AL = Pulse Width Modulation (PWM): AM = High Speed (HS) Controller Area Network (CAN) chassis systems bus: AN = HS CAN powertrain systems bus: AW = BroadR-Reach® Ethernet: AX = FlexRay bus.

Item Description
1 Powertrain Control Module (PCM)
2 Anti-lock Brake System (ABS) control module
3 Body Control Module/Gateway Module (BCM/GWM) assembly
4 Diagnostic connector
5 Transmission Control Module (TCM)
6 Transmission Control Switch (TCS)
7 Restraints Control Module (RCM)
8 Active engine mount solenoid
9 Diagnostic Module Tank Leakage (DMTL) pump (North American Specification (NAS) vehicles only)
10 Auxiliary coolant pump
11 Heater element - Electric thermostat
12 Turbocharger wastegate actuator
13 Charge air coolant pump
14 Auxiliary electric cooling fan
15 Main electric cooling fan
16 Fuel Pump Driver Module (FPDM)
17 Compressor Recirculation Valve (CRV)
18 Variable coolant pump
19 Ground
20 Power supply
21 Accelerator Pedal Position (APP) sensor
22 Oil pressure and temperature sensor
23 Fuel pressure sensor - Low pressure fuel system
24 Fuel Rail Pressure and Temperature (FRPT) sensor
25 Heated Oxygen Sensor (HO2S) (3 off)
26 Exhaust back-pressure sensor
27 Engine Coolant Temperature (ECT) sensor - Radiator outlet
28 Variable coolant pump shroud position sensor
29 Turbocharger wastegate actuator position signal
30 Brake pedal switch
31 ECT sensor - Electric thermostat

Control Diagram - 2 of 2

G12001039Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

A = Hardwired: O = Local Interconnect Network (LIN) bus: AL = Pulse Width Modulation (PWM).

Item Description
1 Powertrain Control Module (PCM)
2 Ignition coil (4 off)
3 Oil pump control solenoid
4 Fuel injector (4 off)
5 Heated Oxygen Sensor (HO2S) - Heater element (3 off)
6 Active grille air shutter motor (if equipped)
7 Piston cooling oil jet solenoid
8 Continuous Variable Valve Lift (CVVL) solenoid
9 Fuel metering valve - High Pressure (HP) fuel pump
10 Electric throttle
11 Purge valve
12 Variable Camshaft Timing (VCT) solenoid (2 off)
13 Ground
14 Power supply
15 Cylinder block temperature sensor
16 CVVL assembly oil temperature sensor
17 Manifold Absolute Pressure and Temperature (MAPT) sensor
18 VCT solenoid position signal (2 off)
19 Charge air pressure and temperature sensor
20 Mass Air Flow and Temperature (MAFT) sensor
21 Electric throttle - Throttle Position Sensor (TPS)
22 Knock sensor - Rear
23 Knock sensor - Front
24 Crankshaft Position (CKP) sensor
25 Cylinder head temperature sensor
26 Camshaft Position (CMP) sensor (2 off)
27 Ambient Air Temperature (AAT) sensor
