Component Location
WARNING: This page is about a different variant/trim than selected.

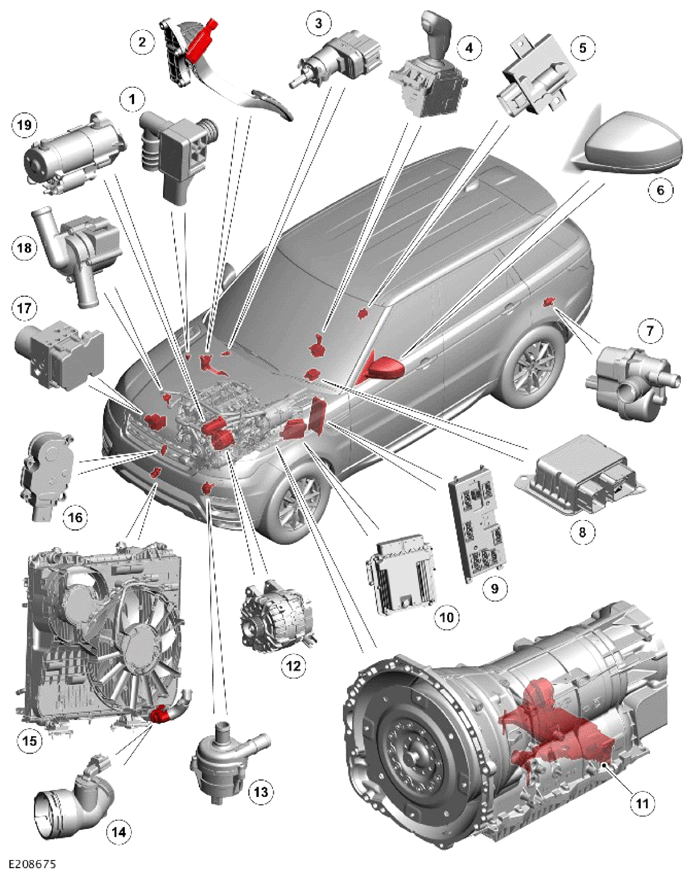

Component Location - 1 of 3
| Item | Description |
|---|---|
| 1 | Active engine mount solenoid |
| 2 | Accelerator Pedal Position (APP) sensor |
| 3 | Brake pedal switch |
| 4 | Transmission Control Switch (TCS) |
| 5 | Fuel Pump Driver Module (FPDM) |
| 6 | Ambient Air Temperature (AAT) sensor |
| 7 | Diagnostic Module Tank Leakage (DMTL) pump (North American Specification (NAS) vehicles only) |
| 8 | Restraints Control Module (RCM) |
| 9 | Body Control Module/Gateway Module (BCM/GWM) assembly |
| 10 | Powertrain Control Module (PCM) |
| 11 | Transmission Control Module (TCM) |
| 12 | Generator |
| 13 | Charge air coolant pump |
| 14 | Engine Coolant Temperature (ECT) sensor - Radiator outlet |
| 15 | Main electric cooling fan and auxiliary electric cooling fan |
| 16 | Active grille air shutter motor (if equipped) |
| 17 | Anti-lock Brake System (ABS) control module |
| 18 | Auxiliary coolant pump |
| 19 | Starter motor |
Component Location - 2 of 3
| Item | Description |
|---|---|
| 1 | Turbocharger wastegate actuator |
| 2 | Camshaft Position (CMP) sensor - Exhaust |
| 3 | CMP sensor - Intake |
| 4 | Cylinder block temperature sensor |
| 5 | Knock sensor - Front |
| 6 | Knock sensor - Rear |
| 7 | Manifold Absolute Pressure and Temperature (MAPT) sensor |
| 8 | Electric throttle |
| 9 | Crankshaft Position (CKP) sensor |
| 10 | Piston cooling oil jet solenoid |
| 11 | Oil pump control solenoid |
| 12 | Mass Air Flow and Temperature (MAFT) sensor |
| 13 | Charge air pressure and temperature sensor |
| 14 | Cylinder head temperature sensor |
| 15 | Variable coolant pump |
| 16 | Compressor Recirculation Valve (CRV) |
| 17 | Oil pressure and temperature sensor |
Component Location - 3 of 3
| Item | Description |
|---|---|
| 1 | Continuous Variable Valve Lift (CVVL) assembly oil temperature sensor |
| 2 | Fuel Rail Pressure and Temperature (FRPT) sensor |
| 3 | Ignition coil (4 off) |
| 4 | Heated Oxygen Sensor (HO2S) - Pre catalyst |
| 5 | High Pressure (HP) fuel pump |
| 6 | Variable Camshaft Timing (VCT) solenoid - Exhaust |
| 7 | HO2S - Mid catalyst |
| 8 | HO2S - Post catalyst (if equipped) |
| 9 | Exhaust back pressure sensor (if equipped) |
| 10 | VCT solenoid - Intake |
| 11 | Heater element - Electric thermostat |
| 12 | Engine Coolant Temperature (ECT) sensor - Electric thermostat |
| 13 | Fuel injector (4 off) |
| 14 | Purge valve |
| 15 | CVVL solenoid (4 off) |
