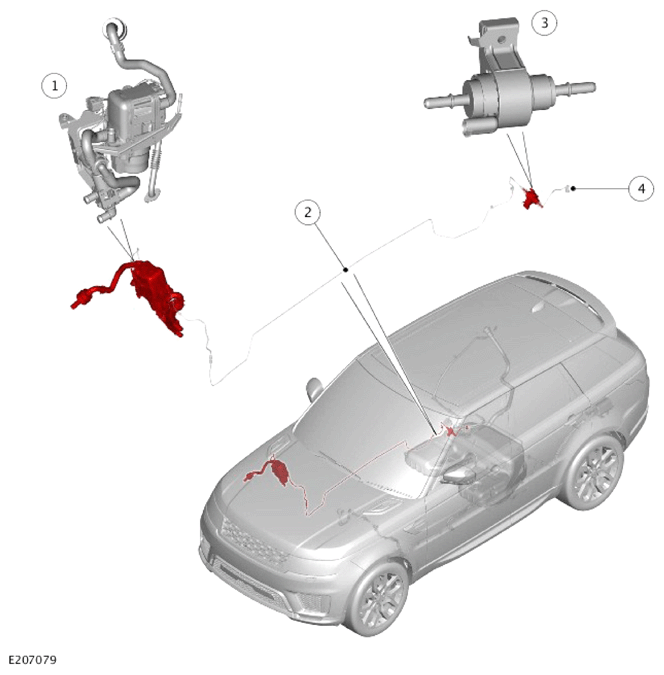

Component Location - 2 Of 2 - Fuel Fired Booster Heater - If Equipped
WARNING: This page is about a different variant/trim than selected.
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|
| ITEM |
DESCRIPTION |
| 1 |
Fuel Fired Booster Heater (FFBH) |
| 2 |
Fuel delivery line - FFBH |
| 3 |
FFBH fuel pump |
| 4 |
Fuel delivery line - Fuel tank to FFBH fuel pump |
