Emergency Park Release (G2320897): Check

WARNING: This page is about a different variant/trim than selected.
WARNING: Chock the wheels and make sure that all personnel are clear of the vehicle before carrying out the following procedure.
NOTE:
  • The ignition must be switched off.
  • This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
  • This procedure contains illustrations showing certain components removed to provide extra clarity.
  • The operating lever should only be moved in the direction as shown.
  1. Remove the engine cover.

    Refer to: ENGINE COVER - INGENIUM I6 3.0L PETROL

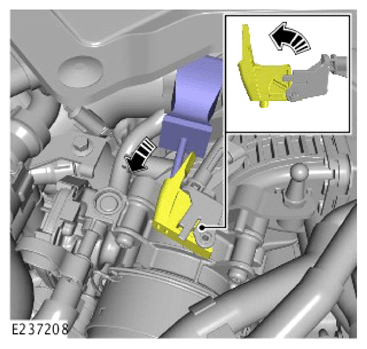

  2. NOTE:
    • Use a suitable tool to move the operating lever as illustrated shown.
    • A flashing "N" symbol appears on the information and message center to signify the Emergency Park Release (EPR) is activated.
    G14067621Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Disengage the park lock.
