Automatic Transmission Fluid Level Check (G2300923): Adjustment
WARNING: This page is about a different variant/trim than selected.
Fill the transmission with the recommended transmission fluid until fluid flows out of the filler hole.
Refer to: SPECIFICATIONS
Allow the transmission fluid to drain from the filler hole until the flow stops.
- WARNING: This step is only required for 3.0L PETROL and 3.0L DIESEL vehicles.CAUTION: This step must be followed, failure to do so will cause damage to the transmission.

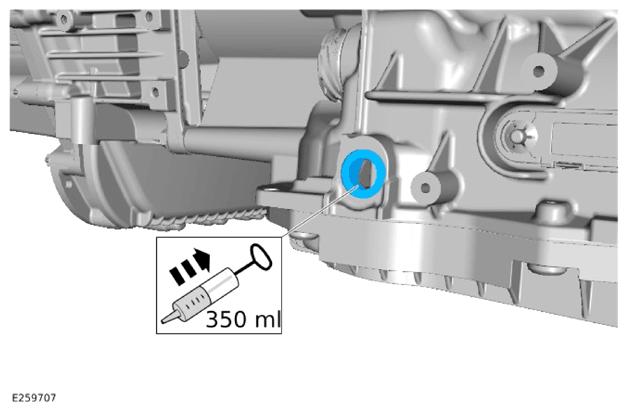

- Use a suitable tool to drain 350ml of transmission fluid from the automatic transmission filler hole.
Use the special tool to install and tighten a new fluid filler plug.
Special Tool(s): 307-452
Renew Part: Transmission fill plug Quantity: 1 .
-
CAUTION: Make sure the transmission fluid filler plug is tightened to the correct specification. Failure to follow this instruction may result in damage to the transmission.
- To make sure the transmission fill plug is torqued to the correct specification. Using the special tool and torque wrench the following calculation steps must be followed.
- Step 1. Multiply 35 Nm by the effective length of the torque wrench (1).
- Step 2. Add the effective length of the special tool (2) to the effective length of the torque wrench (1).
- Step 3. Divide the total of step 1 by the total of step 2.
- Step 4. Set the torque wrench to the figure arrived at in step 3.
- Tighten the transmission fluid fill plug to the torque given by the calculation.
-
- Remove the special tool.
Special Tool(s): 307-452
- Clean the area around the filler plug, wipe away any excess fluid and remove the container.
- Remove the special tool.
-
- Install the rear heatshield.
- Install and tighten the 2 bolts.
Torque : 9 Nm
-
- Install the transmission undershield.
- Install and tighten the 10 bolts.
Torque : 10 Nm
- Lower the vehicle.
- Disconnect the JLR
approved diagnostic equipment.
General Equipment: Jaguar Land Rover approved diagnostic equipment
