Automatic Transmission Fluid Drain and Refill (G2300924): Draining
WARNING: This page is about a different variant/trim than selected.
WARNING:
- Observe due care when draining, as the fluid can be very hot.
- Observe due care when working near a hot exhaust system.
NOTE:
- This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
- This procedure contains illustrations showing certain components removed to provide extra clarity.
- Raise and support the vehicle on a suitable 2 post lift.
Refer to: JACKING AND LIFTING
- Remove the 8 bolts.
- Remove the transmission undershield.
- Remove the 2 bolts.
- Remove the heatshield.
-
NOTE: Be prepared to collect escaping fluids.

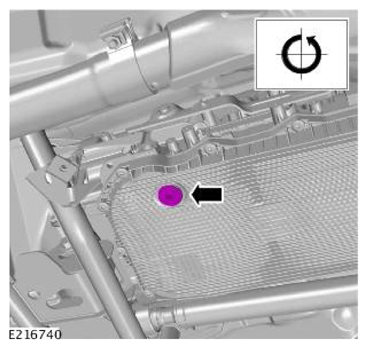

- Remove and discard the transmission fluid drain plug.
- Using a suitable container, drain the transmission fluid.
- Install and tighten a new transmission fluid drain plug.
Renew Part: Transmission fluid drain plug Quantity: 1 .
Torque : 8 Nm
- Install and tighten a new transmission fluid drain plug.
