Vacuum Control Solenoids - Vehicles With Twin Turbocharger Only

WARNING: This page is about a different variant/trim than selected.

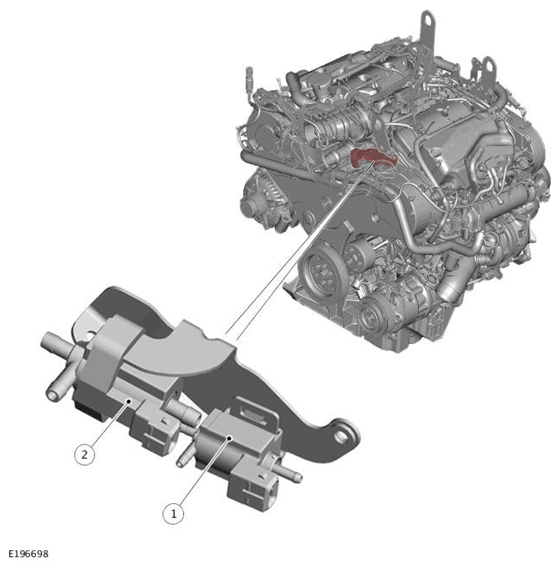

G11699201Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
ITEM DESCRIPTION
1 Charge air solenoid
2 Turbine intake shut-off valve solenoid

The turbine intake shut-off valve and charge air solenoids are installed on a bracket attached to the front of the bank two cylinder head. The Powertrain Control Module (PCM) operates the solenoids to apply and release the vacuum in the vacuum actuators of the turbine intake shut-off valve and the charge air shut-off valve. For additional information, Refer to: TURBOCHARGER
