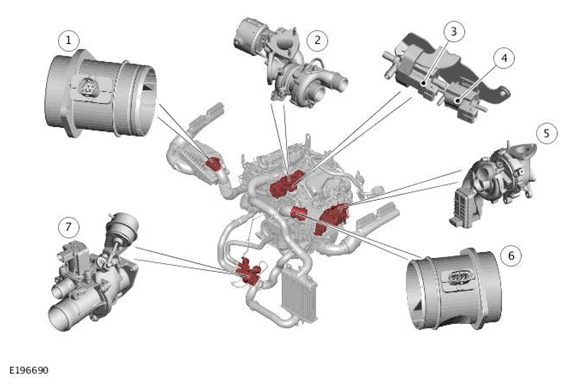

Component Location - 4 Of 9 - Vehicles With Twin Turbocharger
WARNING: This page is about a different variant/trim than selected.
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|
| ITEM |
DESCRIPTION |
| 1 |
Mass Air Flow and Temperature (MAFT) sensor |
| 2 |
Turbocharger - Secondary |
| 3 |
Charge air solenoid |
| 4 |
Turbine intake shut-off valve solenoid |
| 5 |
Variable Geometry Turbocharger (VGT) - Primary |
| 6 |
Mass Air Flow (MAF) sensor |
| 7 |
Charge air intake valve |
