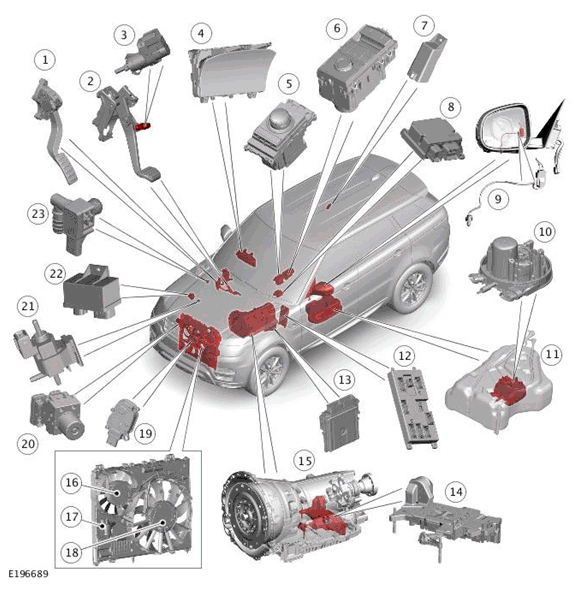

Component Location - 1 Of 9
WARNING: This page is about a different variant/trim than selected.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Accelerator pedal |
| 2 | Brake pedal |
| 3 | Brake pedal switch |
| 4 | Instrument Cluster (IC) |
| 5 | Transmission Control Switch (TCS) |
| 6 | Terrain Response (TR) switchpack |
| 7 | Diesel Exhaust Fluid (DEF) heater control unit |
| 8 | Restraints Control Module (RCM) |
| 9 | Ambient Air Temperature (AAT) sensor |
| 10 | Diesel Exhaust Fluid (DEF) tank module |
| 11 | Diesel Exhaust Fluid (DEF) tank |
| 12 | Body Control Module/Gateway Module assembly (BCM/GWM) assembly |
| 13 | Powertrain Control Module (PCM) |
| 14 | Transmission Control Module (TCM) |
| 15 | Transmission - automatic |
| 16 | Engine cooling fan control module - auxiliary |
| 17 | Charge air coolant pump |
| 18 | Engine cooling fan control module - main |
| 19 | Active grille air shutter motor |
| 20 | Anti-lock Brake System (ABS) control module |
| 21 | Active engine mount solenoid |
| 22 | Glow plug control module |
| 23 | Brake vacuum sensor |
