Body Control Module/Gateway Module
WARNING: This page is about a different variant/trim than selected.

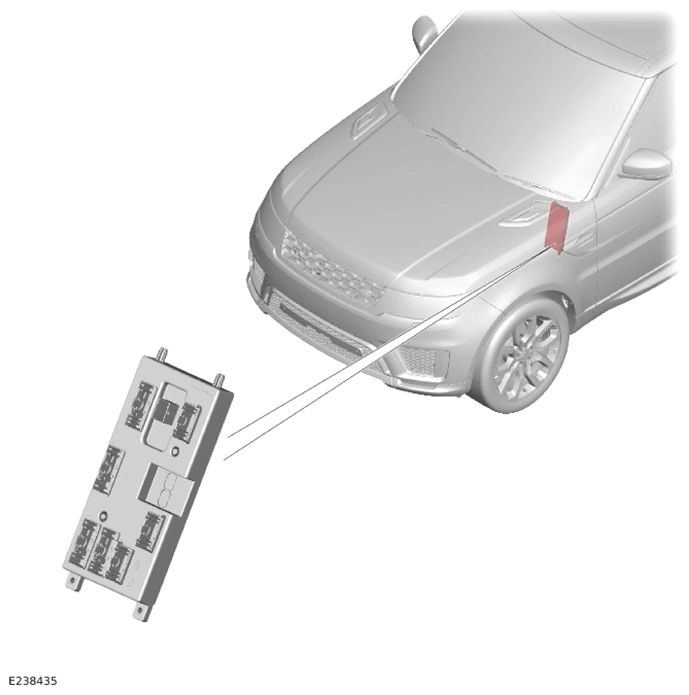

The Body Control Module/Gateway Module (BCM/GWM) is mounted on a bracket, which is attached to the front passenger side of the vehicle.
The BCM/GWM contains software to control the following functions:
- Controls and determines the condition of the startup battery using load management software.
- Controls the output from the Belt Integrated Starter Generator (BISG).
- Controls the charge warning indicator on the Instrument Cluster (IC).
- Controls the quiescent current relay to enable or disable electrical loads if necessary.
- Controls the auto stop/start system using power management to inhibit unnecessary electrical loads.
