Control Diagram
WARNING: This page is about a different variant/trim than selected.

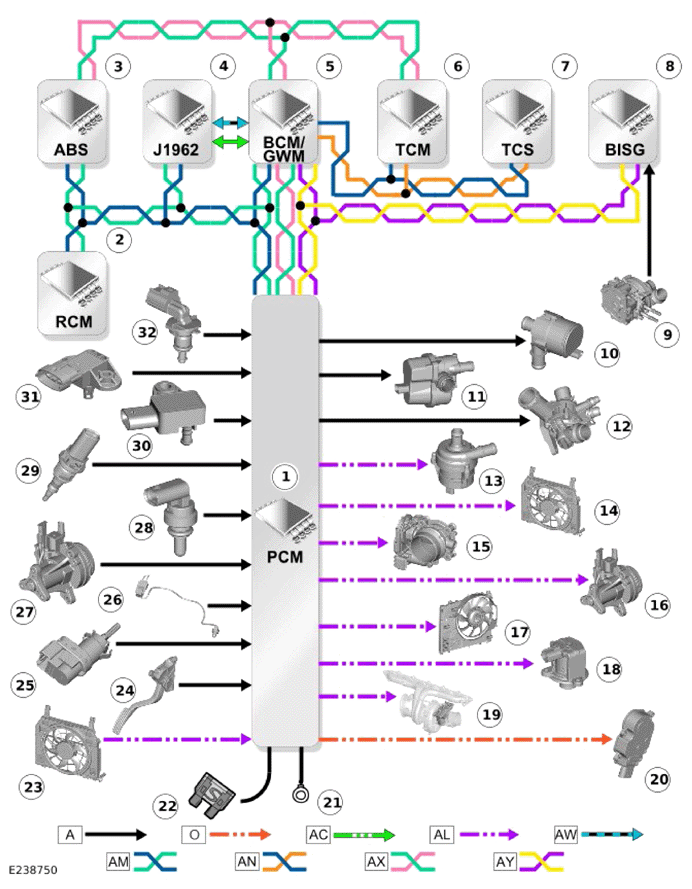

Control Diagram - 1 of 2
A = Hardwired: AC = Diagnostic: AL = Pulse Width Modulation (PWM): AM = High Speed (HS) Controller Area Network (CAN) chassis systems bus: AN = High Speed (HS) Controller Area Network (CAN) powertrain systems bus: AW = BroadR-Reach® Ethernet: AX = FlexRay bus, AY = High Speed (HS) Controller Area Network (CAN) Power Mode Zero bus: O = Local Interconnect Network (LIN) bus.
| Item | Description |
|---|---|
| 1 | Powertrain Control Module (PCM) |
| 2 | Restraints Control Module (RCM) |
| 3 | Anti-lock Brake System (ABS) control module |
| 4 | Diagnostic connector (J1962) |
| 5 | Body Control Module/Gateway Module (BCM/GWM) |
| 6 | Transmission Control Module (TCM) |
| 7 | Transmission Control Switch (TCS) |
| 8 | Belt Integrated Starter Generator (BISG) |
| 9 | Electric supercharger |
| 10 | Auxiliary coolant pump |
| 11 | Diagnostic Module Tank Leakage (DMTL) pump (North American Specification (NAS) market vehicles only) |
| 12 | Electric thermostat - Heater element |
| 13 | Charge air coolant pump |
| 14 | Electric cooling fan |
| 15 | Electric supercharger bypass valve |
| 16 | Variable coolant pump |
| 17 | Viscous cooling fan |
| 18 | Compressor Recirculation Valve (CRV) |
| 19 | Turbocharger wastegate actuator |
| 20 | Active grille air shutter motor (if equipped) |
| 21 | Ground |
| 22 | Power supply |
| 23 | Electric cooling fan |
| 24 | Accelerator Pedal Position (APP) sensor |
| 25 | Brake pedal switch |
| 26 | Ambient Air Temperature (AAT) sensor |
| 27 | Variable coolant pump - Shroud position sensor |
| 28 | Engine Coolant Temperature (ECT) sensor - Cylinder block outlet |
| 29 | Charge air temperature sensor |
| 30 | Charge air pressure sensor |
| 31 | Charge air pressure and temperature sensor |
| 32 | Engine Coolant Temperature (ECT) sensor - Radiator outlet |
Control Diagram - 2 of 2
A = Hardwired: AL = Pulse Width Modulation (PWM).
| Item | Description |
|---|---|
| 1 | Powertrain Control Module (PCM) |
| 2 | Oil pump control solenoid |
| 3 | Fuel injector (quantity 6) |
| 4 | Ignition coil (quantity 6) |
| 5 | Heated Oxygen Sensor (HO2S) (quantity 3) |
| 6 | Active exhaust actuator |
| 7 | Variable Camshaft Timing (VCT) solenoid (quantity 2) |
| 8 | Fuel Pump Driver Module (FPDM) |
| 9 | Electric throttle |
| 10 | Piston cooling oil jet solenoid |
| 11 | Purge valve |
| 12 | High Pressure (HP) fuel pump |
| 13 | Continuous Variable Valve Lift (CVVL) solenoid (quantity 6) |
| 14 | Ground |
| 15 | Power supply |
| 16 | Oil pressure and temperature sensor |
| 17 | Exhaust back-pressure sensor (if equipped) |
| 18 | Mass Air Flow and Temperature (MAFT) sensor |
| 19 | Mass Air Flow (MAF) sensor |
| 20 | CVVL assembly oil temperature sensor |
| 21 | Fuel Rail Pressure and Temperature (FRPT) sensor |
| 22 | Electric throttle - Throttle Position Sensor (TPS) signal |
| 23 | Variable Camshaft Timing (VCT) solenoid position sensor (quantity 2) |
| 24 | Knock sensor (quantity 3) |
| 25 | Cylinder block temperature sensor |
| 26 | Cylinder head temperature sensor |
| 27 | Camshaft Position (CMP) sensor (quantity 2) |
| 28 | Crankshaft Position (CKP) sensor |
| 29 | Manifold Absolute Pressure and Temperature (MAPT) sensor |
| 30 | HO2S (quantity 3) |
| 31 | Purge valve pressure sensor |
