Component Location
WARNING: This page is about a different variant/trim than selected.

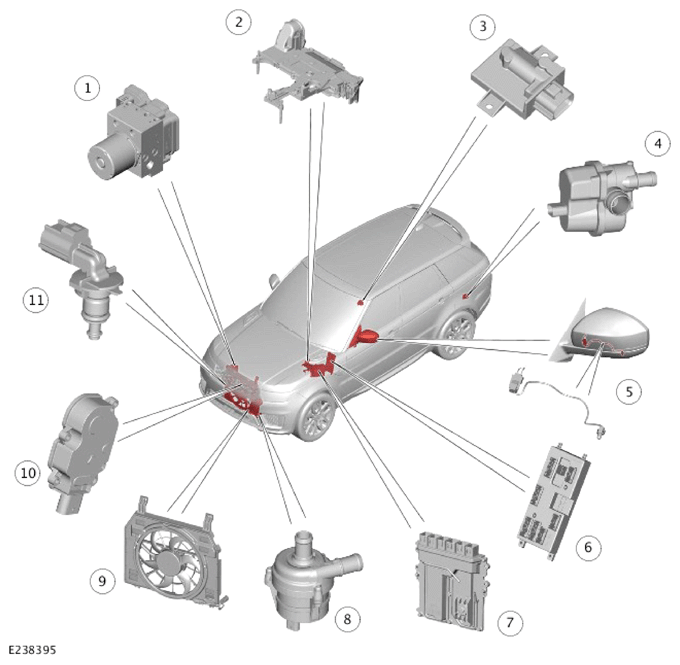

Component Location - 1 of 5
| Item | Description |
|---|---|
| 1 | Anti-lock Brake System (ABS) control module |
| 2 | Transmission Control Module (TCM) |
| 3 | Fuel Pump Driver Module (FPDM) |
| 4 | Diagnostic Module Tank Leakage (DMTL) pump (North American Specification (NAS) market vehicles only) |
| 5 | Ambient Air Temperature (AAT) sensor |
| 6 | Body Control Module/Gateway Module (BCM/GWM) |
| 7 | Powertrain Control Module (PCM) |
| 8 | Charge air coolant pump |
| 9 | Electric cooling fan |
| 10 | Active grille air shutter motor (if equipped) |
| 11 | Engine Coolant Temperature (ECT) sensor - Radiator outlet |
Component Location - 2 of 5
| Item | Description |
|---|---|
| 1 | Camshaft Position (CMP) sensor - Intake |
| 2 | CMP sensor - Exhaust |
| 3 | Fuel injector (quantity 6) |
| 4 | Electric throttle |
| 5 | Charge air pressure and temperature sensor |
| 6 | Purge valve |
| 7 | Purge valve pressure sensor |
| 8 | Cylinder block temperature sensor |
| 9 | Knock sensor - Rear |
| 10 | Crankshaft Position (CKP) sensor |
| 11 | Manifold Absolute Pressure and Temperature (MAPT) sensor |
| 12 | Knock sensor - Center |
| 13 | Engine Coolant Temperature (ECT) sensor - Cylinder block outlet |
| 14 | Electric thermostat - Heater element |
| 15 | Knock sensor - Front |
| 16 | Piston cooling oil jet solenoid |
| 17 | Oil pump control solenoid |
| 18 | Variable coolant pump |
| 19 | Oil pressure and temperature sensor |
| 20 | Cylinder head temperature sensor |
Component Location - 3 of 5
| Item | Description |
|---|---|
| 1 | Compressor Recirculation Valve (CRV) |
| 2 | Continuous Variable Valve Lift (CVVL) solenoid (quantity 6) |
| 3 | CVVL assembly oil temperature sensor |
| 4 | Fuel Rail Pressure and Temperature (FRPT) sensor |
| 5 | Ignition coil (quantity 6) |
| 6 | Charge air pressure sensor |
| 7 | Auxiliary coolant pump |
| 8 | Charge air temperature sensor |
| 9 | Electric supercharger bypass valve |
| 10 | Heated Oxygen Sensor (HO2S) - Pre catalyst |
| 11 | HO2S - Mid catalyst |
| 12 | HO2S - Post catalyst |
| 13 | Exhaust back-pressure sensor (if equipped) |
| 14 | Electric supercharger |
| 15 | Variable Camshaft Timing (VCT) solenoid - Exhaust |
| 16 | VCT solenoid - Intake |
| 17 | High Pressure (HP) fuel pump |

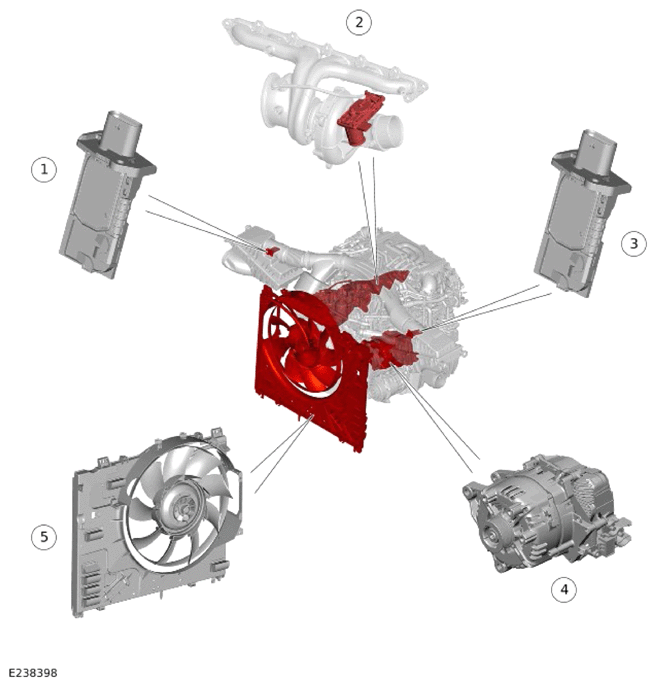

Component Location - 4 of 5
| Item | Description |
|---|---|
| 1 | Mass Air Flow and Temperature (MAFT) sensor |
| 2 | Turbocharger wastegate actuator |
| 3 | Mass Air Flow (MAF) sensor |
| 4 | Belt Integrated Starter Generator (BISG) |
| 5 | Viscous cooling fan |

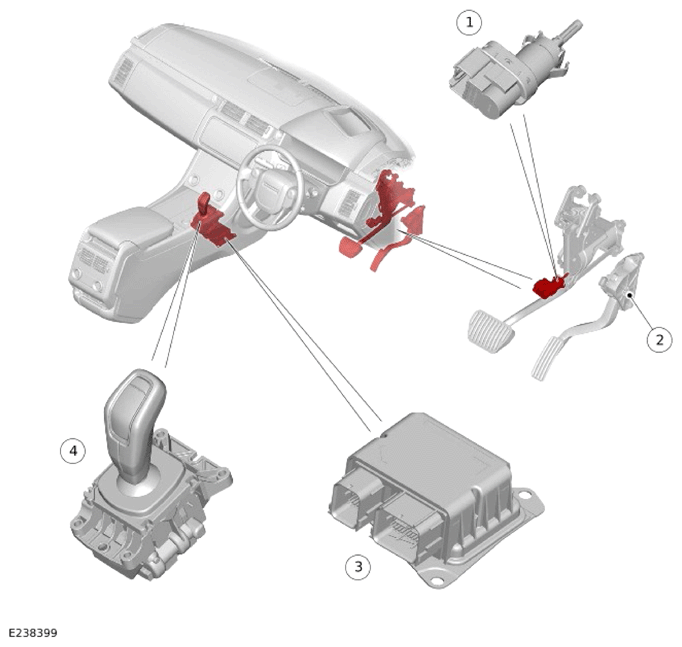

Component Location - 5 of 5
| Item | Description |
|---|---|
| 1 | Brake pedal switch |
| 2 | Accelerator Pedal Position (APP) sensor |
| 3 | Restraints Control Module (RCM) |
| 4 | Transmission Control Switch (TCS) |
